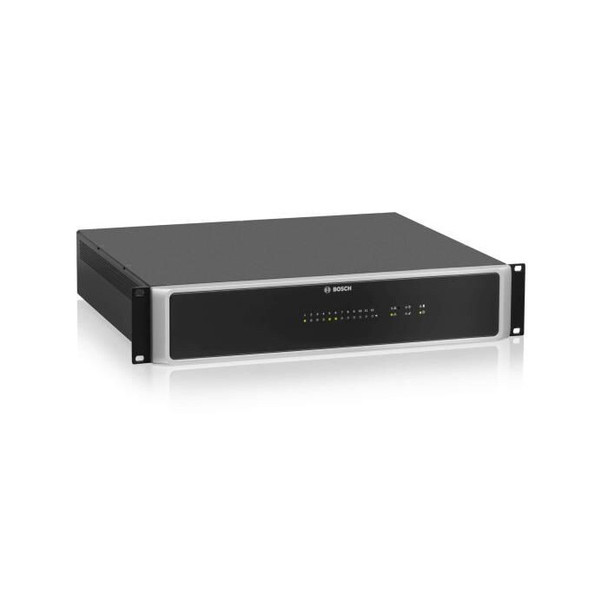

Bosch PVA-4CR12 Standalone Rack-mountable Controller

Bosch PVA-4CR12 Standalone Rack-mountable Controller

The PVA-4CR12 controller is the central paging manager for the PAVIRO system. Eight local audio inputs can be switched to four audio outputs. A two channel message manager is integrated. The controller provides all the audio processing, supervision and control functions for a complete PAVIRO system. A single controller supports up to 100 priorities, 16 call stations and 492 paging zones; up to 8000 fault, warning and event conditions can be logged. The controller is equipped with 12 zones, 18 GPIs and 19 GPOs. One controller can handle up to 2000 W loudspeaker load. Additional zones and power can be added by using up to 20 external routers and 40 amplifiers with each 2 x 500 W. The zone indicator lights on the front indicate the current status of every zone:

• Green: Zone in use for non-emergency purpose
• Red: Zone in use for emergency purpose
• Yellow: Zone fault detected
• Off: Zone in idle condition

Key Features:

• Public address and emergency sound system control unit
• Control and routing of 4 simultaneous audio channels
• One controller supports 12 zones, expandable up-to 492 zones with 24-zone routers
• Four controllers can be networked using OMNEO interface module
• EN 54-16 system certification
