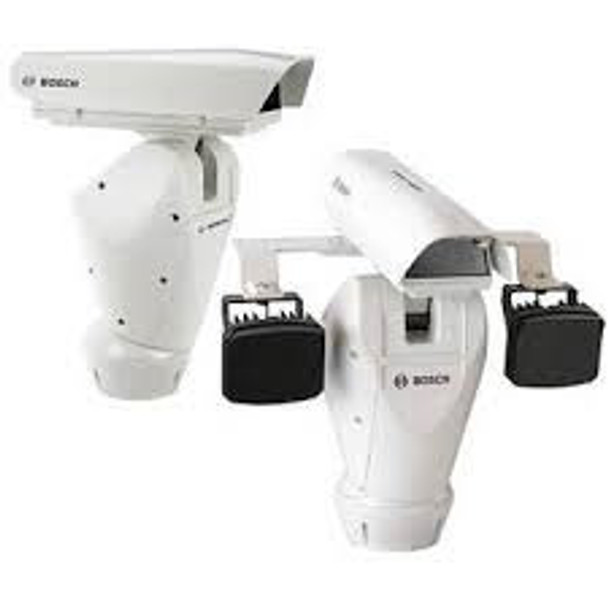

Bosch UPH-C610N-L8120 Camera/Lens Assembly

Bosch UPH-C610N-L8120 Camera/Lens Assembly

The Bosch UPH-C610N-L8120 Camera/Lens Assembly for High-speed Positioning System includes a LTC 0610 DinionXF color camera and an LTC 3293/30 zoom lens. With a 1/2” CCD imager, the camera captures clear images at a resolution up to 540TVL. The 15-bit digital signal processing increases sensitivity and XF Dynamic expands dynamic range. In addition to standard modes, the camera has 3 programmable modes. Switching between modes is easy using Bilinx or the external alarm input. Via the coaxial cable, Bilinx technology allows settings changes, status checking and firmware updating from anywhere. The technology uses the standard video cable to transmit alarm and status messages, upgrading the general performance of the camera and reducing the service/installation time. The Auto Black switch caps the lens to prohibit all light and automatically sets the camera’s circuitry to produce a standard black reference level. If the object being captured is in front of a bright light source, the Back Light Compensation function adjusts video gain to correct the exposure. The motion detection feature enables the camera to display an alarm in the video signal, close the output relay or transmit an alarm message via Bilinx. The global scene change detector minimizes false alarms, which can be caused by unexpected changes in lighting conditions. Sensitivity is improved by the SensUp Dynamic feature, which increases the integration time up to 10 times on the CCD, providing distinct images in low lighting conditions. The NightSense feature increases sensitivity by 9dB in monochrome mode and can be automatically activated in low light situations, or remotely using Bilinx. With Default Shutter, the camera can capture high speed moving objects when adequate light is available, and the shutter speed returns to default value under reduced light conditions to maintain sensitivity. LensWizard enables the camera to detect lens type automatically and helps maintain accurate lens focus. The LTC 3293/30 zoom lens (C-mount) has a focal length range of 8-120 mm and an iris control range of F1.6-1000. It supports 1/2” image format and enables the camera to deliver sharp images. The lens comes with pre-position and manual override settings. With the multi-language On-Screen Display power and alarm connections, and a built-in test pattern generator, the camera is easy to install. The UPH-C610N-L8120 is suitable for usage in tunnels, car parks, prisons, ports, military facilities, casinos, and gambling centers.

Bosch UPH-C610N-L8120 Features:

• 1. LTC 0610 DinionXF Color Camera&
• 1/2” CCD imager
• Resolution up to 540TVL
• 20-bit digital signal processing increases sensitivity and XF-Dynamic extends the dynamic range
• Bilinx Technology reduces set-up and installation time, which results in error-free set-up and adjustment
• Offers clear images even in low light conditions by increasing the IR sensitivity
• Usual applications are supported by 6 pre-programmed modes that can also be programmed for individual requirements
• Default Shutter enables the Dinion Camera to capture high speed moving objects when sufficient light is available
• SensUp Dynamic feature improves the sensitivity by increasing the integration time up to 10 times on the CCD, providing clear images in lighting conditions as low as 0.2 lux
• On motion detection enables the camera to display an alarm in the video signal, closes the output relay or transmits an alarm message via Bilinx
• Global scene change detector reduces false alarms that can be caused by sudden changes in lighting condition - for instance, switching on or off the indoor or security lighting
• Auto Black switch caps the lens to exclude all light and automatically sets the camera’s circuitry to produce a standard black reference level
• SmartBLC feature adjusts video gain to correct the exposure when the object being captured is in front of a bright light source
• Wide Dynamic Range provides clear images even under varying levels of intensity - where there are both very bright and very dark areas simultaneously in the field of view of the camera
• Multi-language On-screen Display, power and alarm connections, and a built-in test pattern generator, makes it easy to install this camera
• LensWizard detects lens type automatically and helps maintain accurate lens focus
• Suitable for applications such as tunnels, car parks, prisons, ports, military facilities, casinos, and gambling centers
• 2. LTC 3293/30 Zoom Lens&
• Focal length of 8-120 mm
• Pre-position and manual override
• Supports 1/2” image format
• Enables the camera to deliver crisp picture quality
• Zoom lens is of C-mount type
• 4-pin standard plug
• Iris control range - F1.6-1000
