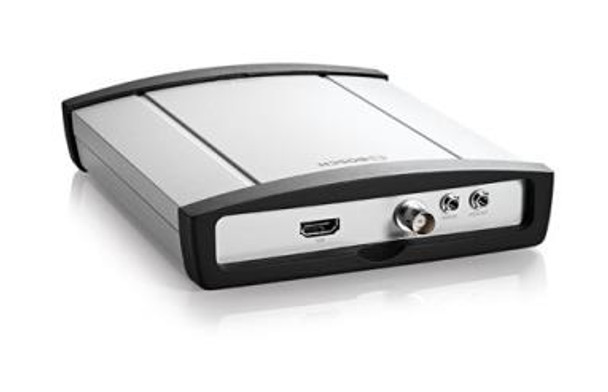

Bosch VJD-3000 VIDEOJET Decoder 3000 1 Channel Decoder - H264, Analog and HDMI outputs

Brand:
Part Number: VJD-3000
Write a Review
Replacement of: VIP-XDA
  • Bosch VJD-3000 VIDEOJET Decoder 3000
  • Bosch VJD-3000 VIDEOJET Decoder 3000
  • Bosch VJD-3000 VIDEOJET Decoder 3000
  • Bosch VJD-3000 VIDEOJET Decoder 3000 Diagram
  • 3 Years Limited Manufacturer Warranty
$763.00
$700.16
OR
Free shipping over $300 Free Shipping
Technical Support Technical Support
3 Year Warranty 3 Year Warranty

Description

Bosch VJD-3000 VIDEOJET Decoder 3000 1 Channel Decoder

Bosch VJD-3000 displays H.264 encoded video at up to 60 images per second from PAL, NTSC, or HD sources over IP networks. Establish the video connections automatically from the camera, encoder, decoder, or Bosch's comprehensive video management system.

Bosch VJD-3000 VIDEOJET decoder 3000 is capable of decoding a single HD video stream, or up to four SD video streams at the same time in quad-mode. Control the viewing mode remotely via a management system. It can drive an HD monitor via HDMI directly, thus is ideally suited for applications like flat-screen monitor walls. Alternatively, it can connect to an analogue monitor using its composite video BNC output.

Bosch VJD-3000 VIDEOJET decoder 3000 provides one-channel bidirectional audio communication in parallel to video. Ultra-compact in size, VIDEOJET decoder 3000 is perfect for any application that depends on space saving solutions.

Parts included in Bosch VJD-3000 VIDEOJET Decoder 3000 Package:
  • 1 x VIDEOJET decoder 3000
  • 1 x Quick Installation Guide
  • 1 x Safety Hints document
  • 1 x Power supply unit with 3 primary adapters (EU, US, UK)
  • 1 x Set of spring clamp contact connectors, wall mount and desktop accessories

Bosch VJD-3000 directly drives an HD display device connected to its digital HDMI output. It supports the following video modes:

  • PAL, 704 x 576i @ 50 Hz
  • NTSC, 704 x 480i @ 59.97 Hz
  • 960H25, 960 x 576i @ 50 Hz
  • 960H30, 960 x 480i @ 59.97 Hz
  • 720p50, 1280 x 720p @ 50 Hz
  • 720p60, 1280 x 720p @ 60 Hz
  • 1080i50, 1920 x 1080i @ 50 Hz
  • 1080i60, 1920 x 1080i @ 60 Hz
  • 1080p25, 1920 x 1080p @ 25 Hz
  • 1080p30, 1920 x 1080p @ 30 Hz

Decoding performance

Encoding

Streams

Resolution

Max. bit rate

H.264 HD

1

1080p30

10 Mbps

H.264 HD

1

1080i60

10 Mbps

H.264 HD

1

720p60

10 Mbps

H.264 SD

4

960H/4CIF/ 432p

6 Mbps

This product is also associated with:
Bosch Security Video Encoders and Decoders

View AllClose

Additional Information

4K Support:
Accessory Type:
Video Decoder
NDAA Compliant:
Warranty:
3-year Manufacturer Warranty
ePoE Technology:
