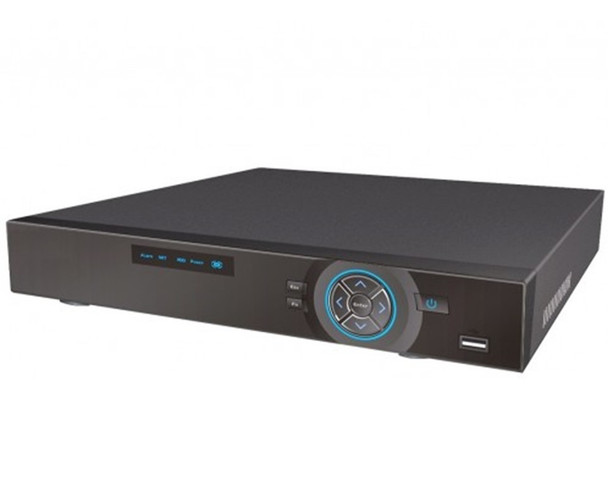

Dahua DH-HCVR5108H-S3 8 Channel HD-CVI Digital Video Recorder
The DH Vision DH-HCVR5108H-S3 HD-CVI DVR is a hybrid DVR system intended to be used with old analog channels, current HD-CVI channels, and also supports up to two channels for IP cameras. DH Vision's tribrid development allows for users to continue using old cameras while simultaneously upgrading to newer ones. This DVR, for example, lets you plug in older analog cameras alongside HD-CCTV cameras.
This DVR comes with 8channels total as well as 2 IP-compatible channels. H.264/G.711 video/audio compression helps keeps file sizes manageable. The 1 SATA port can support up to 4TB of storage. Record rates go up to 30fps at 720p, or 15fps at 1080p. DVR playback functionality includes rewind, fastforward, slow and fast-motion, as well as digital zooming. Viewer total goes up to 128 users.
Tribrid rules: 8ch Analog/HD-CVI and 4ch IP, or 12ch total of IP
Key Features:
- 8 Channels, Analog/HD-CVI
- 1 SATA port, up to 4TB
- Supports 2channels for IP
- H.264/G.711 Video/Audio Compression
- Record rate of 1080p @ 15fps
- Record rate of 720p @ 30fps
- Audio 1ch in, 1ch out
- Display interface, 1 HDMI/1 VGA
- Resolution up to 1920x1080
- Record intervals, 1-60mins
- Pre-record, 1-30s
- Post-record, 10-300s
- Playback functions include rewind, slow/fast motion, digital zoom
- 2 USB ports, USB 2.0
- 1 port for PTZ control
- RJ-45 Port with Network Functionality
- 128 max users
- Power consumption, 10W
- OSD Menu
