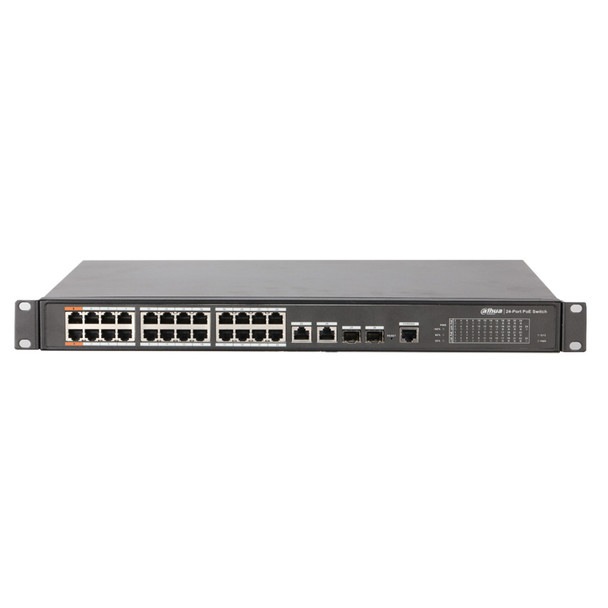

Dahua DH-PFS4226-24ET-360 24-Port PoE Switch
Description
Dahua DH-PFS4226-24ET-360 24-Port PoE Switch
DH-PFS4226-24ET-360 is a dedicated PoE switch for security industry, which is different from general switch. PoE management function realizes power control and real-time port consumption display. It's widely used in surveillance project. DH-PFS4226-24ET-360 also provides 250 meters long distance PoE transmission and 'orange port' for Hi-PoE powered device.
Key Features:
- Layer 2 management PoE switch
- PoE budget: 360W
- Support PoE, PoE+, Hi-PoE
- 'Orange port' support Hi-PoE, can be used with the PoE extender (PFT1300)
- 250 meters long distance PoE transmission
- PoE management, PoE Setting/Event Statistics/Green PoE
- Search and upgrade via ConfigTool
- Support Web management
- High lightning protection design
- Non-blocking video transmission
Downloads
Datasheet
Dahua-DH-PFS4226-24ET-360-Datasheet-A1
Specifications
Ethernet Ports | Two (2) 10/100/1000 Base-T (Combo Port) |
Two (2) 1000 Base-X (Combo Port) | |
24 x 10/100 Base-T Ports (PoE Power Supply) | |
PoE Power Consumption | Maximum per Port: ≤ 30 W |
Total Power Consumption: ≤ 360 W | |
PoE Protocol | PoE (IEEE802.3af), PoE+ (IEEE802.3at), Hi-PoE |
Switching Capacity | 8.8 Gbps |
Packet Forwarding Rate | 6.55 Mpps |
Power Requirements | 100 VAC to 240 VAC |
Working Temperature | -10° C to 55° C (14° F to 131° F) |
Application Humidity | 10% to 90% |
Lightning Protection | Common Mode: 4 KV |
Differential Mode: 2 KV | |
Dimensions (W x D x H) | 440.0 mm x 300.0 mm x 44.0 mm |
(17.32 in. x 11.81 in. x 1.73 in.) | |
Weight | 3.51 kg (7.74 lb) |
System | Username/Password: admin/admin |
IP Address: 192.168.1.110/24 | |
PoE Budget | 360 W |
MAC Table Size | 4K |
VLAN | 802.1Q Standard VLAN |
Spanning Tree | STP, RTSP |
Port Aggregation | Static Link Aggregation, LACP Protocol |
Port Mirroring | Many-to-One Port Mirroring |
DHCP | DHCP-client Support |
Long Distance Mode | Power and Data Transmission Distance up to 250 m (820.21 ft) |
Flow Control | Half-duplex based on back pressure type control |
Full Duplex based on PAUSE Frame | |
Security Features | IP+MAC Binding, based on port |
IEEE802.1x Port Authentication | |
System Maintenance | One-key Recovery, Updated Packet Upload, System Log |
QoS | High and Low Priority, WRR, 802.1P, DSCP, |
Supports priority according to protocol | |
Network Management | Web (HTTP and HTTPS Protocols), SNMP V1/V2C/V3 |
PoE Management | PoE Setting (real-time port consumption) |
PoE Event Statistics | |
Green PoE |
