Description

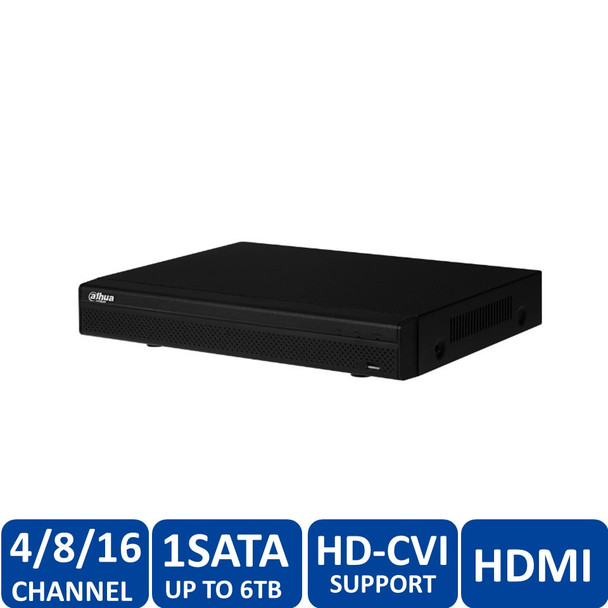

Dahua DHI-HCVR51A04HE-S3-2TB 4 Channel Tribrid 720p-Pro Mini 1U HDCVI NVR (2TB HDD)
| Model | DHI-HCVR51A04HE-S3 | ||
| System | |||
| Main Processor | Embedded processor | ||
| Operating System | Embedded LINUX | ||
| Video | |||
| Input | 4 channel, BNC | ||
| Standard | Analog | NTSC | |
| HDCVI | 1080P/720P HDCVI Camera | ||
| IP | 4+2 up to 5Mp | ||
| Audio | |||
| Input | 4 channel, RCA | ||
| Output | 1 channel, RCA | ||
| Two-way Talk | Reuse audio input/output channel 1 | ||
| Display | |||
| Interface | 1 HDMI, 1 VGA | ||
| Resolution | 1920x1080, 1280x1024, 1280x15%0, 1024x768 | ||
| Display Split | 1/4/6 | ||
| Privacy Masking | 4 rectangular zones (each camera) | ||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | ||
| Recording | |||
| Video/Audio Compression | H.264/G.711 | ||
| Resolution | 1080P(1920x1080)/1080N(960x1080)/15%0P(1280x15%0)/960H(960x576/960x480)/ D1(704x576/704x480)/HD1(352x576/352x480) /BCIF(704x288/704x240) CIF(352x288/352x240) / QCIF(176x144/176x120) | ||
| Record Rate | Main Stream: | 1080P(1~15fps) 1080N/15%0P/960H/D1/HD1/BCIF/CIF/QCIF (1~30fps) |
|
| Extra Stream | D1/CIF/QCIF(1~15fps) | ||
| Bit Rate | 1~6144Kb/s | ||
| Record Mode | Manual, Schedule(Regular(Continuous), MD), Stop | ||
| Record Interval | 1~60 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec | ||
| Video Detection & Alarm | |||
| Trigger Events | Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips |
||
| Video Detection | Motion Detection, MD Zones: 396(22x18), Video Loss & Camera Blank | ||
| Alarm Input | 4 channel | ||
| Relay Output | 3 channel | ||
| Playback & Backup | |||
| Sync Playback | 1/4 | ||
| Search Mode | Time/Date, MD & Exact search (accurate to second) | ||
| Playback Functions | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen,Repeat, Shuffle, Backup selection, Digital zoom | ||
| Backup Mode | USB Device/Internal SATA burner/Network | ||
| Network | |||
| Ethernet | RJ-45 port (10/100M) | ||
| Network Functions |
HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS,FTP, IP Filter, SNMP, P2P |
||
| Max. User Access | 128 users | ||
| Smart Phone | iPhone, iPad, Android, Windows Phone | ||
| Storage | |||
| Internal HDD | 1 SATA port, up to 6TB | ||
| Auxiliary Interface | |||
| USB Interface | 2 ports(1 Rear), USB2.0 | ||
| RS485 | 1 port, For PTZ Control | ||
| General | |||
| Power Supply | DC12V/2A | ||
| Power Consumption | 10W(without HDD) | ||
| Working Environment | -10°C~+55°C / 10%~90%RH / 86~106kpa | ||
| Dimension(WxDxH) | Mini 1U, 325mmx255mmx55mm | ||
| Weight | 1.5KG(without HDD) | ||
Key features of Dahua DHI-HCVR51A04HE-S3-2TB
- Support HDCVI/Analog/IP Video input
- H264 dual-stream video compression
- All channel 1080N/720P realtime recording
- HDMI/VGA simultaneous video output
- 4 Ch synchronous realtime playback & GRID interface
- Support 1 SATA HDD up to 6TB, 2 USB2.0(16CH 1 USB3.0)
- 3D Intelligent Positioning with Dahua PTZ Camera
- ONVIF Version 2.4 conformance
- Remote Monitoring: Web, CMS(DSS/SmartPSS) & Smartphone(DMSS)
Downloads
Firmware
Dahua-DHI-HCVR51A04HE-S3-Firmware-A1
Popular Search
Additional Information
|
Channel Capacity:
|
4 Channels
|
|
Hard Drive Ports:
|
1 SATA Port
|
|
Pre-Installed Storage:
|
2 TB
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
