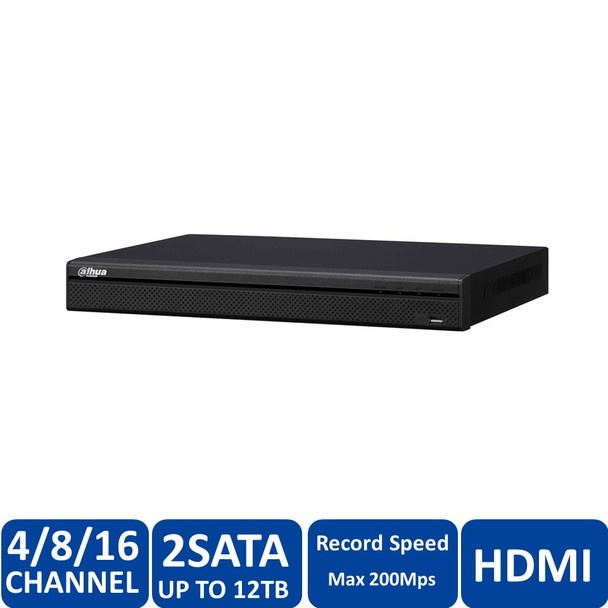

Dahua DHI-NVR42A16-16P 16 Channel 1U 16 PoE Network Video Recorder - 16 channel, HDMI/VGA, 720p/10160p, 2 SATA up to 12TB

Hover over an image to enlarge

In stock
Rack Unit (U):1U
Max. Recording Resolution:5 MP
Max. Incoming Bandwidth:200 Mbps
Number of PoE Ports:16 PoE Ports
Number of camera channels:16 camera channels
Video Output:HDMI & VGA output
Max. Storage Capacity:8 TB
Compression:Smart H.264+ / MJPEG
Hard Drive Ports:2 SATA Ports

Add to buy list Add to comparison list
  • Shipping Policy
  • Return Policy
  • Ask Question

Dahua DHI-NVR42A16-16P 16 Channel 1U 16 PoE Network Video Recorder - 16 channel, HDMI/VGA, 720p/10160p, 2 SATA up to 12TB

Dahua's DHI-NVR42A16-16P is one of the NVRs which have most reasonable price and best quality for IP video surveillance applications. The NVR provides up to 5MP resolution. It supports 16 channels of IP camera inputs, 16 local live-view channels, and 16 playback channels. Additionally, the NVR features a mouse shortcut operation menu, remote management and control, centre storage, edge storage, and back-up storage.

Designed as a low-cost, easy installation, this NVR is ideal for a wide range of applications such as public safety, water conservancy, transportation, city centers, education, and financial institutions.The NVR is compatible with numerous third-party devices making it the perfect solution for surveillance systems with or without a video management system (VMS). Its open architecture supports multiuser access and is compatible with ONVIF 2.4, enabling interoperability when combined with IP cameras.

Storage Options:

  • Dahua DHI-NVR42A16-16P with No Storage
  • Dahua DHI-NVR42A16-16P-1TB includes 1 TB Storage
  • Dahua DHI-NVR42A16-16P-2TB includes 2 TB Storage
  • Dahua DHI-NVR42A16-16P-3TB includes 3 TB Storage
  • Dahua DHI-NVR42A16-16P-4TB includes 4 TB Storage
  • Dahua DHI-NVR42A16-16P-6TB includes 6 TB Storage

Key features of Dahua DHI-NVR42A16-16P

  • Dual-core Embedded Processor
  • Up to 16 IP Camera Inputs
  • Smart H.264+ / MJPEG Dual Codec Decoding
  • Max 200Mbps Incoming Bandwidth
  • Up to 5MP Resolution for Preview and Playback
  • 16 Channel Synchronous Realtime Playback
  • 2 SATA HDDs, Up to 12TB
  • IPC UPnP, 4PoE Ports
  • 3D Intelligent Positioning with Dahua PTZ Camera
Main Processor Dual-core embedded processor
Operating System Embedded LINUX
Video & Audio
IP Camera Input 16 channel
Two-way Talk 1 channel Input, 1 channel Output,RCA
Interface 1 HDMI, 1 VGA
Resolution 1920×1080, 1280×1024, 1280×720, 1024×768
Display Split 1/4/8/9/16
OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording
Compression Smart H.264+ / MJPEG

5MP (2560×1920)/4MP (2560×1440)/3MP (2048×1536)/1080p (1920×1080)/

720p (1280×720)/D1 (704×576/704×480)
Record Rate 200Mbps
Bit Rate 48~ 8192kbps
Record Mode Manual, Schedule (Regular (Continuous), MD, Alarm), Stop
RecordInterval 1~120 min (default: 60 min), Pre-record: 1~30 sec, Post-record: 10~300 sec
Video Detection & Alarm
Trigger Events Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips
Video Detection Motion Detection, MDZones: 396 (22×18), Video Loss & Camera Blank
Alarm Input 4 channel
Relay Output 2 channel
Playback & Backup
Sync Playback 1/4/8/16
Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom
Backup Mode USB Device/Network/Internal SATA burner
Ethernet 1 RJ-45 port (10/100/1000Mbps)
PoE 16 ports (IEEE802.3at/af)
Network Function HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search (Support Dahua IP camera, DVR, NVS)
Max. UserAccess 128 users
Smart Phone iPhone, iPad, Android
Internal HDD 2 SATA ports, up to 8TB
Auxiliary Interface
USB 2 ports (1 Rear USB 3.0, 1 Front USB 2.0)
RS232 1 port, For PC communication & Keyboard
Power Supply Single, AC 100~240V, 47/63 Hz
Power Consumption NVR: <30W (without HDD)
PoE: Max 25.5W for single port, 130W in total
Working Environment -10°C~+55°C/ 10%~90%RH / 86~106kpa
1U, 375mm×327mm×53mm
Weight 2.5KG (without HDD)

Dahua DHI-NVR42A16-16P (Dahua-DHI-NVR42A16-16P-A1.pdf, 4,078 Kb) [Download]
