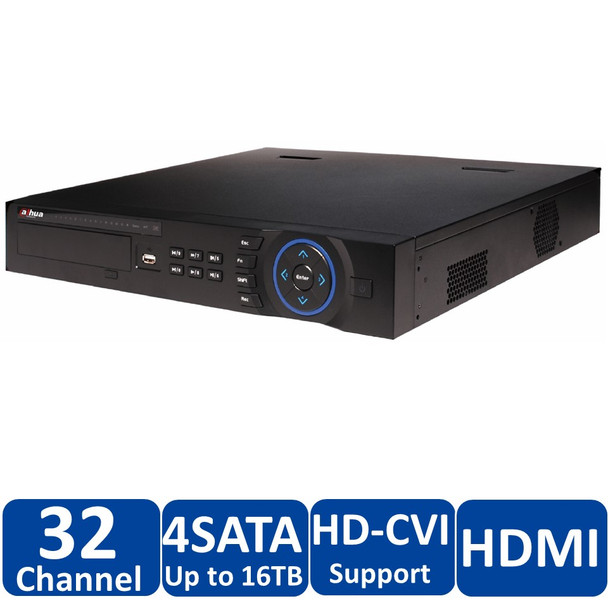

Dahua HCVR5432L 32 Channel HD-CVI DVR Digital Video Recorder
The Dahua HCVR5432L HD-CVI DVR is a hybrid DVR system intended to be used with old analog channels, current HD-CVI channels, and also supports IP cameras. Dahua's Tribrid development allows for users to continue using old cameras while simultaneously upgrading to newer ones. This DVR, for example, lets you plug in older analog cameras alongside HD-CCTV cameras.
This DVR comes with 32 channels total that are also IP-compatible. H.264/G.711 video/audio compression helps keeps file sizes manageable. The 4 SATA ports can support up to 16TB of storage. Record rates go up to 30fps at 720p, or 15fps at 1080p. DVR playback functionality includes rewind, fastforward, slow and fast-motion, as well as digital zooming. Viewer total goes up to 128 users.
Key Features of the Dahua HCVR5432L
- 32 Channels, Analog/HD-CVI
- Supports IP Cameras
- 4 SATA ports, up to 16TB
- 1 external eSATA port
- H.264/G.711 Video/Audio Compression
- Real-time Playback
- Record rate of 1080p @ 15fps
- Record rate of 720p @ 30fps
- Audio 4ch BNC in, 1 out
- Display interface, 2 HDMI/1 VGA/1 TV
- Resolution up to 1920x1080
- Record intervals, 1-60mins
- Pre-record, 1-30s
- Post-record, 10-300s
- Playback functions include rewind, slow/fast motion, digital zoom
- 3 USB ports, USB 2.0
- RS232, 1 port for Keyboard
- 1 port for PTZ control
- RJ-45 Port with Network Functionality
- 128 max users
- Power consumption, 40W
- OSD Menu
Digital Video Recorder (DVR)
