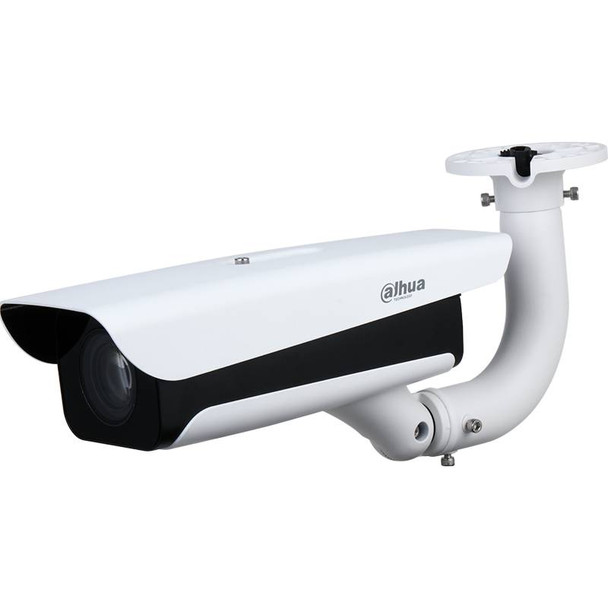

Dahua ITC237-PW6M-IRLZF1050-B 2MP LPC Entrance/Exit IP Security Camera with Bracket (Long Lens)

Dahua ITC237-PW6M-IRLZF1050-B 2MP LPC Entrance/Exit IP Security Camera with Bracket (Long Lens)

The ITC237-PW6M-IRLZF1050-B is a license plate recognition camera with a recording resolution of 1920 x 1080 (1080p) at 30 frames per second with a 1/1.8-inSony GS-CMOS sensor. The camera includes a 10 mm to 50 mm motorized vari-focal lens that lets the installer adjust the zoom angle of the picture, providing long-range video. The camera recognizes license plates of vehicles traveling up to 80 kph (49 mph). The camera can be mounted between 8 m and 30 m (26.25ft and 98.43ft) from where the vehicles will be traveling and captures and recognizes plates from a single lane. The ITC237-PW6M-IRLZF1050-B coupled with a Dahua NVR or DSS Video Management System offers a complete traffic management and parking solution.

Key Features:

• 1/1.8-in. 2 MP GS CMOS Sensor
• License Plate Recognition Distance up to 30 m (98.43ft)
• Capture and Recognize License Plates from Vehicles Traveling up to 80 kph (49 mph)
• Dual-stream Encoding
• H.265 and H.264 Dual Codec
• 1080p at 30 fps Maximum Resolution
• 10 mm to 50 mm Motorized Vari-focal Lens
• Maximum IR LED Distance 25 m (82ft)
• 12 VDC, 1 A Power Output
• IP67 Ingress Protection

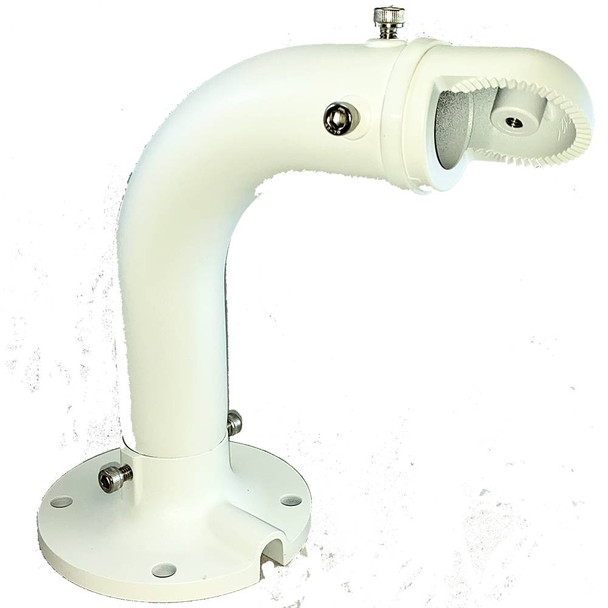

• Mounting Bracket Included
• Five-year Warranty (for products sold through an authorized Dahua Dealer)

License Plate Recognition

The License Plate Recognition camera automatically captures vehicle license plate images and recognizes license plate numbers and letters. During playback, an operator can perform a license plate search by Time and Date to view thumbnail images of all plates captured during the specified time period or can enter a license plate number to search for vehicles recorded with that plate. License plate recognition technology offers effective entrance/exit management, traffic surveillance, and parking lot monitoring.

High Efficiency Video Coding (H.265)

The H.265 (ITU-T VCEG) video compression standard offers double the data compression ratio at the same level of video quality, or substantially improved video quality at the same bit rate, as compared to older video compression technologies. H.265 offers such impressive compression by expanding the pattern comparison and difference-coding, improving motion vector prediction and motion region merging, and incorporating an additional filtering step called sample-adaptive offset filtering.

Environmental

With a temperature range of –30 °C to +65 °C (–22 °F to +149 °F), the camera is designed for extreme temperature environments. Subjected to rigorous dust and water immersion tests and certified to the IP67 Ingress Protection rating makes it suitable for demanding outdoor applications.
