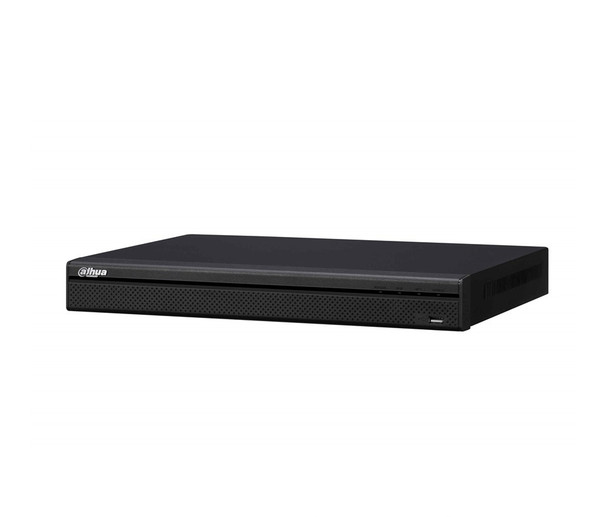

Dahua N42B1P 4 Channel H.265 4K Network Video Recorder - No HDD Included
- Compression : H.264, H.265,
- Pre-Installed Storage : No HDD included
- Video Output : 1x HDMI 1x VGA
- Hard Drive Ports : 2 SATA Ports
- Max. Storage Capacity : 12 TB Storage Capacity
- Number of PoE Ports : 4 PoE Ports
Description
Dahua N42B1P 4 Channel H.265 4K NVR Network Video Recorder
Key features:
- 4 Channel
- No HDD Included
- H.265 and H.264 Video Compression
- Maximum 200 Mbps Incoming Bandwidth
- Up to 8 MP Resolution for Preview and Playback
- Simultaneous HDMI and VGA Video Output
- Support for IPC and UPnP Protocols
- Four (4) PoE Ports
- Support for Automatic Network Replenishment (ANR) Technology
Dewarping Mode
The NVR has the ability to correct the distortion in a circular panoramic view produces by a fisheye lens. The NVR offers various dewarping modes for different installations and configurations.
4K Resolution
4K resolution is a revolutionary breakthrough in image processing technology. 4K delivers four times the resolution of Full HD 1080p devices and offers superior picture quality and image details. 4K resolution improves the clarity of a magnified scene to view or record crisp forensic video from large areas.
Intelligent Video System (IVS) Recording
Working with IVS-enabled IP cameras, the NVR recognizes and records video that contains IVS data on all IP channels. The NVR records standard intelligence at-the-edge features, as well as premium IVS features that detect abandoned or missing objects, Tripwire violations, and intrusion violations. The NVR is also capable of recording business analysis data – Facial Detection, People Counting, and Heat Map – from IP cameras with built-in Intelligent Business Analytics.
Heat Map
The Heat Map option highlights the areas with the highest concentration of people. This information can then be exported into a customized report to assist in business or forensic analysis.
Automatic Network Replenishment (ANR) Technology
Network Video Recorders with the ANR function automatically store video data on an IP camera SD card when the network is disconnected. After recovery of the network, the NVR automatically retrieves the video data stored on the camera.
Smart Add
The Smart Add function makes installing an IP surveillance system quick and easy. The NVR automatically detects and lists IP cameras connected to the same router as the NVR. This automatic detection makes adding cameras to the NVR a seamless process.
Downloads
Additional Information
4K Support: |
4K Supported
|
Channel Capacity: |
4 camera channels
|
Compression: |
H.264
H.265
|
Hard Drive Ports: |
2 SATA Ports
|
Max. Incoming Bandwidth: |
200Mbps
|
Max. Storage Capacity: |
12 TB
|
NDAA Compliance: |
|
Number of PoE Ports: |
4 PoE Ports
|
Pre-Installed Storage: |
No HDD included
|
Rack Unit (U): |
1U
|
Recorder Technology: |
Network Video Recorder (NVR)
|
Video Output: |
1x HDMI
1x VGA
|
Warranty: |
5-year Manufacturer Warranty
|
ePoE Technology: |
|
