Description

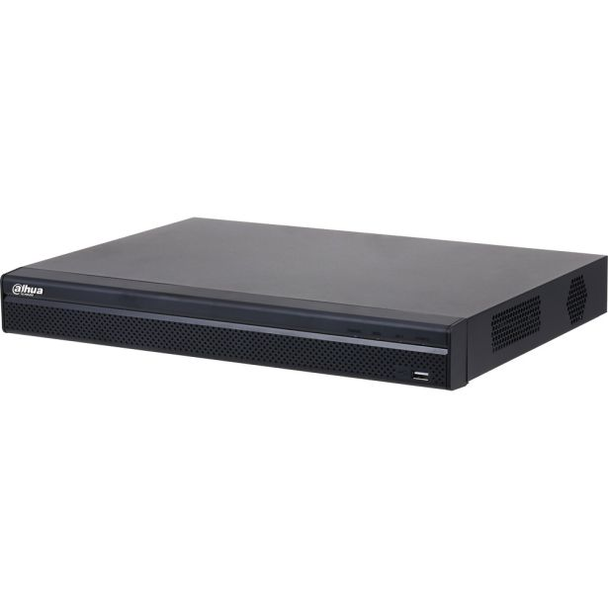

Dahua N42C2P6 8 Channel 8MP Network Video Recorder with 6TB HDD Included
The Dahua N42C2P6 is a professional 8-channel network video recorder that delivers exceptional performance for demanding security applications. This advanced 1U NVR supports up to 8MP resolution recording and features Smart H.265+ compression technology, which reduces bandwidth and storage requirements by up to 90% compared to H.264 standard while maintaining superior video quality. With a maximum recording bandwidth of 160 Mbps and pre-installed 6TB hard drive, this recorder offers maximum storage capability for extended surveillance requirements.
Equipped with eight built-in PoE/PoE+ ports and an impressive total PoE budget of 117W, this recorder can power and manage up to 8 IP cameras through single cable connections. The dual SATA III connections provide enhanced storage flexibility and expandability up to 20TB total capacity. Advanced Analytics+ recording capabilities work seamlessly with Dahua WizSense cameras to capture intelligent data including Perimeter Protection, Smart Motion Detection+, and People Counting across all 8 channels.
The recorder features comprehensive alarm management with 4 alarm inputs and 2 relay outputs, enabling integration with external security devices and alarm systems. Dual video output through simultaneous HDMI and VGA connections supports multi-screen display options (1/4/8/9). Enhanced playback capabilities support up to 8 channels of synchronized playback. Remote management capabilities include P2P connectivity and DMSS mobile app support for convenient access from anywhere.
Key Features:
- 8-channel recording with up to 8MP resolution support
- Pre-installed 6TB hard drive for maximum storage
- Maximum 160 Mbps recording bandwidth for high-performance applications
- Eight built-in PoE/PoE+ ports with 117W total power budget
- Dual SATA III ports for enhanced storage flexibility (up to 20TB total)
- Smart H.265+ compression reduces storage by up to 90%
- 4 alarm inputs and 2 relay outputs for security integration
- Analytics+ recording with Perimeter Protection and SMD+
- Multi-screen display support (1/4/8/9 channels)
- Five-year manufacturer warranty
Downloads
Popular Search
Additional Information
|
Channel Capacity:
|
8 Channels
|
|
Compression:
|
Smart H.265+
|
|
Dimensions:
|
14.76 x 12.91 x 2.09 in
|
|
Max. Recording Resolution:
|
8MP (4K)
|
|
Max. Storage Capacity:
|
10 TB
|
|
Number of PoE Ports:
|
8 PoE Ports
|
|
Pre-Installed Storage:
|
6 TB
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
|
Storage Humidity:
|
30% to 85% RH
|
|
Storage Temperature:
|
0 °C to 40 °C (32 °F to 104 °F)
|
