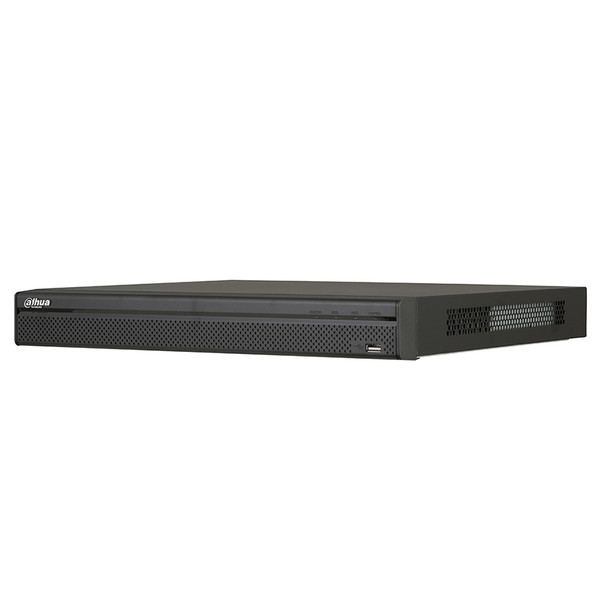

Dahua N52B5P8 32 Channel 4K ePoE Network Video Recorder - 8TB HDD included

Part Number: N52B5P8
Write a Review
  • Dahua N52B5P 32 Channel 4K ePoE Network Video Recorder
  • Dahua N52B5P8 32 Channel 4K ePoE Network Video Recorder - 8TB HDD included
Free shipping over $300 Free Shipping
Technical Support Technical Support
5 Year Warranty 5 Year Warranty
  • Compression : H.265 Plus, H.264 Plus,
  • Max. Recording Resolution : 12MP
  • Hard Drive Ports : 2 SATA Ports
  • Number of PoE Ports : 16 PoE Ports


Dahua N52B5P8 32 Channel 4K ePoE Network Video Recorder

Dahua's Pro Series network video recorders offer excellent performance and high recording quality for IP video surveillance applications. For applications where details are critical for identification, this professional NVR provides a powerful processor with up to 4K resolution. Additionally, the NVR features a mouse shortcut operation menu, remote management and control, central storage, edge storage, and back up storage options.

Dahua's innovative ePoE technology offers a plug-and-play solution to transmit power and data over long distances via Ethernet or coaxial cables, reducing installation time and saving money. ePoE technology is a viable, cost-effective solution for extending transmission distances and for converting existing, coax-based analog systems into IP systems. For video security and surveillance installers, ePoE technology saves time and money by reducing overall cabling requirements, allowing for existing coax cable to be used, and minimizing the number of peripheral devices needed. For new installations, ePoE offers the ability to design long-distance applications without the need for additional repeaters.

Enhanced PoE encompasses pure IP systems where a single CAT5E cable can carry signals up to 800 m (2625 ft), and IP/Analog hybrid systems where the technology leverages existing analog infrastructure to transmit power and data up to 1000 m (3281 ft) over RG59 coaxial cable. Enhanced PoE is compatible with three connection modes operating over the same network simultaneously: traditional IP networks, long-distance ePoE networks and coaxial networks. ePoE technology seamlessly integrates the latest high-definition IP cameras with a coaxial infrastructure using the Ethernet over Coaxial (EoC) protocol to convert between analog and IP power and data transmissions.

Key features:

  • 32 Channel
  • 8TB HDD included
  • Smart H.265+ and Smart H.264+ Dual Codecs
  • Maximum 320 Mbps Incoming Bandwidth
  • Up to 12 MP Resolution for Preview and Playback
  • Ports 1 to 8 Support ePoE and EoC Signal Transmission, up to 800 m (2524 ft)
  • HDMI and VGA Simultaneous Video Output
  • Fisheye Dewarping
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)
  • 1U Chassis
  • 16 PoE ports
  • Two (2) SATA III Ports, up to 10 TB capacity for each HDD
  • Single-port EoC Transmitter LR1002-1ET
  • Rack-mount Tray PFH101
  • EoC Passive Converter LR1002
View AllClose

Additional Information

4K Support:
Channel Capacity:
32 camera channels
H.265 Plus H.264 Plus
Hard Drive Ports:
2 SATA Ports
Max. Incoming Bandwidth:
Max. Recording Resolution:
NDAA Compliant:
Number of PoE Ports:
16 PoE Ports
Recorder Technology:
Network Video Recorder (NVR)
5-year Manufacturer Warranty
ePoE Technology:
