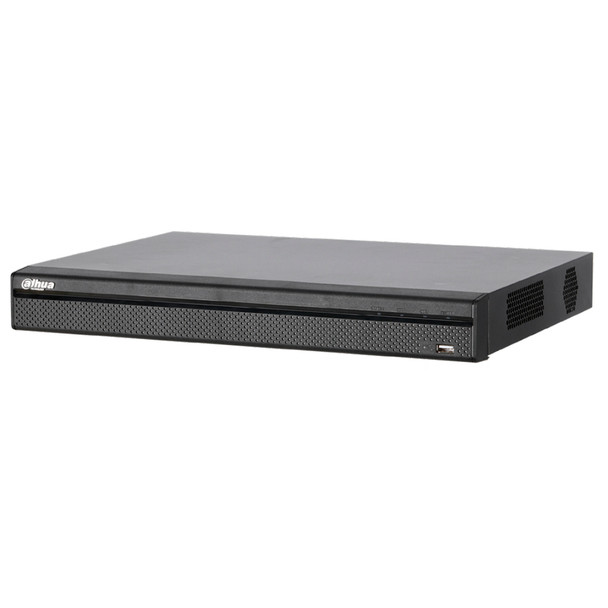

Dahua X21A2E2 8 Channel Penta-brid Digital Video Recorder - 2TB HDD included

(No reviews yet) Write a Review
  • Dahua X21A2E2 8 Channel Penta-brid Digital Video Recorder - 2TB HDD included
  • Dahua X21A2E2 8 Channel Penta-brid Digital Video Recorder - 2TB HDD included
MSRP: $420.31
Free Shipping
Frequently bought together:


Dahua X21A2E2 8 Channel Penta-brid Digital Video Recorder

Dahua, a global leader in security systems, introduces XVR technology - the perfect affordable solution to upgrade existing video surveillance systems while leveraging existing networks, cabling, and cameras. XVR technology utilizes Penta-brid access technology to seamlessly record video from HDCVI, AHD, TVI, CVBS, and IP sources simultaneously. The XVR offers advanced options such as built-in motion detection algorithms, alarm triggers, and customized recording modes. XVR technology is the ideal solution for actively monitoring and recording video feeds in wide range of applications including public venues, retail stores, transportation hubs and access ways, personal property and homes, and educational institutions.

Record and monitor video from analog/CVI camera inputs and IP camera inputs simultaneously. The X21A series supports a maximum of 24 channels, with up to 16 channels of HDCVI/AHD/TVI/CVBS inputs and up to an additional 8 channels of IP inputs. The flexibility of the XVR allows all 24 channels to record input from IP cameras, or from a combination of input from analog and IP sources (not to exceed the maximum number of analog cameras allowed per XVR). In addition, the XVR supports a maximum of 16 local live-view channels and 16 playback channels.

The XVR offers a variety of configurable recording options and schedules that saves HDD space and active monitoring time. The XVR monitors incoming video and can be programmed to record if motion is detected or if an alarm is triggered. The XVR can also be programmed to record on a schedule or at different intervals. The recording options and schedules can be set for each individual camera or copied to all cameras.

Key features:

  • 8 HDCVI/AHD/TVI/CVBS Channels
  • 2TB HDD included
  • Embedded Processor
  • Smart H.264+ / H.264 Dual-stream Video Compression
  • Offers 720p (real-time) and 1080p (15 fps) Resolutions
  • 8 + 4 IP Channels, up to 5 MP per Channel
  • Maximum 24/48/96 Mbps Incoming Bandwidth
  • Built-in Smart Search
  • 1x HDMI, 1x VGA
  • 1x SATA HDD slot, up to 8TB storage
  • Intelligent Video System (one IP channel)
View AllClose

Additional Information

5-year Manufacturer Warranty
H.264 Plus H.264 MJPEG
4K Support:
Max. Recording Resolution:
Rack Unit (U):
Recorder Technology:
Digital Video Recorder (DVR)
Recorder Channel Capacity:
8 camera channels
Number of PoE Ports:
4 PoE Ports
Video Output:
1x HDMI 1x VGA
Max. Storage Capacity:
8 TB
ePoE Technology:
Hard Drive Ports:
1 SATA Port
Pre-Installed Storage:
2 TB
