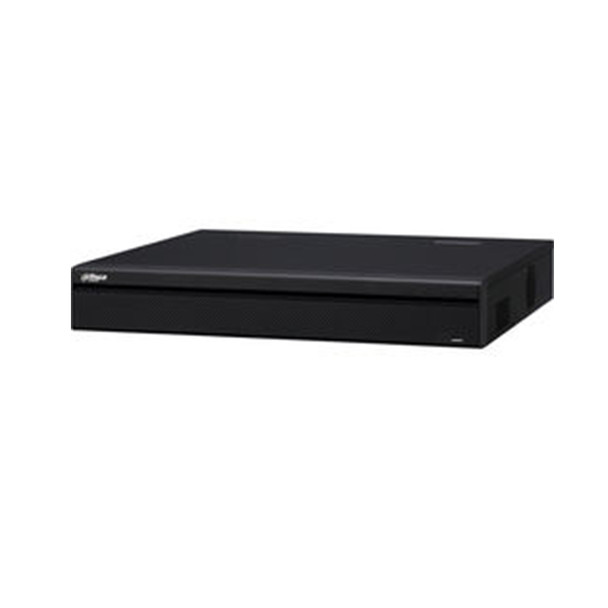

Dahua X54A5L 32 Channel H.265 Penta-brid Digital Video Recorder, No HDD included

Brand: Dahua
Part Number: X54A5L
Write a Review
Discontinued
  • Dahua X54A5L 32 Channel H.265 Penta-brid Digital Video Recorder, No HDD included
  • Dahua X54A5L 32 Channel H.265 Penta-brid Digital Video Recorder, No HDD included
  • Dahua X54A5L 32 Channel H.265 Penta-brid Digital Video Recorder, No HDD included
  • Dahua X54A5L 32 Channel H.265 Penta-brid Digital Video Recorder, No HDD included
$973.78
Free shipping over $300 Free Shipping
Technical Support Technical Support
5 Year Warranty 5 Year Warranty
  • Compression : H.265,
  • Pre-Installed Storage : No HDD included

Customers Also Viewed

Discontinued
Dahua X58A3S 16-Channel 4K Penta-brid HD-CVI Digital Video Recorder

Dahua X58A3S 16-Channel 4K Penta-brid HD-CVI Digital Video Recorder

X58A3S
$1,901.99
$1,711.78
  • Compression : H.264 Plus, H.264, MJPEG,
  • Pre-Installed Storage : No HDD included
  • Video Output : 2x HDMI 1x VGA
  • Max. Recording Resolution : 12MP (4K)
  • Hard Drive Ports : 8 SATA Ports
  • Max. Storage Capacity : 64 TB Storage Capacity
Free shipping over $300 Free Shipping
Digital Video Recorder (DVR) Digital Video Recorder (DVR)
LTS LTD8432K-ST 32 Channel HD-TVI Digital Video Recorder

LTS LTD8432K-ST 32 Channel HD-TVI Digital Video Recorder

LTD8432K-ST
$1,450.00
  • Compression : H.264 Plus, H.265 Plus, MJPEG, H.265, H.264,
  • Pre-Installed Storage : No HDD included
  • Video Output : 2x HDMI 1x VGA
  • Max. Recording Resolution : 5MP
  • Hard Drive Ports : 4 SATA Ports
  • Max. Storage Capacity : 48 TB Storage Capacity
Free shipping over $300 Free Shipping
Digital Video Recorder (DVR) Digital Video Recorder (DVR)
LTS LTD8432K-EA 32 Channel H.265 Turbo HD Digital Video Recorder

LTS LTD8432K-EA 32 Channel H.265 Turbo HD Digital Video Recorder

LTD8432K-EA
$998.39
  • Compression : H.265, H.265 Pro Plus, H.265 Pro,
  • Pre-Installed Storage : No HDD included
  • Max. Recording Resolution : 4MP
  • Hard Drive Ports : 4 SATA Ports
  • Max. Storage Capacity : 40 TB Storage Capacity
  • Color : Black
Free shipping over $300 Free Shipping
Digital Video Recorder (DVR) Digital Video Recorder (DVR)
Black Black

Description

Dahua X54A5L 32 Channel H.265 Penta-brid Digital Video Recorder

The X54A Series HDCVI DVR offers 1080p recording on each HDCVI channel and a host of advanced features and functions. The X54A takes advantage of HDCVI technology for easy integration into existing video surveillance systems while leveraging existing networks, cabling, and cameras. Penta-brid access technology seamlessly records video from HDCVI, AHD, TVI, CVBS, and IP sources simultaneously.

The X54A utilizes the Smart H.265+ Codec to significantly improve encoding efficiency and to reduce bandwidth and storage costs. This recorder is the ideal solution for actively monitoring and recording video feeds in a wide range of applications including public venues, retail stores, transportation hubs and access ways, personal property and homes, and educational institutions.

Key Features:

  • Embedded Processor
  • Smart H.265+ and Smart H.264+ Dual Codec
  • Dual-stream Recording
  • 5 M-N (1296 x 1944) at 10 fps Maximum Recording Resolution
  • 32 HDCVI, AHD, TVI, CVBS or IP Channels
  • Up to 8 MP per IP Channel
  • 128 Mbps Incoming Bandwidth
  • Built-in Smart Search
  • Spot Monitor Output on HDMI 2
  • Intelligent Video System
  • Four (4) SATA HDD Ports, up to 10 TB per Hard Disk
  • Five-year Warranty (for products sold through an authorized Dahua dealer)
Camera Connections

Record and monitor video from analog/HDCVI camera inputs and IP camera inputs simultaneously. The X54A series supports a maximum of 32 channels, with up to 32 channels of HDCVI/AHD/TVI/CVBS/IP inputs. The flexibility of the HDCVI DVR allows all 32 channels to record input from IP cameras, or from a combination of input from analog and IP sources (not to exceed the maximum number of analog cameras allowed per recorder).

Flexible Recording

The HDCVI DVR offers a variety of configurable recording options and schedule that saves HDD space and active monitoring time. The recorder monitors incoming video and can be programmed to record if motion is detected or if an alarm is triggered. The recorder can also be programmed to record on a schedule or at different intervals. The recording options and schedules can be set for each individual camera or copied to all cameras.

Smart H.265+

Smart H.265+ is the optimized implementation of the H.265 codec that uses a scene-adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction to deliver high-quality video without straining the network. Smart H.265+ technology reduces bit rate and storage requirements by up to 90% when compared to the H.264 video compression standard.

HDCVI/AHD/TVI/CVBS Auto-detect

The HDCVI DVR automatically recognizes the incoming signals of each attached camera without any setup, making installation easy and operation convenient.

Intelligent Video System (IVS)

With built-in IVS analytics on up to 16 channels, the HDCVI DVR delivers intelligent functions to monitor a scene for Tripwire violations, intrusion detection, and abandoned or missing objects. A device with IVS quickly and accurately responds to monitoring events in a specific area.

Face Detection

The HDCVI DVR offers Face Detection of the first analog channel. This technology detects and captures a snapshot of a human face in a defined area within a scene.

Smart Fan Design

The HDCVI DVR automatically turns on or turns off the fan according to the CPU temperature. This function reduces fan noise and helps to conserve electricity.

Smart Search

Smart Search allows an operator to specify a region in the playback video to search for a motion detection event, saving time and manpower.

Specifications

X54A5L
Series: Pro
Compatible Video: HDCVI/AHD/TVI/CVBS (Auto-detect)
HD-CVI/Analog Channels: 32
IP Channels: 32
Video Compression: Smart H.265+, H.265, Smart H.264+, H.264
HD-CVI/Analog Recording
Resolutions:
Channel 1:
• 5 M-N (1296 x 1944) at 20 fps
Channels 2 to 32:
• 4 M-N (1280 x 1440) at 7 fps
OR
Channels 1 and 2:
• 5 M-N (1296 x 1944) at 10 fps
Channels 3 to 32:
• 4 M-N (1280 x 1440) at 15 fps
IP Recording Resolutions: Up to 8 MP
Input Bandwidth: 128 Mbps
Video Output: Two (2) HDMI, One (1) VGA, One (1) BNC
HDD: Four (4) SATA Ports, up to 10 TB capacity for each disk
eSATA: 1
Audio In: 4 BNC
Audio Out: 1 BNC
Alarm In: 16
Alarm Out: 6
Network: 1 Gigabit Port
USB: One (1) USB 2.0 Port and Two (2) USB 3.0 Ports
Power: 100 VAC to 240 VAC, 50/60 Hz
<35W (No HDD)
IVS: Yes (16 Analog Channels, if IP Channels are Disabled)
POS: No
Spot Out/ Video Matrix: Yes, HDMI 2
View AllClose

Additional Information

Channel Capacity:
32 camera channels
Compression:
H.265
NDAA Compliance:
Pre-Installed Storage:
No HDD included
Recorder Technology:
Digital Video Recorder (DVR)
Warranty:
5-year Manufacturer Warranty
