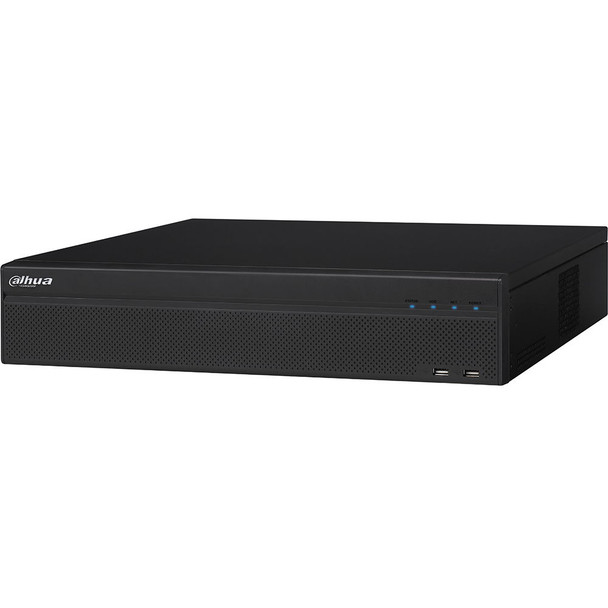

Dahua X58A3S 16-Channel 4K Penta-brid HD-CVI DVR Digital Video Recorder

Key features of Dahua X58A3S

  • 16 Channel
  • Embedded Intel Multi-core Processor
  • Dual-stream Video Recording with Smart H.264+ Compression
  • Supports HDCVI/AHD/CVBS/TVI/IP Video Inputs
  • 16+48 IP Camera Channels, each channel up to 12 MP
  • Maximum 256 Mbps Incoming Bandwidth, 384 Mbps Forwarding Bandwidth
  • Smart Search and Intelligent Video System
  • Supports HDCVI/CVBS Loop Out
  • Spot Output

Product Type:
5-year Manufacturer Warranty
  • H.264+
  • H.264

Video Recorder Features

4K Support:
Max. Incoming Bandwidth:
Max. Recording Resolution:
  • 12MP
Rack Unit (U):
Recorder Technology:
Digital Video Recorder (DVR)
Number of camera channels:
  • 16 camera channels
Video Output:
  • 1x VGA
  • 2x HDMI
Max. Storage Capacity:
64 TB
ePoE Technology :
Hard Drive Ports:
8 SATA Ports
Pre-Installed Storage (Recorders):
No HDD included
Technical Specs

Main ProcessorEmbedded Processor
Operating SystemEmbedded Linux
InterfaceTwo (2) HDMI ports (HDMI 1 output up to 4K, 2K)
One (1) VGA port
One (1) 1 TV port
Spot Output (Video Matrix)TV Interface (HDMI-2 sub-port)
Resolution3840 × 2160, 2560 × 1440, 1920 × 1080,
1280 × 1024, 1280 × 720, 1024 × 768
Multi-screen Display1/4/8/9/16/25/36
Privacy MaskingFour (4) Rectangular Zones (each camera)
On-screen DisplayCamera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording
Video Detection and Alarm
Trigger EventsRecording, PTZ, Tour, Alarm Out, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips
Video DetectionMotion Detection, MD Zones: 396 (22 × 18),
Video Loss, Tampering and Diagnosis
Alarm Input16 Channels
Relay OutputSix (6) Channels
Playback and Backup
Search ModeTime /Date, Alarm, MD and Exact Search
(accurate to 1 second)
Playback FunctionPlay, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup ModeUSB Device and Network
Internal HDD8 SATA Ports, up to 8 TB capacity for each disk
eSATAOne (1)
Auxiliary Interface
USBTwo (2) USB 2.0 ports
Two (2) USB 3.0 ports
RS232One (1) Port for PC Communication and Keyboard
RS422One (1) Port for PTZ Control
RS485One (1) Port for PTZ Control
8 or 16 BNC Connectors
Audio and Video
HDCVI Camera Input16 Channels
IP Camera Input16 + 48 Channels, each channel up to 12 MP
AudioInput: 16 Channels
Output: One (1) Channel
Two-way TalkInput: One (1) BNC Microphone Connector
Output: One (1) BNC Microphone Connector
CompressionSmart H.264+, H.264, MJPEG
Resolution4K (8 MP) 4 MP, 1080p, 720p, 960H, D1, HD1, BCIF, CIF, QCIF
Record Rate
Main StreamCVI/AHD:
1st and 9th channels: 4K or 4 MP at 15 fps
Other Channels: 4 MP at 15 fps, 1080p, 720p, 960H, D1, HD1, BCIF, CIF, QCIF at 1/16 to 30 fps
Sub Stream960H, D1, CIF, QCIF at 30 fps
Bit Rate1 Kbps to 12288 Kbps per Channel
Record ModeManual, Schedule (Regular, Continuous), MD (Video Detection: Motion Detection, Video Loss, Tampering), Alarm, Stop
Record Interval1 to 60 minutes (default: 60 minutes),
Pre-record: 1 to 30 s,
Post-record: 10 to 300 s
InterfaceTwo (2) RJ-45 Ports (1000 Mbps )
Network FunctionHTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P, IP Search (Supports Dahua IP cameras, DVRs, NVS)
Maximum User Access128 Users
Mobile Operating SystemIOS, Android
InteroperabilityONVIF 2.4.1, CGI Conformant
Power Supply100 to 240 VAC, 50/60 Hz
Power Consumption< 40 W, without HDD
Operating Conditions-10° C to +55° C (+14° F to +131° F)
Storage Conditions-20° C to +70° C (-4° F to +158° F), 0 to 90% RH
Dimensions2U, 440.0 mm x 455.10 mm x 94.90 mm
(17.30 in. x 17.90 in. x 3.70 in.)
Net Weight8.24 kg (18.17 lb), without HDD
Gross Weight9.48 kg (20.90 lb), without HDD
InstallationDesktop or Rack-mount Installation
SafetyComplies with UL Standard
Electromagnetic Compatibility (EMC)FCC: VFHKEM1612001677IT
CE: SHEM161100753101ITC

IVS triggers an alarm and takes a defined action for the following events:

(refer to the datasheet for important information about the availability of the IVS features)

Standard Features (up to 6 channels)Tampering with the camera.
Error writing to an onboard Micro SD card.
Error sending or receiving data over the network.
Unauthorized access to the camera.
Premium Features (up to 6 channels)
MotionAn object moves through any part of the scene.
TripwireA target crosses a user-defined line.
IntrusionA target enters or exits a defined perimeter.
Scene ChangeA person or object moves the camera to change the scene or covers the camera to obscure the scene.
Abandoned/Missing ObjectA target leaves an object in designated area, or a target removes an object from the same designated area.
Advanced Features
Facial Detection (up to 4 channels, dependent on HDMI use)Detects and captures a snapshot of human face in a defined area within a scene.
People Counting (1 channel)Measure the number of customers, visitors or passengers in a
surveillance scene.

Specsheet (dahua-Datasheet_16ch_4K_HDCVI_DVR_X58A3S_v001_010-A1.pdf, 1,057 Kb) [Download]
