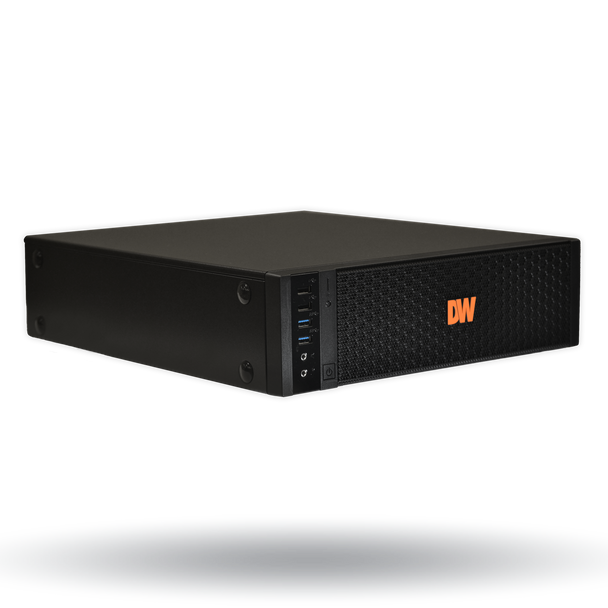

Digital Watchdog DW-BJDX1124T-LX Video Server & NVR with 24TB HDD Included, Linux OS

Part Number: DW-BJDX1124T-LX
Write a Review
New Product!
  • Digital Watchdog DW-BJDX1124T-LX Video Server & NVR with 24TB HDD Included, Linux OS
  • Digital Watchdog DW-BJDX1124T-LX Video Server & NVR with 24TB HDD Included, Linux OS
  • Digital Watchdog DW-BJDX1124T-LX Video Server & NVR with 24TB HDD Included, Linux OS
  • Digital Watchdog DW-BJDX1124T-LX Video Server & NVR with 24TB HDD Included, Linux OS
$4,270.00
$3,416.00
— You save $854.00
Free shipping over $300 Free Shipping
Technical Support Technical Support
5 Year Warranty 5 Year Warranty
  • Pre-Installed Storage : 24 TB
  • Hard Drive Ports : 2 SATA Ports
  • Max. Storage Capacity : 40 TB Storage Capacity
  • Environmental : Indoor

Description

Digital Watchdog DW-BJDX1124T-LX Video Server & NVR with 24TB HDD Included, Linux OS

The DW-BJDX1124T-LX from Digital Watchdog is a compact slim desktop video server designed for reliable and efficient IP video recording in small-to-medium scale surveillance environments. Preloaded with DW Spectrum IPVMS and including four DW Spectrum licenses (DW-SPECTRUMLSC004), this unit provides 24TB of internal storage and supports up to 80Mbps of recording throughput. It operates on Ubuntu 22.04 LTS and features an Intel processor, 8GB of RAM, and onboard Intel HD Graphics. Designed for simple deployment, the system supports single- and multi-sensor IP cameras, and includes video outputs via True HD, DisplayPort, and D-Sub (one active at a time). Dual 1G Ethernet ports ensure reliable network connectivity. NDAA/TAA compliant and built in the U.S.A., the server comes with a 5-year limited warranty.

Key Features:

  • 24TB HDD Included; optimized for compact enterprise video recording setups
  • 4 Recording Licenses; includes DW-SPECTRUMLSC004 for essential multi-channel support
  • Recording Throughput; supports up to 80Mbps for efficient small-to-mid IP camera systems
  • Operating System; Ubuntu 22.04 LTS for secure and stable Linux-based operation
  • Processor; Intel CPU provides reliable performance for daily surveillance tasks
  • Memory; 8GB RAM supports smooth VMS performance and system stability
  • Drive Bays; supports up to 2 × SATA internal hard drives
  • Video Outputs; 1 × True HD, 1 × DisplayPort, 1 × D-Sub (one output active at a time)
  • Graphics; onboard Intel HD Graphics enables local monitoring and configuration
  • Remote Access; cross-platform client compatibility with Windows, Ubuntu Linux, and macOS
  • Mobile App Support; compatible with iOS and Android for remote access
  • System Compliance; ONVIF conformant, NDAA/TAA certified
  • Certifications; designed, assembled, and tested in the U.S.A.
  • Warranty; includes 5-year limited warranty for long-term dependability

Additional Information

Compliance:
TAA (Trade Agreements Act) NDAA Compliant
Dimensions:
98.5 x 334 x 402 mm (3.88 x 13.1 x 15.8 in)
Environmental:
Indoor
Hard Drive Ports:
2 SATA Ports
Max. Storage Capacity:
40 TB
Operating Humidity:
20% to 90% RH
Operating Temperature:
5 °C to 40 °C (41 °F to 104 °F)
Pre-Installed Storage:
24 TB
RAM:
8GB
Recorder Technology:
Video Server
Warranty:
5-year Manufacturer Warranty
