Digital Watchdog DW-BJE2U16T 8 Channel Network Video Recorder - 16TB HDD included, Up to 128ch

Part Number: DW-BJE2U16T
Write a Review
Check other similar products:
Discontinued
  • Digital Watchdog DW-BJE2U16T 8 Channel Network Video Recorder - 16TB HDD included, Up to 128ch
  • Digital Watchdog DW-BJE2U16T 8 Channel Network Video Recorder - 16TB HDD included, Up to 128ch
Free shipping over $300 Free Shipping
Technical Support Technical Support
5 Year Warranty 5 Year Warranty
  • Pre-Installed Storage : 16 TB
  • Max. Recording Resolution : 2MP
  • Hard Drive Ports : 8 SATA Ports
  • Max. Storage Capacity : 32 TB Storage Capacity

Description

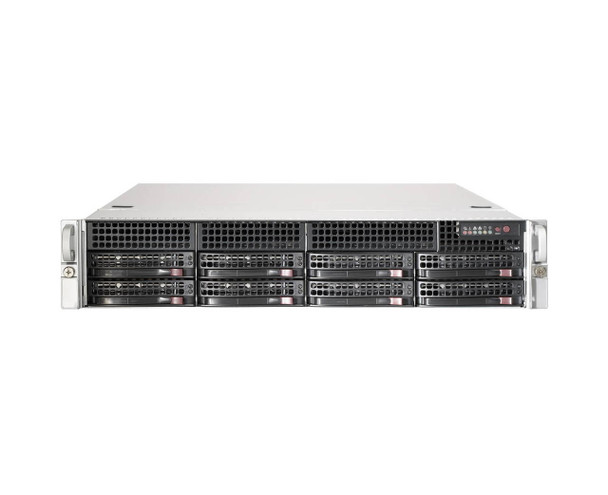

Digital Watchdog DW-BJE2U16T 8 Channel Network Video Recorder

Blackjack E-RACK NVRs are powered by DW Spectrum™ IPVMS or are enterprise-class servers for many popular VMS platforms. The NVRs can record and manage up to 128 2.1MP (1080p) cameras at 30fps, with 600Mbps throughput. The E-RACK's features include Intel® i7® Processor, 16G Memory, 2x Network Cards, 4x Mini Display Ports, with Windows 7 or Ubuntu Linux OS on an SSD card and scheduled auto reboot for hardware performance. The NVR supports cross platform connectivity for Windows® and Mac® client software, allowing you to monitor and connect to your system from anywhere. DW Spectrum IPVMS offers such industry-leading features as Automatic Camera Detection, Fully Customizable Layouts, Easy Drag and Drop Camera Management and Recording, E-Mapping, Advanced Motion Masking and Sensitivity Settings.

Blackjack E-RACK 2U 8 Bay NVRs are ONVIF conformant and are available with 4-32TB HDD for true enterprise scalability. They come with an unbeatable 5 Year Limited Warranty.

All Blackjack E-RACK NVR models come with two DW-SPECTRUMLS004 4-channel license included for a total of 8 licenses.

Key features of Digital Watchdog DW-BJE2U16T

  • 8 channel license included
  • 8-Bay
  • 2U Chassis
  • 16TB HDD included
  • Record up to 128 IP Cameras with total throughput of up to 600Mbps
  • Supports All ONVIF Conformant IP cameras
  • Storage options 4-32TB Internal Storage
  • Hot-Spare HDDs
  • Local Monitoring Outputs Ports
  • Dual Network Ports
  • USB & SD Card Interface
  • Windows 7® 64 Bit or Linux® Ubuntu® 14.04 OS on Separate SSD
  • Hosting DW Spectrum for Setup, Configuration, Monitoring and Recording
  • One-time Recording License Charge, Fully Transferable Between Cameras and Encoders
  • No Annual Maintenance Fees
  • Simple Enterprise Scalability
  • Auto Device Discovery
  • Dual Stream Recording
  • USB Output for OS Recovery
  • Rail kit Included
  • USB Mouse and Keyboard Included
  • Designed, Assembled and Tested in the U.S.A.
  • 5 Years Limited Warranty

Model #

Supported Cameras

Storage Size

DW-BJE2U4T
Up to 128 2.1MP IP Cameras
4TB
DW-BJE2U8T
Up to 128 2.1MP IP Cameras
8TB
DW-BJE2U12T
Up to 128 2.1MP IP Cameras
12 TB
DW-BJE2U16T
Up to 128 2.1MP IP Cameras
16TB
DW-BJE2U20T
Up to 128 2.1MP IP Cameras
20TB
DW-BJE2U24T
Up to 128 2.1MP IP Cameras
24TB
DW-BJE2U28T
Up to 128 2.1MP IP Cameras
28TB
DW-BJE2U32T
Up to 128 2.1MP IP Cameras
32TB

DW Spectrum IPVMS Licensing Options

Description

DW-SPECTRUMLSC001
Single DW Spectrum IPVMS License, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS004


Four (4) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS010


Ten (10) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS020


Twenty (20) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.required.
DW-SPECTRUMLS050


Fifty (50) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS100


One Hundred (100) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPCP04LSC004


Single DW Spectrum IPVMS License - allows up to 4-channel or recording when used with DW-CP04 and DW-CP16, No Annual Renewal, No Upgrade Required.
DW-SPVWALL1X2 Single DW Spectrum IPVMS Video Wall License - 1 Operator, 2 Monitors, No Annual Renewal, No Upgrade Required.

Additional Information

Channel Capacity:
8 Channels
Hard Drive Ports:
8 SATA Ports
Max. Recording Resolution:
2MP
Max. Storage Capacity:
32 TB
Pre-Installed Storage:
16 TB
Product Series:
Digital Watchdog Blackjack E-Rack Series
Rack Unit (U):
2U
Recorder Technology:
Network Video Recorder (NVR)
Warranty:
5-year Manufacturer Warranty
