Digital Watchdog DW-BJP1U10T 64 Channel Network Video Recorder with 10TB HDD included, , Blackjack P-RACK

Part Number: DW-BJP1U10T
Write a Review
Check other similar products:
Discontinued
  • Digital Watchdog DW-BJP1U10T 64 Channel Network Video Recorder with 10TB HDD included, , Blackjack P-RACK
  • Digital Watchdog DW-BJP1U10T 64 Channel Network Video Recorder with 10TB HDD included, , Blackjack P-RACK
  • Digital Watchdog DW-BJP1U10T 64 Channel Network Video Recorder with 10TB HDD included, , Blackjack P-RACK
  • Digital Watchdog DW-BJP1U10T 64 Channel Network Video Recorder with 10TB HDD included, , Blackjack P-RACK
  • Digital Watchdog DW-BJP1U10T 64 Channel Network Video Recorder with 10TB HDD included, , Blackjack P-RACK
Free shipping over $300 Free Shipping
Technical Support Technical Support
5 Year Warranty 5 Year Warranty
  • Pre-Installed Storage : 10 TB
  • Max. Recording Resolution : 2MP
  • Color : Black

Description

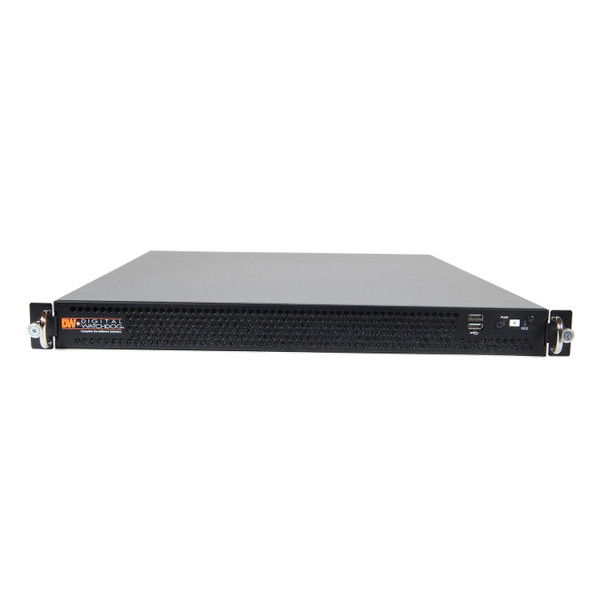

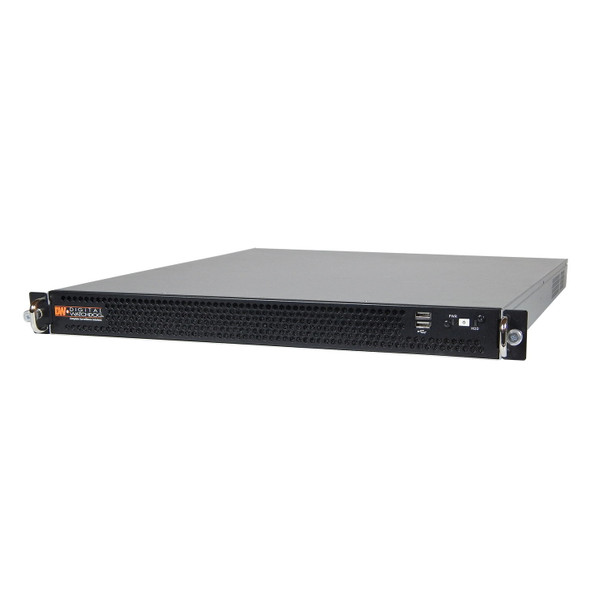

Digital Watchdog DW-BJP1U10T 64 Channel Network Video Recorder

Blackjack P-Rack servers can record and manage single- and multi-sensor IP cameras of any resolution, with an equivalent capacity of up to 64 2.1MP cameras at 30fps and a maximum of 360Mbps throughput. Standard features include Intel i5, Windows 10 IoT or Linux Ubuntu OS and 2x NIC cards. Blackjack P-Rack™ servers can be configured with 10-30TB HDD and come with our 5 year limited warranty.

Key Features:

  • Supports All ONVIF conformant IP cameras
  • Storage options 10-30TB internal storage
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 64 2.1MP cameras at 30fps and a maximum of 360Mbps throughput
  • True HD, VGA and DVI local monitoring outputs ports
  • Dual network ports
  • Windows® 10 IoT or Linux® Ubuntu® 16.04 OS on separate SSD
  • USB interface
  • Hosting DW Spectrum® IPVMS for setup, configuration, monitoring and recording
  • One-time recording license charge, fully transferable between cameras and encoders
  • One (1) DW Spectrum® IPVMS 4-channel licenses included (DW-SPECTRUMLSC004)
  • No annual maintenance fees
  • Simple enterprise scalability
  • Auto device discovery
  • Dual stream recording
  • Rail kit Included
  • USB mouse and keyboard included
  • Designed, assembled and tested in the U.S.A.
  • 5 years limited warranty

Model #*

Supported Cameras

Storage Size

DW-BJP1U10T
Up to 64 2.1MP IP Cameras
10TB
DW-BJP1U20T
Up to 64 2.1MP IP Cameras
20TB
DW-BJP1U30T
Up to 64 2.1MP IP Cameras
30TB

Specifications

Maximum IP cameras
64 (2.1MP/1080p @30fps, with medium recording quality)
Included IP licenses
4
Form factor
Rack mount
Operating system
Windows® 10 IoT
DW-BJP1UXT
Linux Ubuntu® 64 bit
DW-BJP1UXT-LX
OS on SSD
150GB SSD
CPU
Intel® i5® processor
Option: DW-CPUI7 - upgrade processor to i7*
Memory
8GB


Ethernet port
2x gigabit ethernet ports (RJ45)


System
Max video storage rate (Mbps)
360 Mbps
Storage
Maximum hard drives
1 x SSD + 3 x HDD
Maximum storage
30TB
Video-out
Outputs
True HD output or VGA or DVI
Video card
GeForce 210 512MB
Option: DW-RV4H - 4 head HD video card*
Resolution
HD 1080p
Pre-loaded VMS software
DW Spectrum® IPVMS
Remote clients
Cross platform - Windows®, Linux Ubuntu® and Mac®
Mobile apps
iOS® and Andriod®
Keyboard & mouse
Included
Rail kit
Included
Power supply
300W**
Operating temperature and humidity
41°F~104°F (5°C~40°C)
Operating humidity
20~90% RH
Dimension (WxDxH)
17.25” x 26.5” x 1.75” (438.15 x 673.1 x 44.45 mm)
Warranty
5 year limited
View AllClose

Compatible products

Video recorders will require additional parts in order to perform their function. CCTV Power supply, PoE Switches, hard drives, wireless mouse, recorder mount accessories and cables are just few to be mentioned. If you have any questions to complete your security camera system, please check with our sales team first. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Channel Capacity:
64 Channels
Color:
Black
Max. Recording Resolution:
2MP
Pre-Installed Storage:
10 TB
Product Series:
Digital Watchdog Blackjack P-Rack Series
Recorder Technology:
Network Video Recorder (NVR)
Warranty:
5-year Manufacturer Warranty
