Digital Watchdog DW-BJP2U20T 4 Channel Network Video Recorder with 20TB HDD included, Up to 128Ch

Part Number: DW-BJP2U20T
Write a Review
Replacement: There is no direct replacement. Ask a representative.
Check other similar products:
Discontinued

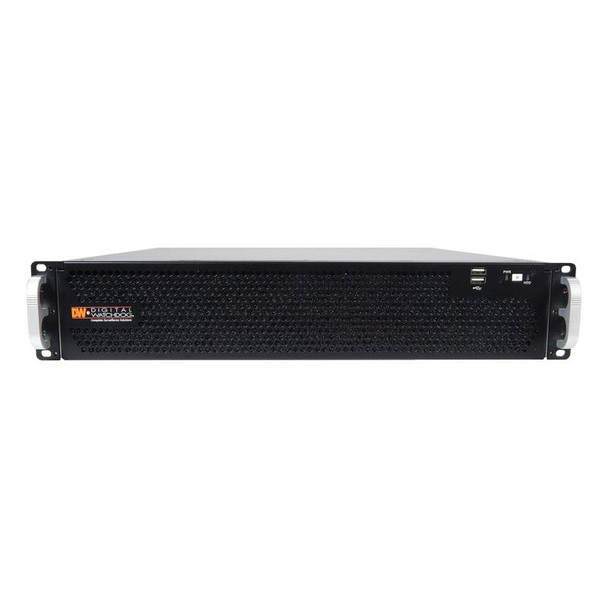

  • Digital Watchdog DW-BJP2U20T 4 Channel Network Video Recorder with 20TB HDD included, Up to 128Ch - 1

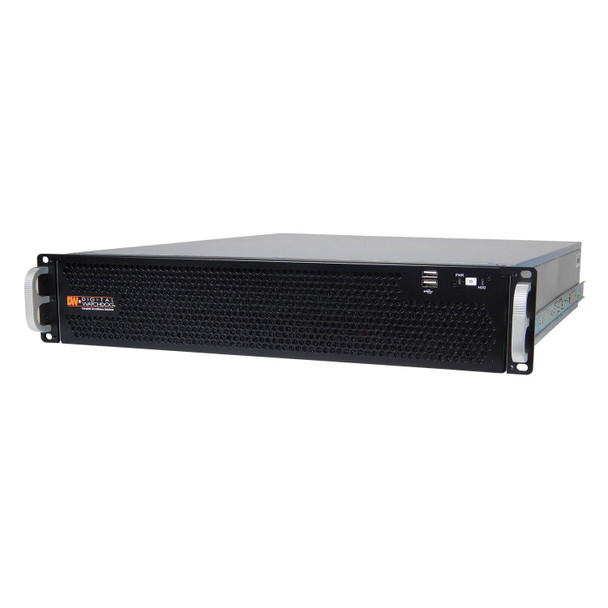

  • Digital Watchdog DW-BJP2U20T 4 Channel Network Video Recorder with 20TB HDD included, Up to 128Ch - 2

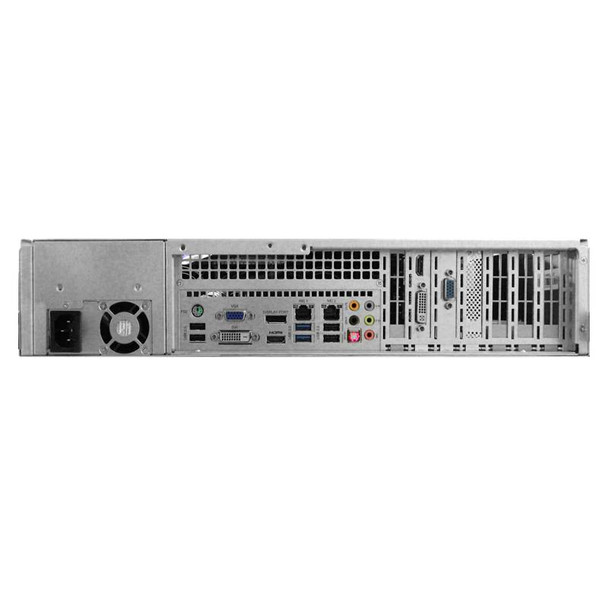

  • Digital Watchdog DW-BJP2U20T 4 Channel Network Video Recorder with 20TB HDD included, Up to 128Ch - 3
  • Digital Watchdog DW-BJP2U20T 4 Channel Network Video Recorder with 20TB HDD included, Up to 128Ch - 5 Years Warranty
Free shipping over $300 Free Shipping
Technical Support Technical Support
5 Year Warranty 5 Year Warranty
  • Pre-Installed Storage : 20 TB
  • Video Output : 2x VGA 2x HDMI 1x DVI 1x DisplayPort
  • Max. Recording Resolution : 2.1MP
  • Hard Drive Ports : 8 SATA Ports
  • Max. Storage Capacity : 36 TB Storage Capacity

Description

Digital Watchdog DW-BJP2U20T 4 Channel Network Video Recorder

Blackjack P-RACK NVRs can record and manage single- and multi-sensor IP cameras of any resolution, with an equivalent capacity of up to 128 2.1MP cameras at 30fps and a maximum of 600Mbps throughput. Standard features include Intel i7, Windows 7 OS and 2x NIC cards. Blackjack P-RACK NVRs can be configured with 3-36TB HDD and come with our 5 Year Limited Warranty.

All Blackjack P-RACK NVR models come with a DW-SPECTRUMLS004 4-channel license included.

Key features:

  • Supports All ONVIF Conformant IP Cameras
  • 20TB Internal Storage
  • Record and manage single- and multi-sensor IP cameras of any resolution up to 128 2.1MP cameras at 30fps and a maximum of 600Mbps throughput
  • True HD and DVI Local Monitoring Outputs Ports
  • Dual Network Ports
  • Windows 7 64 Bit or Linux Ubuntu 14.04 OS on Separate SSD
  • USB Interface
  • Hosting DW Spectrum for Setup, Configuration, Monitoring and Recording
  • One-time Recording License Charge, Fully Transferable Between Cameras and Encoders
  • All Blackjack P-Rack NVR models come with one DW-SPECTRUMLSC004 4-channel licenses included.
  • No Annual Maintenance Fees
  • Simple Enterprise Scalability
  • Auto Device Discovery
  • Dual Stream Recording
  • Rail kit Included
  • USB Mouse and Keyboard Included
  • Designed, Assembled and Tested in the U.S.A
  • 5 Years Limited Warranty

Model #*

Supported Cameras

Storage Size

DW-BJP2U6T
Up to 128 2.1MP IP Cameras
6TB
DW-BJP2U12T
Up to 128 2.1MP IP Cameras
12TB
DW-BJP2U18T
Up to 128 2.1MP IP Cameras
18TB
DW-BJP2U24T
Up to 128 2.1MP IP Cameras
24TB
DW-BJP2U30T
Up to 128 2.1MP IP Cameras
30TB
DW-BJP2U36T
Up to 128 2.1MP IP Cameras
36TB

Part Number

Description

DW-SPECTRUMLSC001
Single DW Spectrum IPVMS License, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS004


Four (4) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS010


Ten (10) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS020


Twenty (20) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.required.
DW-SPECTRUMLS050


Fifty (50) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPECTRUMLS100


One Hundred (100) DW Spectrum IPVMS Licenses, No Annual Renewal, No Upgrade Required.
DW-SPCP04LSC004


Single DW Spectrum IPVMS License - allows up to 4-channel or recording when used with DW-CP04 and DW-CP16, No Annual Renewal, No Upgrade Required.
DW-SPVWALL1X2Single DW Spectrum IPVMS Video Wall License - 1 Operator, 2 Monitors, No Annual Renewal, No Upgrade Required.

Compatible products

Video recorders will require additional parts in order to perform their function. CCTV Power supply, PoE Switches, hard drives, wireless mouse, recorder mount accessories and cables are just few to be mentioned. If you have any questions to complete your security camera system, please check with our sales team first. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

Channel Capacity:
4 Channels
Compliance:
NDAA Compliant
Dimensions:
439.9 x 660.4 x 88.9 mm (17.32 x 26 x 3.5 in)
Hard Drive Ports:
8 SATA Ports
Max. Recording Resolution:
2.1MP
Max. Storage Capacity:
36 TB
Mobile Apps:
iOS Android
Network Interface:
2x NIC input
Operating Humidity:
20% to 90% RH
Operating System:
Windows 10 Pro
Operating Temperature:
5 °C to 40 °C (41 °F to 104 °F)
Pre-Installed Storage:
20 TB
Processor (CPU):
Intel i7 processor
Product Series:
Digital Watchdog Blackjack P-Rack Series
Rack Unit (U):
2U
Recorder Technology:
Network Video Recorder (NVR)
USB Interface:
2x USB 3.0 4x USB 2.0
Video Output:
2x VGA 2x HDMI 1x DVI 1x DisplayPort
Warranty:
5-year Manufacturer Warranty
