Description

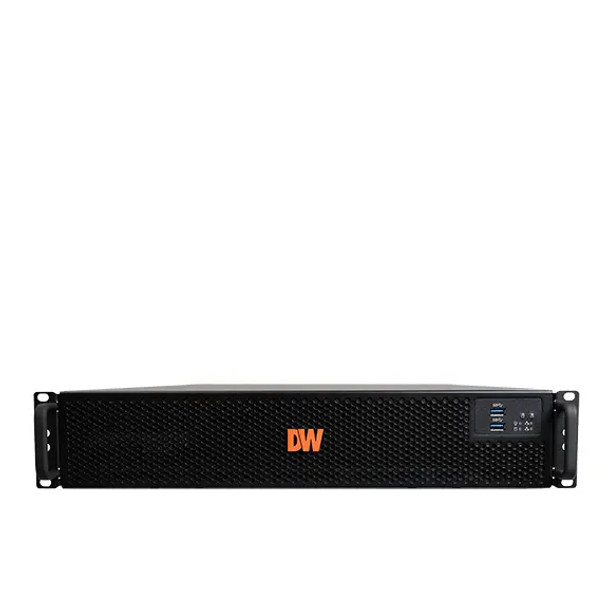

Digital Watchdog DW-BJPR2U120T-LX Video Server & NVR with 120TB Raw HDD Included, Linux OS
The DW-BJPR2U120T-LX from Digital Watchdog is a 2U rack-mounted video server designed for enterprise-level surveillance applications requiring maximum storage capacity, data redundancy, and high throughput. This model includes 120TB of raw storage with 100TB usable in RAID5, offering enhanced data protection and long-term retention. Running on Ubuntu Desktop 20.04.5 LTS, the server supports up to 600Mbps of recording throughput and is powered by an Intel i7 processor and 16GB RAM. It comes preloaded with DW Spectrum IPVMS and includes four DW-SPECTRUMLSC004 licenses, delivering a cost-effective, license-flexible platform without recurring fees. With support for six 3.5" SATA hot-swappable HDDs, True HD or DVI output, and both 1G and 2.5G Ethernet ports, the server ensures performance and scalability in demanding surveillance environments. NDAA/TAA compliant and backed by a 5-year limited warranty, the DW-BJPR2U120T-LX is ready for mission-critical deployments.
Key Features:
- 120TB HDD Included; 100TB usable in RAID5 configuration
- 4 Recording Licenses; includes DW-SPECTRUMLSC004 for ready-to-use recording functionality
- Recording Throughput; supports up to 600Mbps for large-scale, high-resolution video environments
- Operating System; Ubuntu Desktop 20.04.5 LTS ensures stability and open-source flexibility
- Processor; Intel i7 provides robust performance for intensive surveillance tasks
- Memory; 16GB RAM supports efficient multi-stream recording and management
- Drive Bays; supports up to 6 × 3.5" SATA hot-swappable drives
- Video Outputs; True HD or DVI output up to 2560 × 1600 resolution
- Graphics; GeForce 210 1024MB for basic local display and configuration
- Remote Access; compatible with Windows, Linux Ubuntu, and macOS systems
- Mobile Access; iOS and Android app support for on-the-go video access
- System Compliance; ONVIF conformant and NDAA/TAA certified for regulatory requirements
- Certifications; built and tested in the U.S.A., ensuring reliable deployment
- Warranty; includes a 5-year limited warranty for long-term operational security
Downloads
Additional Information
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
Dimensions:
|
439.3 × 557.1 × 88.9 mm (17.3" × 21.9" × 3.5")
|
Environmental:
|
Indoor
|
Hard Drive Ports:
|
6 SATA Ports
|
Max. Storage Capacity:
|
120 TB
|
Pre-Installed Storage:
|
120 TB
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
