Description

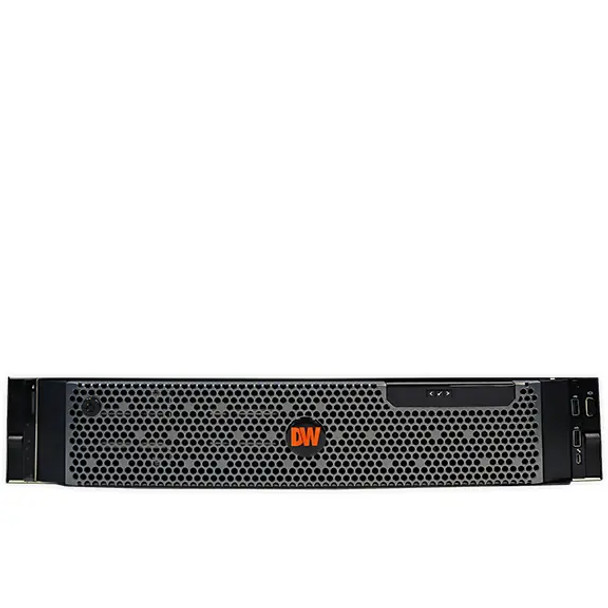

Digital Watchdog DW-BJRR2P100TLX6 Video Server & NVR with 100TB Raw HDD Included, Linux OS
The DW-BJRR2P100TLX6 from Digital Watchdog is a 2U rack-mounted video server built for mission-critical surveillance environments that demand advanced RAID6 data protection and high-capacity video storage. This model features 100TB of raw storage with 80TB usable in a RAID6 configuration, supporting up to 600Mbps of video recording throughput. Running on Ubuntu Desktop 20.04 LTS, the server is equipped with dual Intel Xeon Silver processors, 32GB of RAM, and an Nvidia Quadro GPU for reliable local display and playback performance. The operating system is installed on dual 480GB NVMe SSDs in RAID1 to ensure system redundancy. Preloaded with DW Spectrum IPVMS and bundled with eight recording licenses (2 × DW-SPECTRUMLSC004), it supports up to 12 hot-swappable 3.5" SATA HDDs and includes dual power supplies for maximum uptime. The system is NDAA/TAA compliant, UL-listed, and backed by a 5-year limited warranty with next business day on-site service.
Key Features:
- 100TB HDD Included; 80TB usable in RAID6 configuration
- 8 Recording Licenses; includes 2 × DW-SPECTRUMLSC004 for multi-stream support
- Recording Throughput; up to 600Mbps for high-performance IP surveillance
- Operating System; Ubuntu Desktop 20.04 LTS on dual 480GB NVMe SSDs in RAID1
- Processor; Dual Intel Xeon Silver CPUs for enterprise-class processing
- Memory; 32GB RAM ensures smooth multi-camera video recording and analytics
- Drive Bays; supports up to 12 × 3.5" SATA hot-swappable drives
- Video Output; 1 × mini DisplayPort (adapter to true HD included)
- Graphics; Nvidia Quadro GPU for enhanced local display and playback
- Remote Access; compatible with Windows, Linux Ubuntu, and macOS platforms
- Mobile App Support; iOS and Android ready for remote monitoring
- System Compliance; ONVIF conformant, NDAA/TAA certified
- Certifications; UL, FCC, CE approved
- Warranty; 5-year limited warranty with next business day on-site support and Keep Your Hard Drive policy
Downloads
Additional Information
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
|
Dimensions:
|
482 × 721.62 × 86.8 mm (18.97" × 28.4" × 3.41")
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
12 SATA Ports
|
|
Max. Storage Capacity:
|
240 TB
|
|
Pre-Installed Storage:
|
100 TB
|
|
Recorder Technology:
|
Video Server
|
