Digital Watchdog DW-BJRR2P120T Video Server & NVR with 120TB Raw HDD Included, Windows OS

Digital Watchdog DW-BJRR2P120T Video Server & NVR with 120TB Raw HDD Included, Windows OS

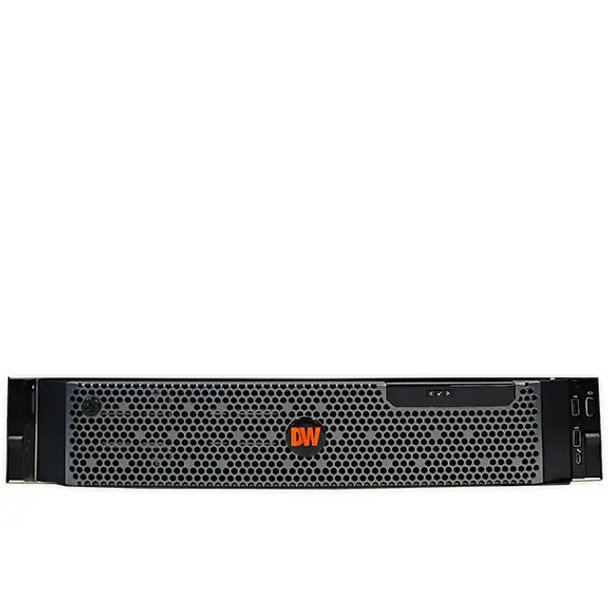

The Digital Watchdog DW-BJRR2P120T is a 2U rackmount video server and NVR system engineered for high-capacity and performance-demanding surveillance environments. Powered by dual Intel Xeon Silver processors and equipped with 32GB of system memory, it delivers reliable support for managing multiple high-resolution IP video streams. The unit comes preloaded with DW Spectrum IPVMS and includes 8 recording licenses, streamlining deployment in large-scale security infrastructures. The operating system is installed on two 480GB NVMe SSDs configured in RAID1, ensuring system redundancy and fast access speeds. With capacity for up to twelve 3.5" SATA hot-swappable hard drives, this model includes 120TB of raw HDD storage and offers approximately 100TB of usable storage in RAID5 configuration. Connectivity is supported by two onboard 1G Ethernet ports and an additional four 1G ports on an expansion board. The server is also NDAA and TAA compliant, UL listed, and includes a 5-year warranty with next business day on-site support after remote diagnostics.

Key Features:

• Preloaded with DW Spectrum IPVMS; includes 8 recording licenses
• Dual Intel Xeon Silver processors; provides high-efficiency processing power
• Windows 10 IoT LTSC operating system; optimized for embedded surveillance use
• OS on SSD; 2 x 480GB NVMe SSDs configured in RAID1 for reliability
• 32GB system memory; supports stable and responsive performance
• Recording throughput; supports up to 600Mbps of IP video data
• Storage capacity; includes 120TB raw HDD with approximately 100TB usable in RAID5
• Drive bays; accommodates up to 12x 3.5" SATA hot-swappable HDDs
• RAID support; OS RAID1, Data RAID5 and RAID6 configurations
• Ethernet ports; 2x 1G onboard and 4x 1G via expansion for flexible networking
• Video output; Mini DisplayPort with adapter for HD display
• Included accessories; USB keyboard, mouse, and rail kit
• Certifications; UL, FCC, CE, NDAA, and TAA compliant
• Warranty; 5-year with next business day on-site service after remote diagnosis
