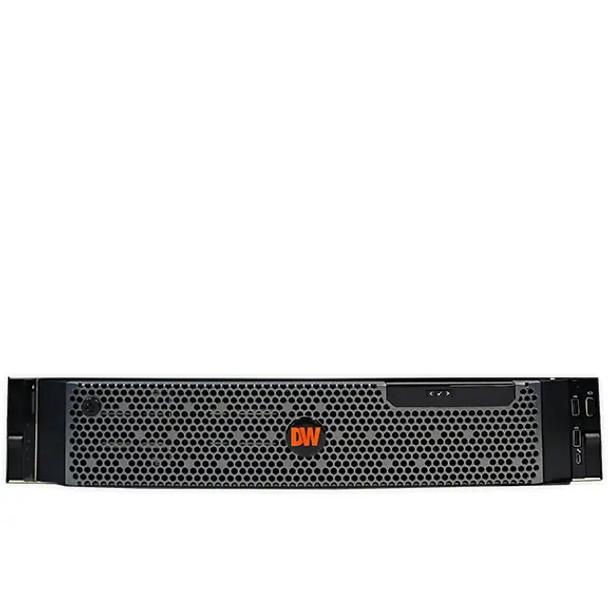

Digital Watchdog DW-BJRR2P160TS Video Server & NVR with 160TB Raw HDD Included, Windows Server OS
The Digital Watchdog DW-BJRR2P160TS is a 2U rackmount video server and NVR built to support large-scale IP video surveillance applications. Equipped with dual Intel Xeon Silver processors, 32GB of RAM, and the Windows Server 2022 operating system installed on dual 480GB NVMe SSDs in RAID1 configuration, this system delivers high-performance recording and system reliability. It includes 8 DW Spectrum IPVMS recording licenses out of the box, supporting seamless integration and efficient setup. The unit accommodates up to twelve 3.5" SATA hot-swappable hard drives, providing 160TB of raw storage with a usable capacity of 140TB under RAID5. Network connectivity is supported via two onboard 1G Ethernet ports and an additional four 1G expansion ports, ensuring robust bandwidth for high-resolution multi-stream recording. Additional features include a dedicated GPU, RAID5/RAID6 data protection options, a mini DisplayPort with adapter, and full compliance with UL, FCC, CE, NDAA, and TAA standards. The system comes bundled with a rail kit, USB keyboard, and mouse, and is backed by a 5-year warranty including next business day on-site service after remote diagnostics.
Key Features:
- Preloaded with DW Spectrum IPVMS; includes 8 recording licenses
- Dual Intel Xeon Silver processors; optimized for high-throughput video performance
- Windows Server 2022 operating system; secure and enterprise-ready platform
- OS on SSD; two 480GB NVMe SSDs in RAID1 for fast and redundant boot
- 32GB system memory; supports large-scale camera deployments
- Video recording throughput; up to 600Mbps for multi-camera environments
- Storage capacity; supports 12x 3.5" SATA hot-swappable HDDs
- RAID options; OS RAID1 and Data RAID5/RAID6 support
- Raw and usable storage; 160TB raw, 140TB usable capacity under RAID5
- Network ports; 2x 1G onboard + 4x 1G via expansion
- Video output; mini DisplayPort with HD adapter included
- Peripheral support; USB keyboard and mouse included
- Compliance; UL, FCC, CE, NDAA, and TAA certified
- Warranty; 5-year with next business day on-site service after remote diagnosis
Downloads
Additional Information
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
|
Dimensions:
|
482 × 721.62 × 86.8 mm (18.97 × 28.4 × 3.41 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
12 SATA Ports
|
|
Max. Storage Capacity:
|
240 TB
|
|
Pre-Installed Storage:
|
160 TB
|
|
Recorder Technology:
|
Video Server
|
