Description

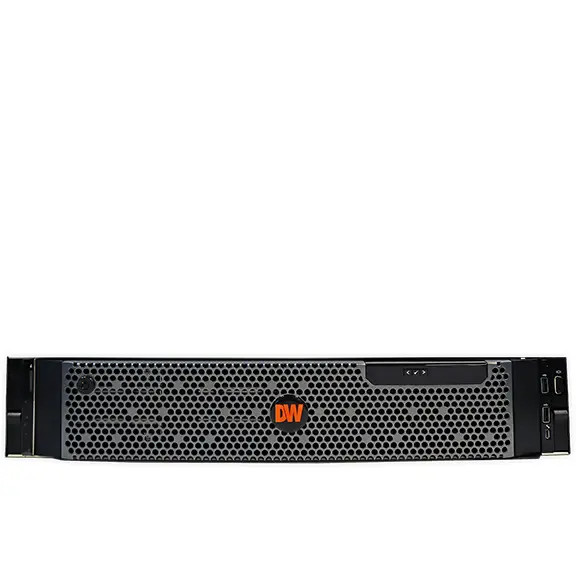

Digital Watchdog DW-BJRR2P160TS6 Video Server & NVR with 160TB Raw HDD Included, Windows Server OS
The Digital Watchdog DW-BJRR2P160TS6 is a powerful 2U rackmount video server and NVR solution purpose-built for demanding IP video surveillance environments. This model is equipped with dual Intel Xeon Silver processors and 32GB of system memory, ensuring smooth performance even under heavy workloads. It comes preloaded with DW Spectrum IPVMS and includes 8 recording licenses for seamless integration into professional video systems. The Windows Server 2022 operating system is installed on a pair of 480GB NVMe SSDs configured in RAID1, offering fast and secure boot capabilities. The server supports up to twelve 3.5" SATA hot-swappable HDDs and features 160TB raw storage capacity, with approximately 120TB usable capacity in a RAID6 configuration. It includes two onboard 1G Ethernet ports and four additional 1G ports on an expansion board for robust networking. Additional features such as a mini DisplayPort with adapter, redundant 800W power supply, and full compliance with UL, FCC, CE, NDAA, and TAA standards make this an ideal enterprise-grade recording server. It is backed by a 5-year warranty including next business day on-site service after remote diagnostics.
Key Features:
- Preloaded with DW Spectrum IPVMS; includes 8 recording licenses
- Dual Intel Xeon Silver processors; ensures high-performance processing
- Windows Server 2022 STD operating system; enterprise-grade OS for reliability
- OS installed on 2 x 480GB NVMe SSDs in RAID1; delivers secure and fast boot
- 32GB system memory; handles multi-stream video processing
- Supports up to 600Mbps of video recording throughput; ideal for large-scale systems
- Supports 12x 3.5" SATA hot-swappable HDDs; flexible storage expansion
- 160TB raw storage capacity; approx. 120TB usable capacity in RAID6
- Data RAID5 and RAID6 support; ensures redundancy and data protection
- 2x 1G onboard + 4x 1G expansion Ethernet ports; enables high bandwidth connectivity
- Mini DisplayPort video output; adapter included for display compatibility
- Includes rail kit, USB keyboard and mouse; ready for deployment
- UL, FCC, CE, NDAA, and TAA certified; meets compliance standards
- 5-year warranty with next business day on-site hardware service; minimizes downtime after remote diagnosis
Downloads
Additional Information
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
|
Dimensions:
|
482 × 721.62 × 86.8 mm (18.97 × 28.4 × 3.41 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
12 SATA Ports
|
|
Max. Storage Capacity:
|
240 TB
|
|
Pre-Installed Storage:
|
160 TB
|
|
Recorder Technology:
|
Video Server
|
