Description

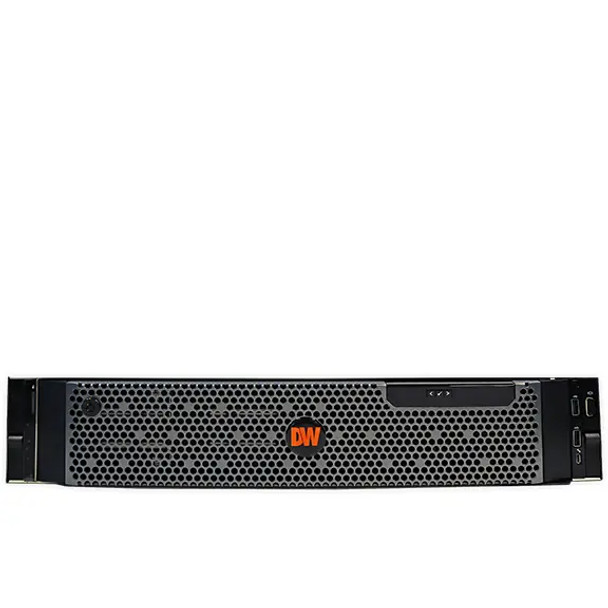

Digital Watchdog DW-BJRR2P180TLX6 Video Server & NVR with 180TB Raw HDD Included, Linux OS
The DW-BJRR2P180TLX6 from Digital Watchdog is a high-performance 2U rack-mounted video server engineered for enterprise surveillance environments requiring RAID6 redundancy and massive video storage capacity. Featuring 180TB of raw storage and 140TB usable in a RAID6 configuration, this server supports up to 600Mbps of recording throughput, making it suitable for high-density multi-camera installations. It operates on Ubuntu Desktop 20.04 LTS and is powered by dual Intel Xeon Silver processors with 32GB RAM and an Nvidia Quadro GPU for enhanced local display and video rendering. The system OS is securely installed on dual 480GB NVMe SSDs in RAID1. Preloaded with DW Spectrum IPVMS and bundled with eight DW-SPECTRUMLSC004 licenses, it includes support for 12 × 3.5" SATA hot-swappable drives, dual redundant 800W power supplies, and six Ethernet ports (2 onboard, 4 via expansion). NDAA/TAA compliant and UL-listed, the DW-BJRR2P180TLX6 includes a 5-year limited warranty with next business day on-site service.
Key Features:
- 180TB HDD Included; 140TB usable in RAID6 configuration
- 8 Recording Licenses; includes 2 × DW-SPECTRUMLSC004 for scalable recording support
- Recording Throughput; supports up to 600Mbps for large-scale IP surveillance
- Operating System; Ubuntu Desktop 20.04 LTS on dual 480GB NVMe SSDs in RAID1
- Processor; Dual Intel Xeon Silver CPUs for enterprise-grade reliability
- Memory; 32GB RAM supports demanding VMS and analytic workloads
- Drive Bays; supports up to 12 × 3.5" SATA hot-swappable drives
- Video Output; 1 × mini DisplayPort with adapter to true HD included
- Graphics; Nvidia Quadro GPU enhances video playback and local display
- Remote Access; compatible with Windows, Ubuntu Linux, and macOS systems
- Mobile Apps; iOS and Android support for remote monitoring
- System Compliance; ONVIF conformant, NDAA/TAA certified
- Certifications; UL, FCC, CE approved
- Warranty; 5-year limited warranty with next business day on-site service and Keep Your Hard Drive policy
Downloads
Additional Information
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
|
Dimensions:
|
482 × 721.62 × 86.8 mm (18.97" × 28.4" × 3.41")
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
12 SATA Ports
|
|
Max. Storage Capacity:
|
240 TB
|
|
Pre-Installed Storage:
|
180 TB
|
|
Recorder Technology:
|
Video Server
|
