Description

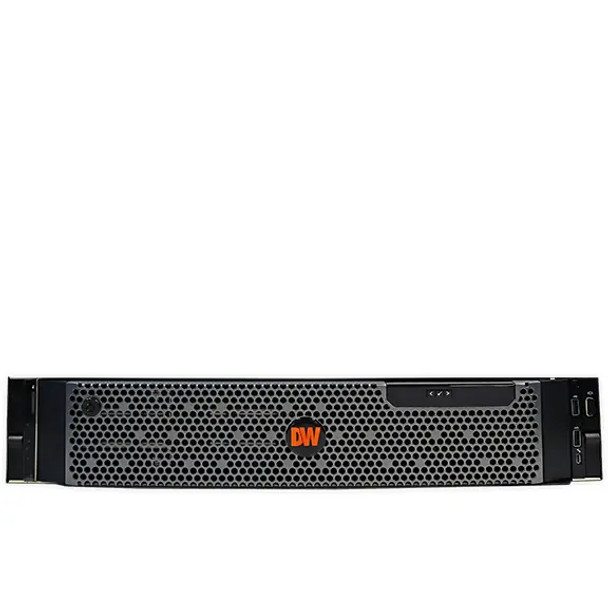

Digital Watchdog DW-BJRR2P200T Video Server & NVR with 200TB Raw HDD Included, Windows OS
The Digital Watchdog DW-BJRR2P200T is a robust 2U rackmount video server and NVR engineered for high-performance IP surveillance applications. This system comes preloaded with DW Spectrum IPVMS and includes 8 recording licenses, enabling users to deploy and manage multiple camera streams efficiently. It is powered by dual Intel Xeon Silver processors and features 32GB of system memory, providing dependable support for high-resolution video recording with up to 600Mbps throughput. The operating system, Windows 10 IoT LTSC, is securely installed on a pair of 480GB NVMe SSDs configured in RAID1, ensuring fast boot times and system resilience. This model includes twelve hot-swappable 3.5" SATA drive bays and is equipped with 200TB raw storage capacity, yielding approximately 180TB usable space in RAID5 configuration. Designed with redundant power supplies and multiple Ethernet ports, the DW-BJRR2P200T offers enterprise-grade reliability and scalability. The system includes a rail kit, USB keyboard, and mouse, and is covered by a 5-year warranty with next business day on-site hardware service following remote diagnostics.
Key Features:
- Preloaded with DW Spectrum IPVMS; includes 8 recording licenses
- Dual Intel Xeon Silver processors; high-performance processing for surveillance applications
- Windows 10 IoT LTSC OS; stable and secure operating environment
- OS on 2 x 480GB NVMe SSDs (RAID1); fast and reliable system storage
- 32GB memory; supports demanding recording and management tasks
- Video throughput up to 600Mbps; handles multiple high-resolution camera streams
- 12 x 3.5" SATA hot-swappable bays; facilitates easy drive maintenance and replacement
- 200TB raw storage capacity; provides approximately 180TB usable space in RAID5
- Supports RAID5 and RAID6; ensures data redundancy and reliability
- 2 x 1G onboard + 4 x 1G expansion Ethernet ports; flexible networking options
- Mini DisplayPort output with adapter; video output for local monitoring
- Includes rail kit, USB keyboard, and mouse; complete deployment package
- UL, FCC, CE, NDAA, and TAA certified; complies with industry standards
- 5-year warranty with next business day on-site service; ensures long-term support and peace of mind
Downloads
Additional Information
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
|
Dimensions:
|
482 × 721.62 × 86.8 mm (18.97 × 28.4 × 3.41 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
12 SATA Ports
|
|
Max. Storage Capacity:
|
240 TB
|
|
Pre-Installed Storage:
|
200 TB
|
|
Recorder Technology:
|
Video Server
|
