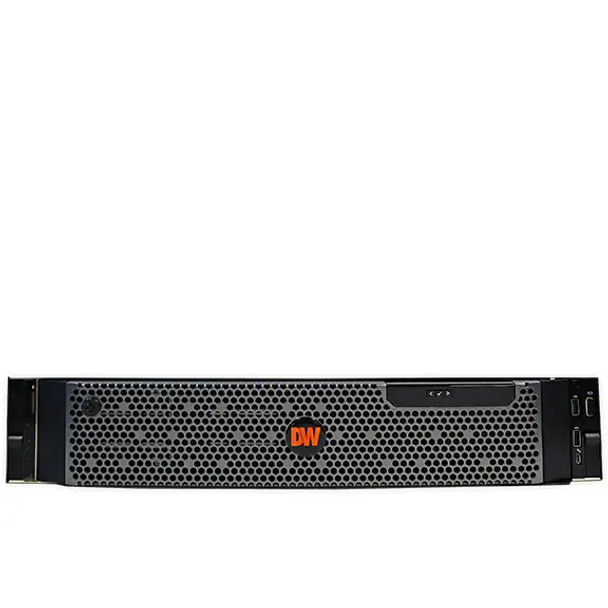

Digital Watchdog DW-BJRR2P200TLX6 Video Server & NVR with 200TB Raw HDD Included, Linux OS
The DW-BJRR2P200TLX6 from Digital Watchdog is a 2U rack-mounted video server engineered for large-scale surveillance deployments that demand maximum storage capacity and RAID6 data protection. Featuring 200TB of raw storage with 160TB usable in a RAID6 configuration, the system supports up to 600Mbps of recording throughput—ideal for high-density, high-resolution IP camera environments. Powered by dual Intel Xeon Silver processors and 32GB of RAM, this Linux-based system operates on Ubuntu Desktop 20.04 LTS and includes a dedicated Nvidia Quadro GPU for enhanced display performance. The OS is installed on dual 480GB NVMe SSDs in RAID1 to ensure reliable and redundant system operation. Preloaded with DW Spectrum IPVMS and bundled with eight DW-SPECTRUMLSC004 licenses, the server accommodates up to 12 hot-swappable 3.5" SATA drives and features six Ethernet ports (2 onboard, 4 via expansion) and dual redundant 800W power supplies. NDAA/TAA compliant and UL-listed, the DW-BJRR2P200TLX6 is backed by a 5-year limited warranty with next business day on-site service.
Key Features:
- 200TB HDD Included; 160TB usable in RAID6 configuration
- 8 Recording Licenses; includes 2 × DW-SPECTRUMLSC004 for multi-channel scalability
- Recording Throughput; supports up to 600Mbps for demanding video surveillance environments
- Operating System; Ubuntu Desktop 20.04 LTS on dual 480GB NVMe SSDs in RAID1
- Processor; Dual Intel Xeon Silver CPUs for efficient, high-performance computing
- Memory; 32GB RAM ensures smooth video recording and VMS operation
- Drive Bays; supports up to 12 × 3.5" SATA hot-swappable HDDs
- Video Output; 1 × mini DisplayPort with adapter to true HD included
- Graphics; Nvidia Quadro GPU for advanced video rendering and display
- Remote Access; compatible with Windows, Ubuntu Linux, and macOS systems
- Mobile App Support; access via iOS and Android for remote surveillance
- System Compliance; ONVIF conformant, NDAA/TAA certified
- Certifications; UL, FCC, CE approved
- Warranty; 5-year limited warranty with next business day on-site service and Keep Your Hard Drive policy
Downloads
Additional Information
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
|
Dimensions:
|
482 × 721.62 × 86.8 mm (18.97" × 28.4" × 3.41")
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
12 SATA Ports
|
|
Max. Storage Capacity:
|
240 TB
|
|
Pre-Installed Storage:
|
200 TB
|
|
Recorder Technology:
|
Video Server
|
