Description

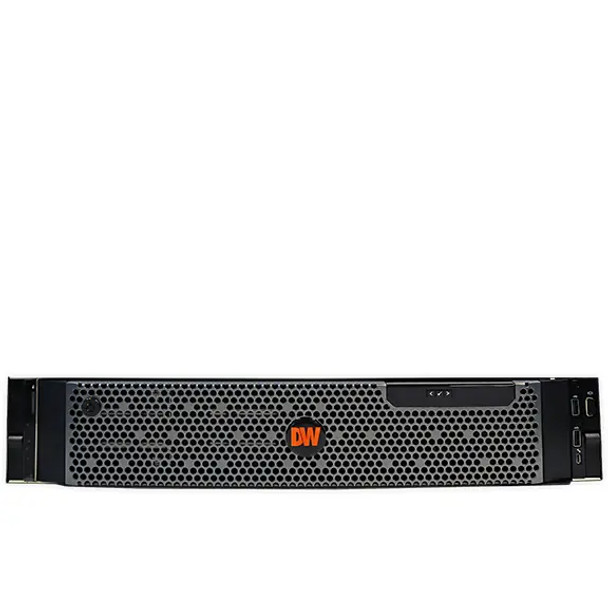

Digital Watchdog DW-BJRR2P200TS Video Server & NVR with 200TB Raw HDD Included, Windows Server OS
The Digital Watchdog DW-BJRR2P200TS is a powerful 2U rackmount video server and NVR built to support demanding IP surveillance systems. Designed for performance and reliability, it integrates dual Intel Xeon Silver processors and 32GB of system memory to manage high-throughput recording and streaming operations. The system includes Windows Server 2022 and comes preloaded with DW Spectrum IPVMS along with 8 recording licenses for rapid deployment. The operating system is installed on two 480GB NVMe SSDs configured in RAID1 for secure and fast booting. With support for up to twelve hot-swappable 3.5" SATA drives, the DW-BJRR2P200TS offers 200TB of raw storage capacity and 180TB usable capacity in RAID5 configuration. It features two onboard 1G and four additional 1G expansion Ethernet ports for flexible networking, a dedicated GPU, and mini DisplayPort output with an adapter. This NDAA/TAA-compliant system also includes a USB keyboard, mouse, and rail kit, and is backed by a 5-year warranty with next business day on-site hardware service following remote diagnosis.
Key Features:
- Preloaded with DW Spectrum IPVMS; includes 8 recording licenses
- Dual Intel Xeon Silver processors; supports high-throughput video recording
- Windows Server 2022 OS; enterprise-grade operating environment
- OS installed on 2 x 480GB NVMe SSDs in RAID1; fast and redundant boot drive setup
- 32GB system memory; ensures smooth operation for intensive workloads
- Supports up to 600Mbps of video recording throughput; ideal for large-scale deployments
- Supports 12x 3.5" SATA hot-swappable HDDs; easy maintenance and scalability
- 200TB raw storage capacity; provides 180TB usable capacity with RAID5 for redundancy
- Data RAID5 and RAID6 support; enhances data protection and system uptime
- 2x 1G onboard + 4x 1G expansion Ethernet ports; flexible and high-capacity network connectivity
- Mini DisplayPort video output; includes adapter for true HD compatibility
- Includes rail kit, USB keyboard and mouse; ready for immediate installation
- UL, FCC, CE, NDAA, and TAA certified; compliant with key industry standards
- 5-year warranty with next business day on-site hardware service (after remote diagnosis)
Downloads
Additional Information
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
|
Dimensions:
|
482 × 721.62 × 86.8 mm (18.97 × 28.4 × 3.41 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
12 SATA Ports
|
|
Max. Storage Capacity:
|
240 TB
|
|
Pre-Installed Storage:
|
200 TB
|
|
Recorder Technology:
|
Video Server
|
