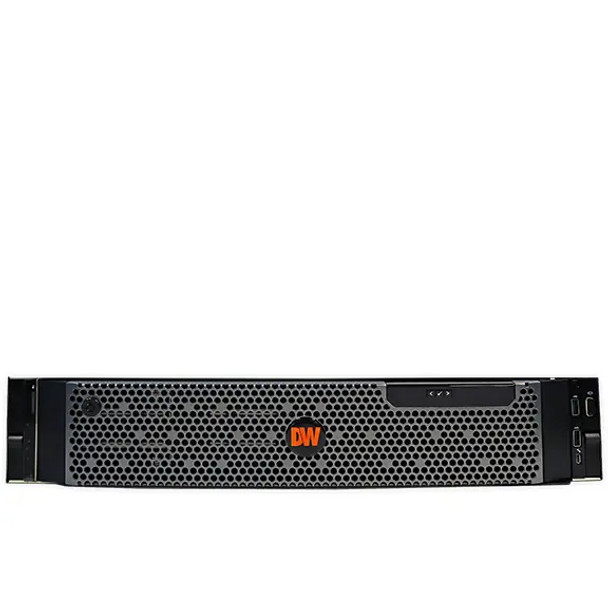

Digital Watchdog DW-BJRR2P200TS6 Video Server & NVR with 200TB Raw HDD Included, Windows Server OS
The Digital Watchdog DW-BJRR2P200TS6 is a robust 2U rackmount video server and NVR engineered for high-throughput IP surveillance systems. Featuring dual Intel Xeon Silver processors and 32GB of system memory, it ensures powerful performance and stability for demanding video environments. This unit comes preloaded with DW Spectrum IPVMS and includes 8 recording licenses, streamlining setup and reducing deployment time. The operating system, Windows Server 2022 STD, is securely installed on a pair of 480GB NVMe SSDs configured in RAID1 for system protection. With support for up to twelve hot-swappable 3.5" SATA hard drives, the server offers a raw storage capacity of 200TB and a usable capacity of 160TB under RAID6 configuration, ideal for retaining high-resolution video over long periods. It also features two onboard 1G Ethernet ports and four additional 1G expansion ports, a mini DisplayPort with adapter, and redundant power supplies. The system is NDAA and TAA compliant, UL-listed, and includes a 5-year warranty with next business day on-site hardware service following remote diagnostics.
Key Features:
- Preloaded with DW Spectrum IPVMS; includes 8 recording licenses
- Dual Intel Xeon Silver processors; ensures high-performance processing
- Windows Server 2022 STD operating system; enterprise-level security and stability
- OS on SSDs; 2 x 480GB NVMe SSDs in RAID1 configuration for reliability
- 32GB system memory; supports efficient video processing and multitasking
- Maximum video recording throughput; supports up to 600Mbps
- HDD capacity; supports 12x 3.5" SATA hot-swappable drives
- Storage configuration; 200TB raw, 160TB usable under RAID6
- RAID support; OS RAID1, data RAID5 and RAID6 for redundancy
- Network ports; 2x 1G onboard and 4x 1G on expansion board for flexible connectivity
- Video output; mini DisplayPort with adapter included
- Certifications; UL, FCC, CE, NDAA, TAA compliant
- Accessories; includes rail kit, USB keyboard and mouse
- Warranty; 5-year coverage with next business day on-site hardware service (after remote diagnosis)
Downloads
Additional Information
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
|
Dimensions:
|
482 × 721.62 × 86.8 mm (18.97 × 28.4 × 3.41 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
12 SATA Ports
|
|
Max. Storage Capacity:
|
240 TB
|
|
Pre-Installed Storage:
|
200 TB
|
|
Recorder Technology:
|
Video Server
|
