Description

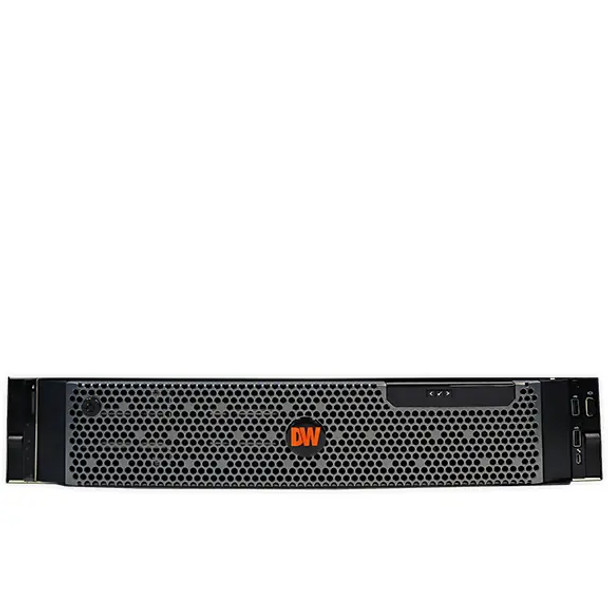

Digital Watchdog DW-BJRR2P220T Video Server & NVR with 220TB Raw HDD Included, Windows OS
The Digital Watchdog DW-BJRR2P220T is a robust 2U rackmount video server and NVR designed to deliver high-capacity recording performance for demanding IP surveillance environments. Powered by dual Intel Xeon Silver processors and equipped with 32GB of memory, it ensures reliable performance even under heavy video loads. This model includes Windows 10 IoT LTSC preinstalled on a pair of 480GB NVMe SSDs configured in RAID1 for fast and secure OS operations. It comes preloaded with DW Spectrum IPVMS and includes 8 recording licenses to support immediate deployment. With support for up to twelve 3.5" hot-swappable SATA drives, the DW-BJRR2P220T offers 220TB of raw storage capacity and approximately 200TB usable storage when configured with RAID5, making it an ideal solution for enterprise-level, long-term video retention. The system also features dual 1G onboard Ethernet ports and four 1G expansion ports, mini DisplayPort video output, and a redundant 800W power supply. This unit is NDAA/TAA compliant, UL-listed, and includes a 5-year warranty with next business day on-site service following remote diagnostics.
Key Features:
- Preloaded with DW Spectrum IPVMS; includes 8 recording licenses
- Dual Intel Xeon Silver processors; ensures powerful performance for intensive video tasks
- Windows 10 IoT LTSC operating system; reliable and long-term supported platform
- OS on 2 x 480GB NVMe SSDs in RAID1; provides fast boot time and redundancy
- 32GB system memory; allows smooth operation of high-volume video recording
- Supports up to 600Mbps of video recording throughput; handles large-scale camera systems
- Supports 12x 3.5" SATA hot-swappable HDDs; enables flexible storage expansion
- Raw storage capacity 220TB; approximately 200TB usable with RAID5
- RAID5 and RAID6 support; provides data protection and redundancy
- 2x 1G onboard + 4x 1G expansion Ethernet ports; ensures connectivity for large networks
- Mini DisplayPort video output with adapter; supports high-definition local display
- Includes rail kit, USB keyboard, and mouse; ready for deployment
- UL, FCC, CE, NDAA, and TAA certified; meets regulatory compliance standards
- 5-year warranty with next business day on-site hardware service; ensures long-term reliability and support
Downloads
Additional Information
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
|
Dimensions:
|
482 × 721.62 × 86.8 mm (18.97 × 28.4 × 3.41 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
12 SATA Ports
|
|
Max. Storage Capacity:
|
240 TB
|
|
Pre-Installed Storage:
|
220 TB
|
|
Recorder Technology:
|
Video Server
|
