Description
Digital Watchdog DW-BJRR2P220TLX Video Server & NVR with 220TB Raw HDD Included, Linux OS

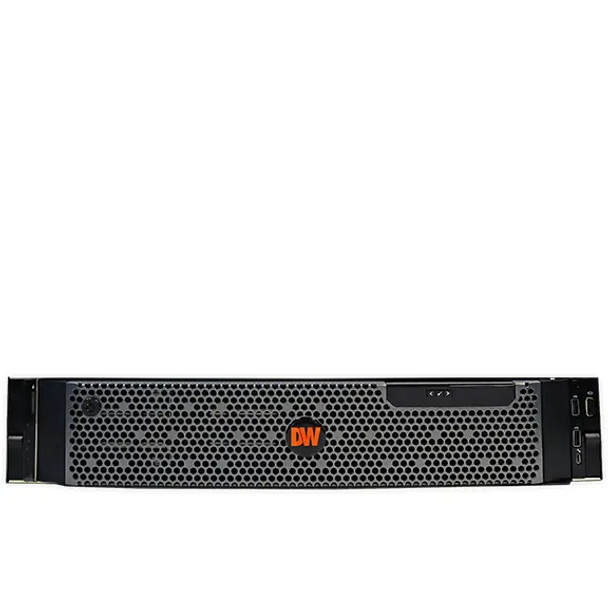

The Digital Watchdog DW-BJRR2P220TLX is a powerful 2U rackmount video server and NVR built for demanding IP surveillance environments. Featuring dual Intel Xeon Silver processors and 32GB of memory, it offers enterprise-grade performance and reliability. The unit runs on Ubuntu Linux OS, securely installed on dual 480GB NVMe SSDs configured in RAID1 for redundancy and high-speed boot capability. Preloaded with DW Spectrum IPVMS and including 8 recording licenses, this system is optimized for up to 600Mbps of recording throughput. The server supports up to twelve 3.5” hot-swappable SATA drives and comes equipped with 220TB raw storage and 200TB usable capacity (RAID5). For networking, it includes dual onboard 1G Ethernet ports plus four additional 1G expansion ports. Additional features include mini DisplayPort video out with adapter, support for RAID5/RAID6, and certifications including UL, FCC, CE, NDAA, and TAA. The server also includes a rail kit, USB keyboard and mouse, and is backed by a 5-year warranty with next business day on-site hardware service following remote diagnostics.
Key Features:
- Preloaded with DW Spectrum IPVMS; includes 8 recording licenses
- Dual Intel Xeon Silver processors; optimized for high-performance video recording
- Ubuntu Linux operating system; reliable and secure for enterprise deployments
- OS installed on 2 x 480GB NVMe SSDs in RAID1; ensures fast startup and fault tolerance
- 32GB system memory; supports intensive processing loads
- Supports up to 600Mbps recording throughput; ideal for high-resolution IP camera systems
- Supports 12x 3.5" SATA hot-swappable HDDs; provides maximum flexibility for storage
- 220TB raw HDD included, 200TB usable capacity with RAID5; suitable for long-term retention
- Data RAID5 and RAID6 support; ensures data redundancy and reliability
- 2x 1G onboard + 4x 1G expansion Ethernet ports; high availability network design
- Mini DisplayPort output with adapter; for convenient display connectivity
- Includes rail kit, USB keyboard and mouse; ready for immediate deployment
- UL, FCC, CE, NDAA, and TAA certified; compliant for regulated environments
- 5-year warranty with next business day on-site hardware service; after remote diagnostics for peace of mind
Downloads
Additional Information
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
|
Dimensions:
|
482 × 721.62 × 86.8 mm (18.97 × 28.4 × 3.41 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
12 SATA Ports
|
|
Max. Storage Capacity:
|
240 TB
|
|
Pre-Installed Storage:
|
220 TB
|
|
Recorder Technology:
|
Video Server
|
