Digital Watchdog DW-BJRR2P220TLX Video Server & NVR with 220TB Raw HDD Included, Linux OS

Digital Watchdog DW-BJRR2P220T6 Video Server & NVR with 220TB Raw HDD Included, Windows OS

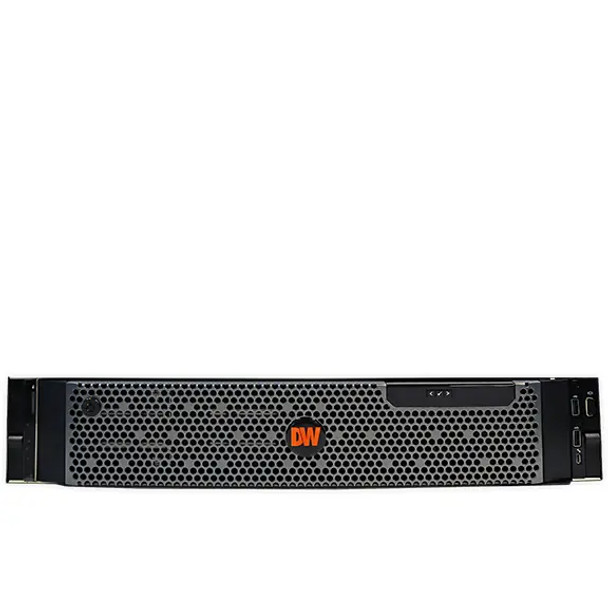

The Digital Watchdog DW-BJRR2P220T6 is a high-capacity 2U rackmount video server and NVR system engineered for demanding IP surveillance applications. Designed with dual Intel Xeon Silver processors and 32GB of system memory, it supports smooth operation under high-load conditions and is capable of handling up to 600Mbps of video throughput. The system comes preloaded with DW Spectrum IPVMS and includes 8 recording licenses, providing plug-and-play functionality for enterprise-grade deployments. The operating system is installed on two 480GB NVMe SSDs in a RAID1 configuration to maximize reliability and performance. Storage capabilities include support for up to twelve 3.5" SATA hot-swappable drives, and this model comes configured with 220TB of raw storage, delivering 180TB usable capacity under RAID6. This system includes two onboard 1G Ethernet ports and four additional 1G expansion ports, along with a mini DisplayPort video output and support for a dedicated GPU, ensuring flexibility and optimal performance for video display and client access. The DW-BJRR2P220T6 is NDAA/TAA compliant, UL-listed, and backed by a 5-year warranty with next business day on-site hardware service after remote diagnostics.

Key Features:

• Preloaded with DW Spectrum IPVMS; includes 8 recording licenses
• Dual Intel Xeon Silver processors; ensures high-performance processing for intensive video applications
• Windows 10 IoT LTSC operating system; reliable and secure platform for surveillance operations
• OS installed on 2 x 480GB NVMe SSDs in RAID1; enhances system stability and fast boot times
• 32GB system memory; supports efficient multitasking and data handling
• Supports up to 600Mbps of video recording throughput; ideal for high-resolution and multi-stream environments
• Supports 12x 3.5" SATA hot-swappable HDDs; simplifies maintenance and scalability
• 220TB raw storage capacity, 180TB usable under RAID6; provides ample space for long-term video retention
• Data RAID5 and RAID6 support; ensures data redundancy and protection
• 2x 1G onboard + 4x 1G expansion Ethernet ports; offers extensive network flexibility
• Mini DisplayPort video output with adapter included; supports high-resolution display options
• Includes rail kit, USB keyboard and mouse; complete installation and operation package
• UL, FCC, CE, NDAA, and TAA certified; meets stringent regulatory and compliance requirements
• 5-year warranty with next business day on-site hardware service (after remote diagnosis)
