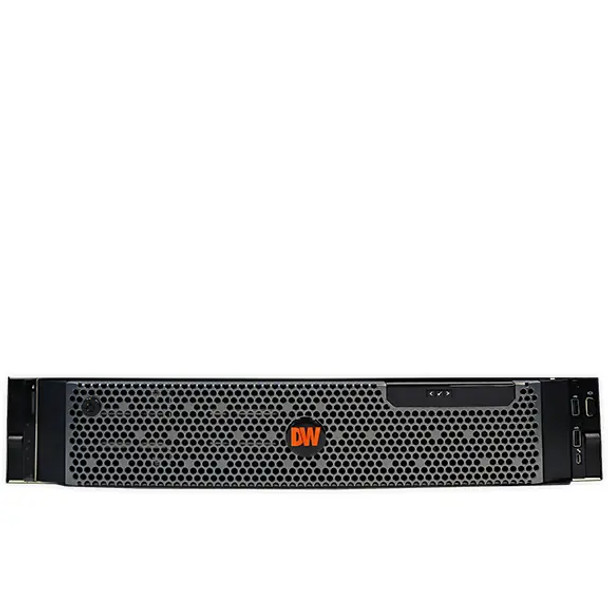

Digital Watchdog DW-BJRR2P220TLX6 Video Server & NVR with 220TB Raw HDD Included, Linux OS
The DW-BJRR2P220TLX6 from Digital Watchdog is a robust 2U rack-mounted video server engineered for enterprise-class surveillance environments requiring high throughput and RAID6-level data redundancy. With 220TB of raw storage and 180TB usable in a RAID6 configuration, this system supports up to 600Mbps of video recording throughput and accommodates large-scale, high-resolution camera deployments. Running on Ubuntu Desktop 20.04 LTS, it is equipped with dual Intel Xeon Silver processors, 32GB RAM, and an Nvidia Quadro GPU to enhance display and playback performance. The operating system resides on dual 480GB NVMe SSDs configured in RAID1. This server comes preloaded with DW Spectrum IPVMS and includes eight DW-SPECTRUMLSC004 recording licenses. With 12 hot-swappable 3.5" SATA drive bays, dual redundant power supplies, six Ethernet ports (2 onboard, 4 via expansion), and full NDAA/TAA compliance, the DW-BJRR2P220TLX6 is a secure, scalable solution backed by a 5-year limited warranty with next business day on-site service.
Key Features:
- 220TB HDD Included; 180TB usable in RAID6 configuration
- 8 Recording Licenses; includes 2 × DW-SPECTRUMLSC004 for scalable camera support
- Recording Throughput; up to 600Mbps for high-performance surveillance environments
- Operating System; Ubuntu Desktop 20.04 LTS on dual 480GB NVMe SSDs in RAID1
- Processor; Dual Intel Xeon Silver CPUs for stable and efficient data processing
- Memory; 32GB RAM ensures reliable multi-stream video management
- Drive Bays; supports up to 12 × 3.5" SATA hot-swappable drives
- Video Output; 1 × mini DisplayPort with adapter to true HD included
- Graphics; Nvidia Quadro GPU supports local video rendering and playback
- Remote Access; compatible with Windows, Ubuntu Linux, and macOS platforms
- Mobile Apps; iOS and Android support for remote access and monitoring
- System Compliance; ONVIF conformant, NDAA/TAA certified
- Certifications; UL, FCC, CE approved
- Warranty; 5-year limited warranty with next business day on-site service and Keep Your Hard Drive policy
Downloads
Additional Information
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
|
Dimensions:
|
482 × 721.62 × 86.8 mm (18.97" × 28.4" × 3.41")
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
12 SATA Ports
|
|
Max. Storage Capacity:
|
240 TB
|
|
Pre-Installed Storage:
|
220 TB
|
|
Recorder Technology:
|
Video Server
|
