Digital Watchdog DW-BJRR2P220TS6 Video Server & NVR with 220TB Raw HDD Included, Windows Server OS

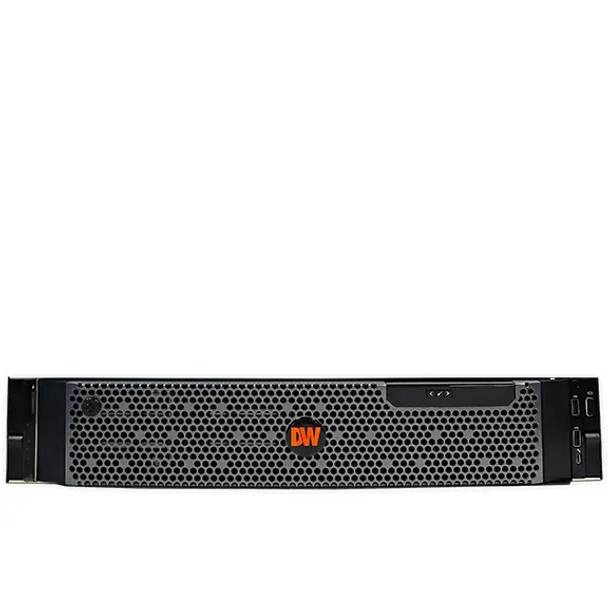

The Digital Watchdog DW-BJRR2P220TS6 is a robust 2U rackmount video server and NVR system designed for enterprise-grade IP video surveillance. Built for high-throughput environments, it features dual Intel Xeon Silver processors, 32GB of memory, and comes preloaded with DW Spectrum IPVMS, including 8 recording licenses. The operating system, Windows Server 2022 Standard, is installed on two 480GB NVMe SSDs in RAID1 configuration for optimal speed and redundancy. Supporting up to twelve 3.5" SATA hot-swappable drives, this system includes 220TB of raw storage with 180TB usable capacity configured under RAID6, providing exceptional storage performance and data protection. It features a mini DisplayPort with adapter, 2 onboard 1G Ethernet ports plus 4 additional on an expansion board, and is NDAA/TAA compliant with UL, FCC, and CE certifications. The system includes a rail kit, USB keyboard and mouse, and benefits from a 5-year warranty with next business day on-site hardware service following remote diagnosis.
Key Features:
- Preloaded with DW Spectrum IPVMS; includes 8 recording licenses for immediate deployment
- Dual Intel Xeon Silver processors; delivers powerful performance for multi-stream video processing
- Windows Server 2022 STD OS; enterprise-class operating system for secure and scalable deployments
- OS installed on 2 x 480GB NVMe SSDs in RAID1; ensures fast boot-up and system redundancy
- 32GB system memory; handles heavy workloads and multiple simultaneous video streams
- Supports up to 600Mbps of video recording throughput; ideal for large-scale surveillance networks
- Supports 12x 3.5" SATA hot-swappable HDDs; enables flexible and reliable storage management
- 220TB raw, 180TB usable HDD capacity (RAID6); optimized for extended retention and redundancy
- Data protection via RAID5 and RAID6 options; enhances fault tolerance
- 2x 1G onboard + 4x 1G expansion Ethernet ports; maximizes network connectivity
- Mini DisplayPort video output with adapter; supports high-definition display
- Includes rail kit, USB keyboard and mouse; complete installation and operation package
- UL, FCC, CE, NDAA, and TAA certified; meets strict compliance and quality standards
- 5-year warranty with next business day on-site hardware service; provides reliable long-term support
Downloads
Additional Information
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
|
Dimensions:
|
482 × 721.62 × 86.8 mm (18.97 × 28.4 × 3.41 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
12 SATA Ports
|
|
Max. Storage Capacity:
|
240 TB
|
|
Pre-Installed Storage:
|
220 TB
|
|
Recorder Technology:
|
Video Server
|
