Description

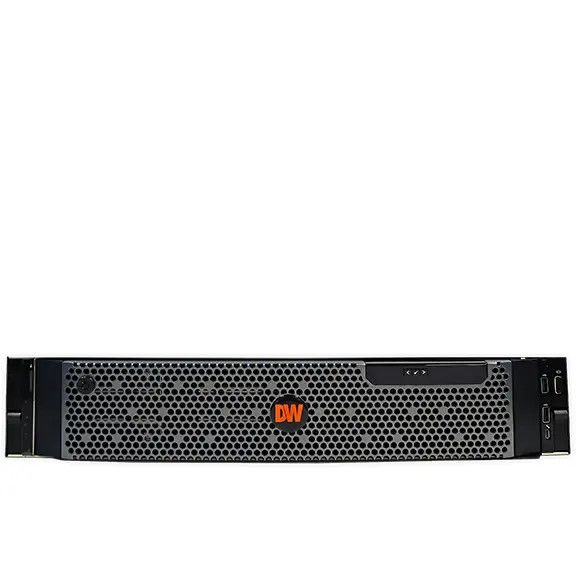

Digital Watchdog DW-BJRR2P240TLX Video Server & NVR with 240TB Raw HDD Included, Linux OS
The Digital Watchdog DW-BJRR2P240TLX is a high-performance 2U rackmount video server and NVR solution engineered for demanding IP surveillance deployments. Built with dual Intel Xeon Silver processors and 32GB of system memory, it offers the processing power required to handle up to 600Mbps of video recording throughput. The system runs on Ubuntu Linux 20.04 LTS and features an operating system installed on a pair of 480GB NVMe SSDs configured in RAID1 for enhanced reliability and fast boot performance. It supports up to twelve 3.5" SATA hot-swappable hard drives, delivering a total raw storage capacity of 240TB and 220TB usable storage under RAID5 configuration. The unit comes preloaded with DW Spectrum IPVMS and includes eight recording licenses, offering a robust and scalable recording environment. With 2x onboard 1G Ethernet ports and 4x additional 1G expansion ports, it provides flexible and redundant network connectivity. Additional hardware highlights include a mini DisplayPort with adapter, redundant 800W power supplies, a full rail kit, and USB peripherals. The system is NDAA/TAA compliant, UL-listed, and includes a 5-year warranty with next business day on-site hardware service following remote diagnostics.
Key Features:
- Preloaded with DW Spectrum IPVMS; includes 8 recording licenses
- Dual Intel Xeon Silver processors; provides powerful multi-stream video processing
- Linux Ubuntu 20.04 LTS operating system; optimized for performance and security
- OS installed on 2 x 480GB NVMe SSDs; RAID1 configuration ensures system stability
- 32GB system memory; supports high-resolution and multi-channel recording
- Supports up to 600Mbps recording throughput; accommodates dense camera environments
- Supports 12x 3.5" SATA hot-swappable HDDs; ease of maintenance and scalability
- Raw storage capacity 240TB; 220TB usable under RAID5 for data protection
- Data RAID5 and RAID6 supported; ensures redundancy and data integrity
- 2x 1G onboard + 4x 1G expansion Ethernet ports; robust and flexible networking
- Mini DisplayPort video output; adapter included for compatibility
- Includes rail kit, USB keyboard and mouse; ready-to-deploy package
- UL, FCC, CE, NDAA, and TAA certified; compliant with industry standards
- 5-year warranty with next business day on-site service; peace of mind after remote diagnostics
Downloads
Additional Information
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
Dimensions:
|
482 × 721.62 × 86.8 mm (18.97 × 28.4 × 3.41 in)
|
Environmental:
|
Indoor
|
Hard Drive Ports:
|
12 SATA Ports
|
Max. Storage Capacity:
|
240 TB
|
Pre-Installed Storage:
|
240 TB
|
Recorder Technology:
|
Video Server
|
