Description

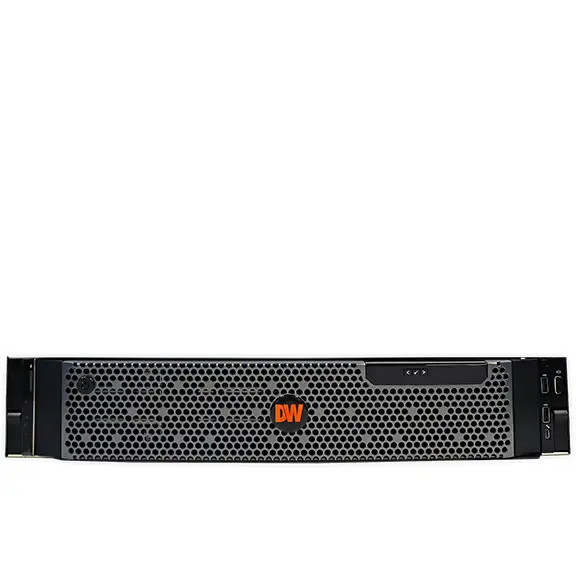

Digital Watchdog DW-BJRR2P240TLX6 Video Server & NVR with 240TB Raw HDD Included, Linux OS
The DW-BJRR2P240TLX6 from Digital Watchdog is a high-capacity 2U rack-mounted video server designed for mission-critical surveillance environments that require maximum storage and RAID6 redundancy. With 240TB of raw storage and 200TB usable in a RAID6 configuration, this server delivers up to 600Mbps of recording throughput, making it ideal for large-scale, high-resolution video systems. Running on Ubuntu Desktop 20.04 LTS, the system is powered by dual Intel Xeon Silver processors, 32GB RAM, and an Nvidia Quadro GPU for dependable display and video management. The OS is installed on dual 480GB NVMe SSDs configured in RAID1, ensuring reliable system operations. The server includes eight DW-SPECTRUMLSC004 licenses, supports up to 12 hot-swappable 3.5" SATA drives, and features dual redundant 800W power supplies and six Ethernet ports (2 onboard, 4 via expansion). NDAA/TAA compliant and UL-listed, the DW-BJRR2P240TLX6 includes a 5-year limited warranty with next business day on-site service.
Key Features:
- 240TB HDD Included; 200TB usable in RAID6 configuration
- 8 Recording Licenses; includes 2 × DW-SPECTRUMLSC004 for flexible multi-channel support
- Recording Throughput; supports up to 600Mbps for enterprise-grade surveillance systems
- Operating System; Ubuntu Desktop 20.04 LTS on dual 480GB NVMe SSDs in RAID1
- Processor; Dual Intel Xeon Silver CPUs for high-efficiency processing
- Memory; 32GB RAM supports intensive recording and VMS tasks
- Drive Bays; supports up to 12 × 3.5" SATA hot-swappable hard drives
- Video Output; 1 × mini DisplayPort with adapter to true HD included
- Graphics; Nvidia Quadro GPU for enhanced video playback and monitoring
- Remote Access; compatible with Windows, Ubuntu Linux, and macOS clients
- Mobile Apps; supports iOS and Android platforms
- System Compliance; ONVIF conformant and NDAA/TAA certified
- Certifications; UL, FCC, CE approved for commercial and government use
- Warranty; 5-year limited warranty with next business day on-site hardware service and Keep Your Hard Drive program
Downloads
Additional Information
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
|
Dimensions:
|
482 × 721.62 × 86.8 mm (18.97" × 28.4" × 3.41")
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
12 SATA Ports
|
|
Max. Storage Capacity:
|
240 TB
|
|
Pre-Installed Storage:
|
240 TB
|
|
Recorder Technology:
|
Video Server
|
