Digital Watchdog DW-BJRR2P240TS Video Server & NVR with 240TB Raw HDD Included, Windows Server OS

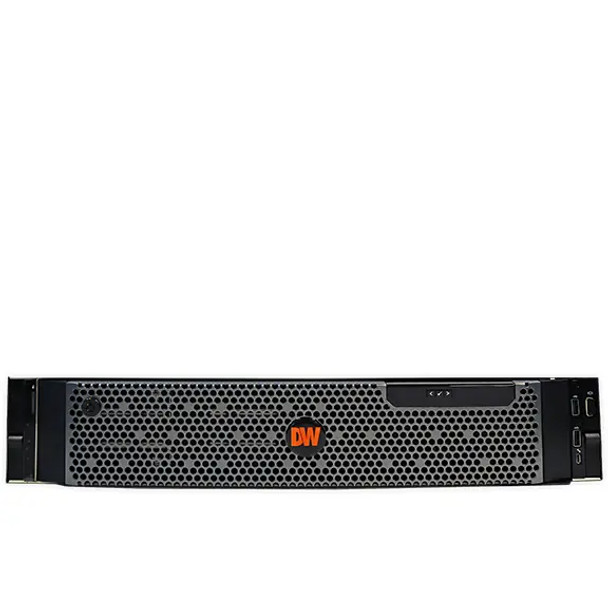

The Digital Watchdog DW-BJRR2P240TS is a powerful 2U rackmount video server and NVR engineered for high-performance IP surveillance environments. Preloaded with DW Spectrum IPVMS and eight recording licenses, the system is ready for immediate deployment. It operates on Windows Server 2022 Standard, installed on dual 480GB NVMe SSDs configured in RAID1 for optimal speed and redundancy. The server is equipped with dual Intel Xeon Silver processors, 32GB of memory, and supports up to twelve 3.5" SATA hot-swappable hard drives, offering 240TB of raw storage and 220TB usable capacity (RAID5). Designed for scalability and reliability, it includes redundant power supplies, dual onboard and expansion network ports, and a dedicated Nvidia Quadro GPU. Certified for UL, FCC, CE, NDAA, and TAA compliance, it is ideal for large-scale installations demanding long-term data retention and uninterrupted performance. A rail kit, USB keyboard, and mouse are included, and the system is backed by a 5-year warranty with next business day on-site hardware service after remote diagnostics.
Key Features:
- Preloaded with DW Spectrum IPVMS; includes 8 recording licenses
- Dual Intel Xeon Silver processors; ensures high-throughput performance
- Windows Server 2022 Standard; secure and robust server environment
- OS on 2 x 480GB NVMe SSDs (RAID1); fast boot and enhanced reliability
- 32GB system memory; supports intensive processing and multitasking
- Supports up to 600Mbps of recording throughput; handles demanding video loads
- 12x 3.5" SATA hot-swappable HDDs; allows easy maintenance and expansion
- 240TB raw / 220TB usable storage (RAID5); large capacity for long-term retention
- RAID options include OS RAID1 and data RAID5, RAID6; ensures data protection
- 2x 1G onboard + 4x 1G expansion Ethernet ports; flexible network configuration
- Mini DisplayPort video output with adapter; convenient display connectivity
- Includes rail kit, USB keyboard, and mouse; ready for rackmount deployment
- UL, FCC, CE, NDAA, and TAA certified; meets government and enterprise standards
- 5-year warranty with next business day on-site hardware service; minimizes downtime
Downloads
Additional Information
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
|
Dimensions:
|
482 × 721.62 × 86.8 mm (18.97 × 28.4 × 3.41 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
12 SATA Ports
|
|
Max. Storage Capacity:
|
240 TB
|
|
Pre-Installed Storage:
|
240 TB
|
|
Recorder Technology:
|
Video Server
|
