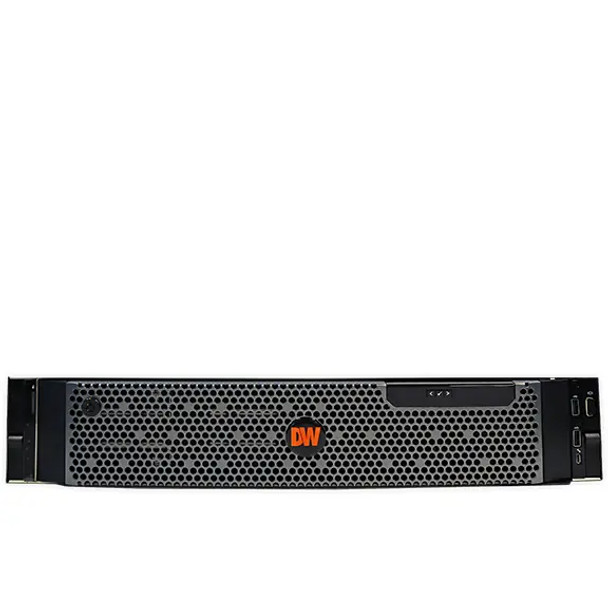

Digital Watchdog DW-BJRR2P80TS Video Server & NVR with 80TB Raw HDD Included, Windows Server OS
The DW-BJRR2P80TS from Digital Watchdog is a high-performance 2U rack-mounted video server built for enterprise surveillance environments that require secure, large-capacity video storage and dependable throughput. This model includes 80TB of raw storage and delivers 60TB usable in a RAID5 configuration, optimized for multi-stream high-resolution camera deployments. Operating on Windows Server 2022 Standard and powered by dual Intel Xeon Silver processors with 32GB RAM, the server is capable of handling up to 600Mbps of video throughput. It features DW Spectrum IPVMS pre-installed and comes bundled with eight DW Spectrum recording licenses (2 × DW-SPECTRUMLSC004). The system is equipped with dual 480GB NVMe SSDs in RAID1 for OS reliability, 12 × 3.5" SATA hot-swappable drive bays, Nvidia Quadro GPU, dual 800W redundant power supplies, and multiple Ethernet ports. UL-listed, NDAA/TAA compliant, and supported by a 5-year limited warranty with next business day on-site service, the DW-BJRR2P80TS is built for high-demand, scalable deployments.
Key Features:
- 80TB HDD Included; 60TB usable in RAID5 configuration
- 8 Recording Licenses; includes 2 × DW-SPECTRUMLSC004 for out-of-the-box multi-channel setup
- Recording Throughput; supports up to 600Mbps for high-bandwidth surveillance networks
- Operating System; Windows Server 2022 Standard with dual 480GB NVMe SSDs in RAID1
- Processor; Dual Intel Xeon Silver CPUs for enterprise-grade parallel processing
- Memory; 32GB RAM ensures stability for large-scale recording and monitoring
- Drive Bays; supports up to 12 × 3.5" SATA hot-swappable drives
- Video Output; 1 × mini DisplayPort (adapter to true HD included)
- Graphics; Nvidia Quadro GPU for enhanced video rendering and monitoring
- Remote Access; cross-platform compatibility with Windows, Linux Ubuntu, and macOS
- Mobile App Support; iOS and Android ready for mobile surveillance access
- System Compliance; ONVIF conformant and NDAA/TAA certified
- Certifications; UL, FCC, CE approved for commercial use
- Warranty; 5-year limited warranty with next business day on-site service and Keep Your Hard Drive support
Downloads
Additional Information
|
Compliance:
|
NDAA Compliant
|
|
Hard Drive Ports:
|
12 SATA Ports
|
|
Max. Storage Capacity:
|
240 TB
|
|
Pre-Installed Storage:
|
80 TB
|
|
Recorder Technology:
|
Video Server
|
|
Warranty:
|
5-year Manufacturer Warranty
|
