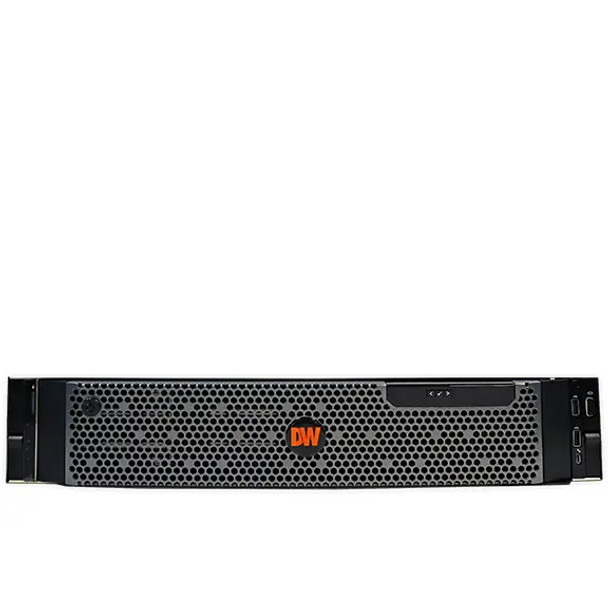

Digital Watchdog DW-BJRR2U120TLX6 Video Server & NVR with 120TB Raw HDD Included, Linux OS
The DW-BJRR2U120TLX6 from Digital Watchdog is a 2U rack-mounted Linux-based video server designed for high-capacity, enterprise-class surveillance systems. Equipped with 120TB of raw storage and 80TB usable in a RAID6 configuration, it supports up to 600Mbps of recording throughput—ideal for handling multiple high-resolution IP cameras. Running on Ubuntu Desktop 20.04 LTS, the server is powered by dual Intel Xeon Silver processors, 32GB RAM, and a dedicated Nvidia Quadro GPU for optimized video rendering. The OS is installed on dual 480GB NVMe SSDs configured in RAID1 to ensure system reliability. Preloaded with DW Spectrum IPVMS and bundled with eight DW-SPECTRUMLSC004 recording licenses, the system supports up to 12 × 3.5" SATA hot-swappable drives and includes six Ethernet ports and dual 800W redundant power supplies. NDAA/TAA compliant and UL-listed, the DW-BJRR2U120TLX6 includes a 5-year limited warranty with next business day on-site support.
Key Features:
- 120TB HDD Included; 80TB usable in RAID6 configuration
- 8 Recording Licenses; includes 2 × DW-SPECTRUMLSC004 for high-capacity deployments
- Recording Throughput; supports up to 600Mbps for multi-stream high-resolution systems
- Operating System; Ubuntu Desktop 20.04 LTS on dual 480GB NVMe SSDs in RAID1
- Processor; Dual Intel Xeon Silver CPUs deliver enterprise-grade performance
- Memory; 32GB RAM ensures smooth operation under intensive video loads
- Drive Bays; supports up to 12 × 3.5" SATA hot-swappable hard drives
- Video Output; 1 × mini DisplayPort with adapter to true HD included
- Graphics; Nvidia Quadro GPU for high-performance playback and configuration
- Remote Access; compatible with Windows, Ubuntu Linux, and macOS clients
- Mobile App Support; iOS and Android compatibility for mobile monitoring
- System Compliance; ONVIF conformant, NDAA/TAA certified
- Certifications; UL, FCC, CE approved
- Warranty; 5-year limited warranty with next business day on-site service and Keep Your Hard Drive policy
Downloads
Additional Information
|
Compliance:
|
NDAA Compliant
|
|
Hard Drive Ports:
|
12 SATA Ports
|
|
Max. Storage Capacity:
|
240 TB
|
|
Pre-Installed Storage:
|
120 TB
|
|
Recorder Technology:
|
Video Server
|
|
Warranty:
|
5-year Manufacturer Warranty
|
