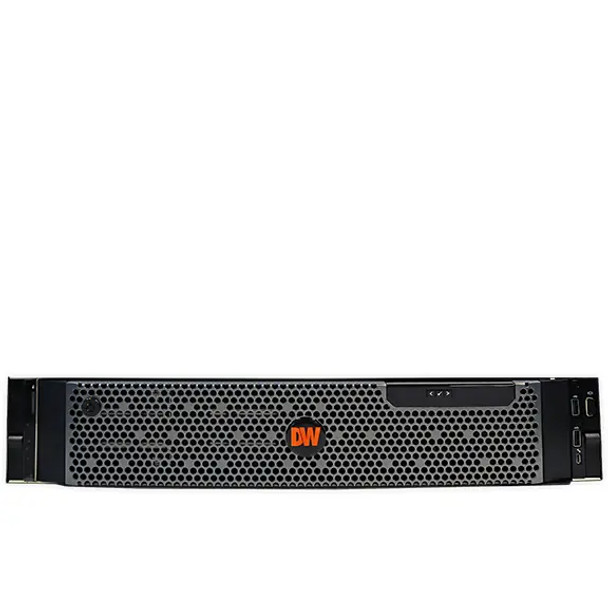

Digital Watchdog DW-BJRR2U140TLX6 Video Server & NVR with 140TB Raw HDD Included, Linux OS
The DW-BJRR2U140TLX6 from Digital Watchdog is a 2U rack-mounted video server designed for large-scale surveillance installations demanding high-capacity storage and RAID6 data protection. Offering 140TB of raw storage and 100TB usable in a RAID6 configuration, this Linux-based system supports up to 600Mbps of recording throughput. It runs on Ubuntu Desktop 20.04 LTS and is equipped with dual Intel Xeon Silver processors, 32GB of RAM, and a dedicated Nvidia Quadro GPU to support smooth local video display. The OS is hosted on dual 480GB NVMe SSDs in RAID1 to ensure system reliability. Preloaded with DW Spectrum IPVMS and bundled with eight DW-SPECTRUMLSC004 recording licenses, the server supports up to 12 hot-swappable 3.5" SATA drives, has six Ethernet ports (2 onboard, 4 via expansion), and dual 800W redundant power supplies. Fully NDAA/TAA compliant and UL-listed, the system includes a 5-year limited warranty with next business day on-site support.
Key Features:
- 140TB HDD Included; 100TB usable in RAID6 configuration
- 8 Recording Licenses; includes 2 × DW-SPECTRUMLSC004 for scalable IP camera support
- Recording Throughput; up to 600Mbps for high-resolution surveillance networks
- Operating System; Ubuntu Desktop 20.04 LTS on dual 480GB NVMe SSDs (RAID1)
- Processor; Dual Intel Xeon Silver CPUs for efficient data processing
- Memory; 32GB RAM provides stability under heavy recording workloads
- Drive Bays; supports up to 12 × 3.5" SATA hot-swappable hard drives
- Video Output; 1 × mini DisplayPort with adapter to true HD included
- Graphics; Nvidia Quadro GPU for optimized local display and playback
- Remote Access; compatible with Windows, Ubuntu Linux, and macOS systems
- Mobile Apps; iOS and Android support for remote viewing
- System Compliance; ONVIF conformant, NDAA/TAA certified
- Certifications; UL, FCC, CE approved
- Warranty; 5-year limited warranty with next business day on-site service and Keep Your Hard Drive policy
Downloads
Additional Information
|
Compliance:
|
NDAA Compliant
|
|
Hard Drive Ports:
|
12 SATA Ports
|
|
Max. Storage Capacity:
|
240 TB
|
|
Pre-Installed Storage:
|
140 TB
|
|
Recorder Technology:
|
Video Server
|
|
Warranty:
|
5-year Manufacturer Warranty
|
