Description

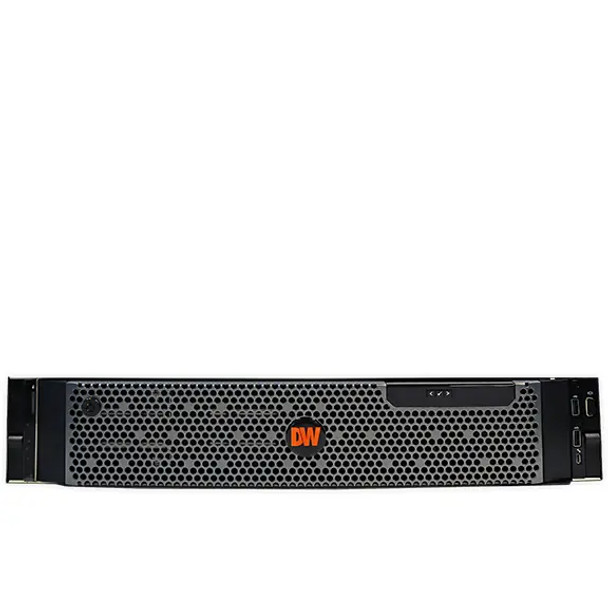

Digital Watchdog DW-BJRR2U200TLX6 Video Server & NVR with 200TB Raw HDD Included, Linux OS
The DW-BJRR2U200TLX6 from Digital Watchdog is a 2U rack-mounted Linux-based video server designed for enterprise surveillance environments that demand maximum storage capacity and RAID6 data protection. With 200TB of raw storage and 160TB usable in a RAID6 configuration, this server supports up to 600Mbps of recording throughput, ideal for large-scale, high-resolution IP camera systems. Running on Ubuntu Desktop 20.04 LTS, it features dual Intel Xeon Silver processors, 32GB of RAM, and a dedicated Nvidia Quadro GPU for enhanced display and playback performance. The OS is installed on dual 480GB NVMe SSDs configured in RAID1 for maximum system stability. The system comes preloaded with DW Spectrum IPVMS and includes eight DW-SPECTRUMLSC004 recording licenses. With support for 12 hot-swappable 3.5" SATA drives, dual redundant 800W power supplies, and six Ethernet ports (2 onboard, 4 via expansion), the DW-BJRR2U200TLX6 is NDAA/TAA compliant, UL-listed, and backed by a 5-year limited warranty with next business day on-site service.
Key Features:
- 200TB HDD Included; 160TB usable in RAID6 configuration
- 8 Recording Licenses; includes 2 × DW-SPECTRUMLSC004 for flexible system deployment
- Recording Throughput; supports up to 600Mbps for demanding IP video networks
- Operating System; Ubuntu Desktop 20.04 LTS on dual 480GB NVMe SSDs in RAID1
- Processor; Dual Intel Xeon Silver CPUs for enterprise-grade processing
- Memory; 32GB RAM ensures smooth operation of video management and analytics
- Drive Bays; supports up to 12 × 3.5" SATA hot-swappable hard drives
- Video Output; 1 × mini DisplayPort with adapter to true HD included
- Graphics; Nvidia Quadro GPU enables high-quality local display and playback
- Remote Access; compatible with Windows, Ubuntu Linux, and macOS platforms
- Mobile Apps; supports iOS and Android for remote monitoring
- System Compliance; ONVIF conformant, NDAA/TAA certified
- Certifications; UL, FCC, CE approved
- Warranty; 5-year limited warranty with next business day on-site support and Keep Your Hard Drive policy
Downloads
Additional Information
|
Compliance:
|
NDAA Compliant
|
|
Hard Drive Ports:
|
12 SATA Ports
|
|
Max. Storage Capacity:
|
240 TB
|
|
Pre-Installed Storage:
|
200 TB
|
|
Recorder Technology:
|
Video Server
|
|
Warranty:
|
5-year Manufacturer Warranty
|
