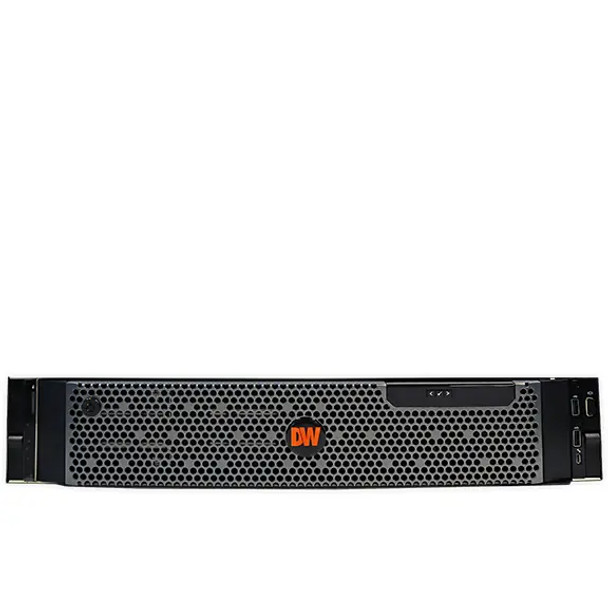

Digital Watchdog DW-BJRR2U220TLX6 Video Server & NVR with 220TB Raw HDD Included, Linux OS
The DW-BJRR2U220TLX6 from Digital Watchdog is a 2U rack-mounted video server designed for enterprise surveillance systems that demand massive storage, Linux stability, and RAID6 data protection. With 220TB of raw storage and 180TB usable in a RAID6 configuration, this system supports up to 600Mbps of recording throughput, making it ideal for managing extensive high-resolution IP video deployments. Operating on Ubuntu Desktop 20.04 LTS, the server is powered by dual Intel Xeon Silver processors, 32GB of RAM, and a dedicated Nvidia Quadro GPU for local display and system configuration. The OS is securely installed on dual 480GB NVMe SSDs in RAID1. The system includes eight DW-SPECTRUMLSC004 licenses, supports 12 × 3.5" SATA hot-swappable drive bays, features six Ethernet ports (2 onboard, 4 via expansion), and includes dual redundant 800W power supplies. NDAA/TAA compliant and UL-listed, the DW-BJRR2U220TLX6 is backed by a 5-year limited warranty with next business day on-site service.
Key Features:
- 220TB HDD Included; 180TB usable in RAID6 configuration
- 8 Recording Licenses; includes 2 × DW-SPECTRUMLSC004 for out-of-the-box scalability
- Recording Throughput; up to 600Mbps for large-scale surveillance environments
- Operating System; Ubuntu Desktop 20.04 LTS on dual 480GB NVMe SSDs in RAID1
- Processor; Dual Intel Xeon Silver CPUs for enterprise-grade multitasking
- Memory; 32GB RAM supports smooth video management and analytics
- Drive Bays; supports up to 12 × 3.5" SATA hot-swappable drives
- Video Output; 1 × mini DisplayPort with adapter to true HD included
- Graphics; Nvidia Quadro GPU for local playback and display enhancements
- Remote Access; compatible with Windows, Ubuntu Linux, and macOS systems
- Mobile App Support; iOS and Android compatibility for remote video access
- System Compliance; ONVIF conformant, NDAA/TAA certified
- Certifications; UL, FCC, CE approved
- Warranty; 5-year limited warranty with next business day on-site hardware service and Keep Your Hard Drive policy
Downloads
Additional Information
|
Compliance:
|
NDAA Compliant
|
|
Hard Drive Ports:
|
12 SATA Ports
|
|
Max. Storage Capacity:
|
240 TB
|
|
Pre-Installed Storage:
|
220 TB
|
|
Recorder Technology:
|
Video Server
|
|
Warranty:
|
5-year Manufacturer Warranty
|
