Description

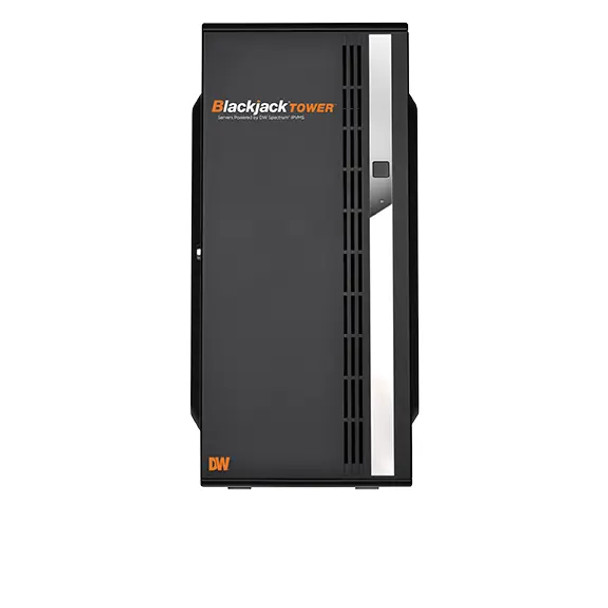

Digital Watchdog DW-BJTR715140TS Video Server & NVR with 140TB Raw HDD Included, Windows Server OS
The DW-BJTR715140TS from Digital Watchdog is a high-capacity, professional-grade video server purpose-built for demanding IP surveillance applications. Featuring 140TB of raw storage and up to 120TB usable in a RAID5 configuration, it ensures maximum recording reliability and extended retention. This model comes equipped with Windows Server 2019 Standard, powered by an Intel Core i7 processor and 16GB RAM to deliver consistent performance across multiple high-resolution camera streams, with support for up to 600Mbps of recording throughput. It includes four DW Spectrum recording licenses (DW-SPECTRUMLSC004) and is preloaded with DW Spectrum VMS, providing an efficient, scalable, and license-flexible platform without annual fees. Designed for seamless integration, the server supports all ONVIF conformant cameras and provides hot-swappable 3.5" drive bays, triple display output options (one active at a time), and full remote access across all major platforms. With UL, FCC, and CE certifications and a 5-year limited warranty, this NDAA/TAA-compliant solution is built for long-term reliability in enterprise surveillance environments.
Key Features:
- 140TB HDD Included; 120TB usable in RAID5 configuration
- 4 Recording Licenses; includes DW-SPECTRUMLSC004 for adaptable recording setup
- Recording Throughput; up to 600Mbps for smooth, multi-stream video capture
- Operating System; Windows Server 2019 Standard for enterprise compatibility
- Processor; Intel Core i7 provides reliable performance across workloads
- Memory; 16GB RAM supports simultaneous high-resolution video processing
- Drive Bays; holds up to 7 × 3.5" SATA hot-swappable hard drives
- Video Outputs; offers true HD, DVI, and DisplayPort output (one active at once)
- Graphics; onboard Intel Graphics for seamless playback and display
- Remote Access; accessible from Windows, Linux Ubuntu, and macOS environments
- Mobile Access; supports iOS and Android for on-the-go surveillance
- System Compliance; ONVIF conformant and NDAA/TAA compliant for broad deployment
- Certifications; UL, FCC, CE approved for regulatory assurance
- Warranty; 5-year limited warranty supports long-term system stability
Downloads
Additional Information
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
|
Dimensions:
|
218.6 × 485.8 × 427.5 mm (8.6 × 19.12 × 16.83 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
7 SATA Ports
|
|
Max. Storage Capacity:
|
140TB
|
|
Pre-Installed Storage:
|
140 TB
|
|
Recorder Technology:
|
Video Server
|
