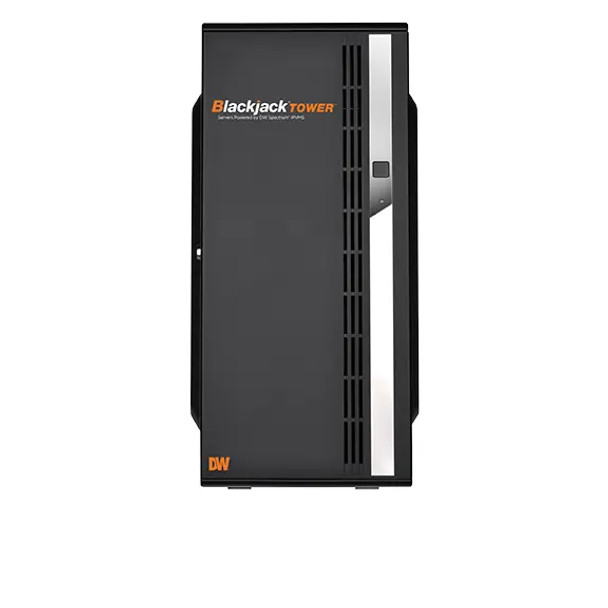

Digital Watchdog DW-BJTR71580T Video Server & NVR with 80TB Raw HDD Included, Windows OS
The Digital Watchdog DW-BJTR71580T is a full tower video server and NVR system engineered for high-performance IP video surveillance applications. This unit is preloaded with DW Spectrum IPVMS and comes with 4 recording licenses, allowing for fast deployment and immediate usability. Powered by an Intel Core i7 processor and 16GB of memory, the system ensures reliable processing and multitasking capabilities. The operating system is installed on a dedicated SSD for improved stability and performance. With 7 hot-swappable 3.5" SATA HDD bays and 80TB of raw storage configured in RAID5, it offers 60TB of usable capacity for long-term retention of high-resolution footage. The server supports up to 600Mbps recording throughput, and includes dual 1G Ethernet ports, comprehensive display connectivity, and is certified for UL, FCC, CE, NDAA, and TAA standards. A 5-year limited warranty and bundled USB keyboard and mouse make this system a secure and complete surveillance solution.
Key Features:
- Preloaded with DW Spectrum IPVMS; includes 4 recording licenses
- Intel Core i7 processor; delivers stable and efficient performance
- Windows 10 OS; provides familiar and enterprise-ready environment
- OS installed on SSD; enhances system responsiveness and stability
- 16GB memory; enables smooth multitasking and reliable performance
- Supports up to 600Mbps throughput; ideal for large-scale IP surveillance
- 7x 3.5" SATA hot-swappable HDD bays; simplifies maintenance and expansion
- 60TB usable storage in RAID5; ensures efficient data retention and protection
- Data protection via RAID5 and RAID6; provides redundancy and reliability
- 2x 1G Ethernet ports; supports seamless network connectivity
- HDMI, DVI, and DisplayPort outputs; supports one display output at a time
- USB mouse and keyboard included; ready for immediate deployment
- UL, FCC, CE, NDAA, and TAA certified; ensures regulatory compliance
- 5-year limited warranty; provides long-term hardware assurance
Downloads
Additional Information
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
|
Dimensions:
|
218.6 × 485.8 × 427.5 mm (8.6 × 19.12 × 16.83 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
7 SATA Ports
|
|
Max. Storage Capacity:
|
140TB
|
|
Recorder Technology:
|
Video Server
|
