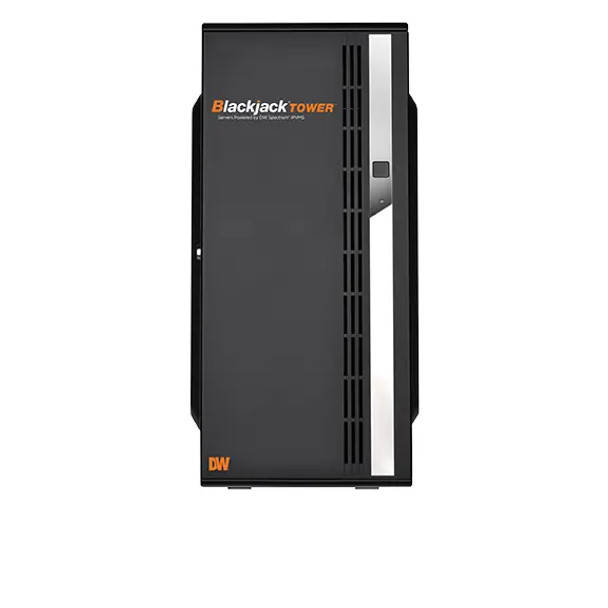

Digital Watchdog DW-BJTR71580TLX Video Server & NVR with 80TB Raw HDD Included, Linux OS
The Digital Watchdog DW-BJTR71580TLX is a full-size tower video server and NVR system engineered for advanced IP surveillance environments. Powered by an Intel Core i7 processor and equipped with 16GB of memory, this server ensures consistent and responsive performance. It runs on Ubuntu 22.04 LTS and comes preloaded with DW Spectrum IPVMS, including four recording licenses for immediate operation. The operating system resides on a dedicated SSD, while the unit accommodates up to seven 3.5" SATA hot-swappable hard drives. With a total installed HDD capacity of 80TB and a usable capacity of 60TB in RAID5 configuration, it offers secure and scalable data storage. The server supports up to 600Mbps recording throughput and provides essential features such as RAID5 and RAID6 support, true HD video output, and dual 1G Ethernet connectivity. Designed and assembled in the U.S.A., it meets UL, FCC, CE, NDAA, and TAA standards and is backed by a 5-year limited warranty.
Key Features:
- Preloaded with DW Spectrum IPVMS; includes 4 recording licenses
- Intel Core i7 processor; ensures reliable and efficient system operation
- Linux Ubuntu 22.04 LTS OS; stable and secure environment for surveillance tasks
- OS installed on SSD; optimizes system responsiveness
- 16GB system memory; supports multitasking and high-resolution streams
- Up to 600Mbps throughput; accommodates demanding recording workloads
- 7x 3.5" SATA hot-swappable HDD bays; simplifies storage management
- 80TB HDD included; delivers 60TB usable storage with RAID5
- RAID5 and RAID6 support; protects data integrity and system availability
- 2x 1G Ethernet ports; enables dependable network performance
- True HD, DVI, and DisplayPort video outputs; flexible monitor options
- Includes USB keyboard and mouse; ready for out-of-box use
- UL, FCC, CE, NDAA, and TAA compliant; satisfies regulatory and procurement requirements
- 5-year limited warranty; ensures long-term reliability and support
Downloads
Additional Information
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
|
Dimensions:
|
218.6 × 485.8 × 427.5 mm (8.6 × 19.12 × 16.83 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
7 SATA Ports
|
|
Max. Storage Capacity:
|
140TB
|
|
Pre-Installed Storage:
|
80 TB
|
|
Recorder Technology:
|
Video Server
|
