Description
Digital Watchdog DW-BJTR716100T Video Server & NVR with 100TB Raw HDD Included, Windows OS

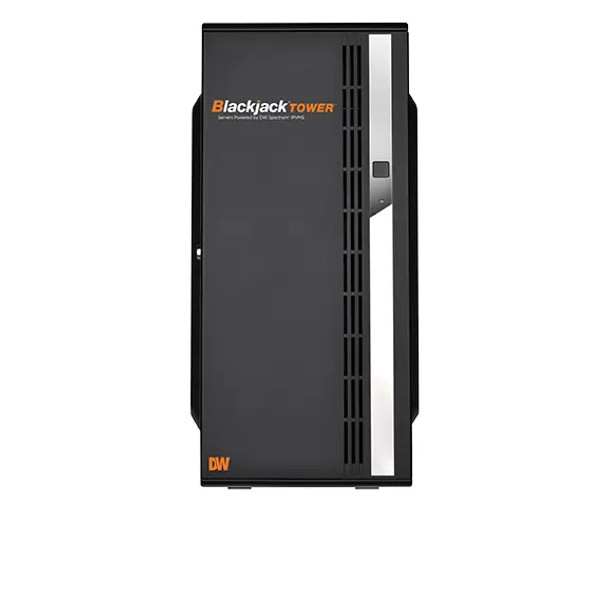

The DW-BJTR716100T from Digital Watchdog is a full-size tower video server engineered for high-performance video surveillance deployments requiring RAID6 redundancy and large storage capacity. This model includes 100TB of raw storage, with 60TB usable in a RAID6 configuration, and supports up to 600Mbps of recording throughput (420Mbps when using RAID6). It is preloaded with DW Spectrum IPVMS and includes four recording licenses (1 × DW-SPECTRUMLSC004), providing immediate multi-camera deployment capability. The server is powered by an Intel Core i7 processor, 16GB of RAM, and onboard Intel graphics, and runs on Windows 11 IoT Enterprise OS. It features hot-swappable drive bays for up to 7 × 3.5" SATA HDDs, as well as multiple video output options including True HD, DVI, and DisplayPort (one output active at a time). The system is NDAA/TAA compliant, UL-listed, and includes a 5-year limited warranty.
Key Features:
- 100TB HDD Included; 60TB usable in RAID6 configuration
- 4 Recording Licenses; includes 1 × DW-SPECTRUMLSC004 for multi-camera deployment
- Recording Throughput; supports up to 600Mbps (420Mbps max with RAID6)
- Operating System; Windows 11 IoT Enterprise OS installed on SSD
- Processor; Intel Core i7 CPU for smooth and reliable performance
- Memory; 16GB RAM enables efficient video recording and VMS operation
- Drive Bays; supports up to 7 × 3.5" SATA hot-swappable hard drives
- Video Outputs; 1 × True HD, 1 × DVI, 1 × DisplayPort (only one active at a time)
- Graphics; onboard Intel graphics for display and system configuration
- Remote Access; compatible with Windows, Ubuntu Linux, and macOS platforms
- Mobile Apps; iOS and Android support for remote monitoring
- System Compliance; ONVIF conformant, NDAA/TAA certified
- Certifications; UL, FCC, CE approved
- Warranty; 5-year limited warranty with recommended external UPS for best results
Downloads
Additional Information
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
|
Dimensions:
|
218.6 × 485.8 × 427.5 mm (8.6 × 19.12 × 16.83 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
7 SATA Ports
|
|
Max. Storage Capacity:
|
140TB
|
|
Pre-Installed Storage:
|
100 TB
|
|
Recorder Technology:
|
Video Server
|
