Description

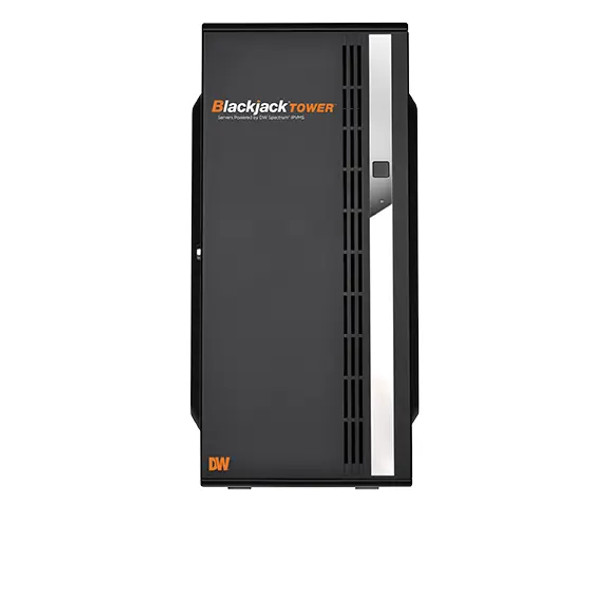

Digital Watchdog DW-BJTR716140TS Video Server & NVR with 140TB Raw HDD Included, Windows Server OS
The DW-BJTR716140TS from Digital Watchdog is a robust enterprise-grade video server tailored for large-scale surveillance systems requiring secure and high-capacity video storage. This unit offers 140TB of raw storage with 100TB usable in a RAID6 configuration, delivering advanced data redundancy for mission-critical applications. Supporting up to 420Mbps recording throughput under RAID6, it is ideal for handling high-resolution, multi-sensor IP camera streams. Preloaded with DW Spectrum VMS and bundled with four DW-SPECTRUMLSC004 licenses, the server is ready for immediate deployment without ongoing license costs. It runs on Windows Server 2019 Standard and is powered by an Intel Core i7 processor and 16GB of RAM for consistent performance in demanding environments. Additional features include seven hot-swappable 3.5" SATA drive bays, SSD-based OS installation, and multiple video output options—true HD, DVI, and DisplayPort (one active at a time). NDAA/TAA compliant and certified by UL, FCC, and CE, the DW-BJTR716140TS is backed by a 5-year limited warranty.
Key Features:
- 140TB HDD Included; 100TB usable in RAID6 configuration
- 4 Recording Licenses; includes DW-SPECTRUMLSC004 for rapid system readiness
- Recording Throughput; supports up to 420Mbps for RAID6-enabled environments
- Operating System; Windows Server 2019 Standard provides enterprise-class control
- Processor; Intel Core i7 ensures high-efficiency handling of video data streams
- Memory; 16GB RAM supports stable operation of multi-stream recording
- Drive Bays; fits up to 7 × 3.5" SATA hot-swappable drives for scalable storage
- Video Outputs; includes true HD, DVI, and DisplayPort (only one active at a time)
- Graphics; onboard Intel Graphics for seamless local display monitoring
- Remote Access; works with Windows, Linux Ubuntu, and macOS systems
- Mobile Apps; supports iOS and Android for remote video management
- System Compliance; ONVIF conformant, NDAA/TAA compliant for regulated installations
- Certifications; UL, FCC, CE approved for commercial and government environments
- Warranty; 5-year limited warranty ensures reliable long-term system protection
Downloads
Additional Information
|
Compliance:
|
NDAA Compliant
TAA (Trade Agreements Act)
|
|
Dimensions:
|
218.6 × 485.8 × 427.5 mm (8.6 × 19.12 × 16.83 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
7 SATA Ports
|
|
Max. Storage Capacity:
|
140TB
|
|
Pre-Installed Storage:
|
140 TB
|
|
Recorder Technology:
|
Video Server
|
