Digital Watchdog DW-HDSPOTMOD16 16-Channel DW Spot Monitoring Module
- SKU:
- DW-HDSPOTMOD16
- Maximum Purchase:
- 1000 units
Frequently bought together:
Description
Digital Watchdog DW-HDSPOTMOD16 16-Channel DW Spot Monitoring Module

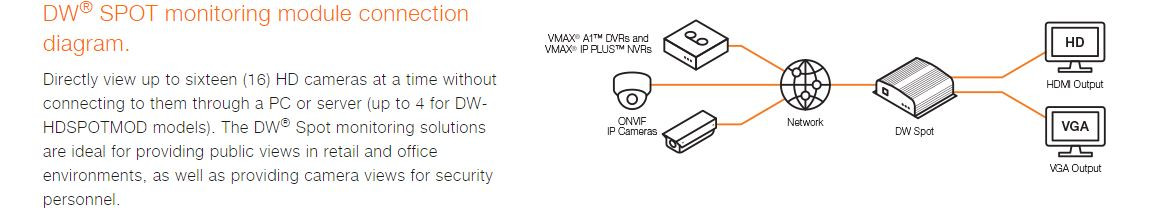

DW’s DW Spot monitoring module lets you directly view up to sixteen (16) HD cameras at a time without connecting to them through a PC or server. The DW-HDSPOTMOD16 is easy to use, automatically searching the network and identifying an unlimited number of ONVIF conformant IP cameras, Universal HD over Coax VMAX A1 DVRs (via RTSP) or VMAX IP Plus NVRs for local monitoring. The DW Spot monitoring module is ideal for providing public views in retail and office environments, as well as providing camera views for security personnel. The DW Spot can be configured remotely via a web browser and is backed by DW’s unbeatable 5 year warranty.
Key Features:
- Automatic network search and device registration
- Identifies an unlimited number of ONVIF conformant IP cameras, Universal HD over Coax® VMAX® A1 DVRs (via RTSP) or VMAX® IP Plus™ NVRs
- Live monitoring of up to 16 cameras view and 16-camera sequencing
- Up to 480fps display
- Drag and drop camera selection from DVRs and NVRs
- Remote configuration via the Internet
- Supports up to 5 Megapixel (2592x1944) resolution cameras, max. 80 Mbps throughput
- HD and VGA video outputs
- USB mouse included
- Velcro for easy mounting to the back of a monitor
- NDAA/TAA compliant
Specifications
OPERATIONAL |
||
Operating system
|
Embedded Linux®
|
|
IP camera
|
Input
|
16 channels
|
Protocol
|
ONVIF
|
|
Display
|
Speed
|
Up to 480fps
|
Max. throughput
|
80 Mbps
|
|
Screen mode
|
1,4,9 and 16-channel view mode, sequence
|
|
Video – in
|
IP cameras (up to 5MP, 2592 x 1944 resolution), Universal HD over Coax® VMAX® A1™ DVRs or VMAX® IP Plus™ NVRs
|
|
Video – out
|
Monitor
|
True HD or VGA
|
Resolution
|
800 x 600, 1024 x 768, 1280 x 1024, 1920 x 1080
|
|
LAN
|
1x 10/100/1000Mbps gigabit ethernet (RJ45)
|
|
Protocols
|
Fixed IP, DHCP & DDNS
|
|
Network function
|
Live monitoring
|
|
Time synchronization by NTP server
|
||
Remote management
|
Web (IE)
|
System settings
|
System recovery after power failure
|
Auto-reboot and log file system
|
|
Advanced functions
|
Firmware upgrade by USB and CMS
|
|
Import & export settings
|
||
Warning alarm for system over-heating
|
||
Digital zoom
|
||
System operation
|
USB mouse
|
|
ENVIROMENTAL |
||
Power
|
DC12V
|
|
Operating temperature
|
41°F ~ 104°F (5°C ~ 40°C)
|
|
Operating humidity
|
20–90% RH (non–condensing)
|
|
Dimensions
|
5.47" x 4.84" x 1.25" Inch (139 x 123 x 32 mm)
|
