Description

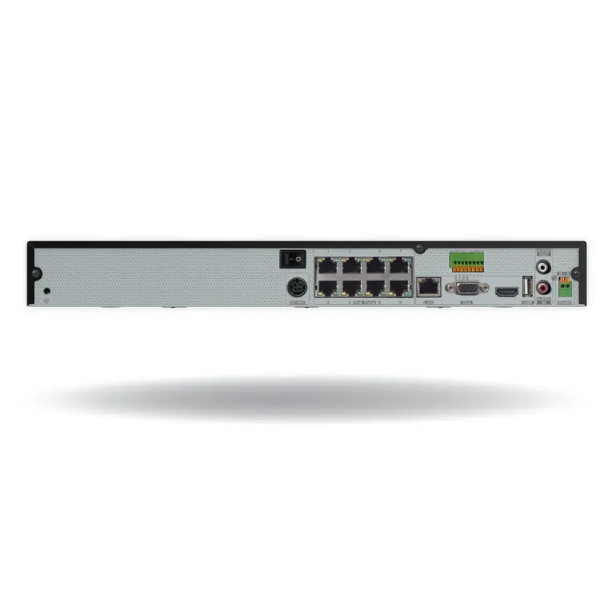

Digital Watchdog DW-VG41212T8P VMAX IP G4 8-channel PoE NVR with 4 bonus channels with 12TB Hard Drive
The VMAX® IP G4™ is an NDAA and TAA compliant, easy to use embedded PoE network video recorder (NVR) that allows you to go from power up to monitoring in minutes! Available with 8 Power over Ethernet (PoE) ports and expandable to 12 cameras, the NVRs can record and manage single-sensor IP cameras up to 4K resolution and comes with up to 32TB internal storage.
Key Features:
- Complete installation, setup and camera configuration in minutes!
- CCIP™ system encryption via TLS protects your surveillance system from out of network attacks
- Record and manage single-sensor IP cameras at real-time 30fps up to 4K (3840×2160), with 80Mbps maximum throughput
- Local power for up to 8 IP cameras via resident PoE+ switch
- DW Witness™ turns a smartphone or tablet into a surveillance camera
- PathFinder™ easy end-to-end remote connection with NAT Traversal (STUN/TURN) support
- Automatic device discovery
- Compatible with ONVIF cameras
- 0-32TB storage options
- Transfer real-time data using Real Time Streaming Protocol (RTSP)
- Snapshot Notify™: Interval camera image verification sent to an email
- Remote management with C3™ CMS for Windows® and Mac®®
- Event camera group recording
- System analysis with real-time system, PoE and network status monitoring
- Event notifications via email, text and C3™ CMS and push notifications to mobile devices
- Mobile Application for iOS® and Android® devices
- Dual-stream recording
- Easy drag and drop camera management
- Instant backup during playback
- True HD and VGA simultaneous output support
- Compatible with DW® Spot™ Monitoring module for Public View Monitors
- 1 audio input, 1 audio output
- 4 sensor inputs, 1 relay output
- Advanced H.265/H.264 Linux embedded NVR
- NVR calculation and auto-recording configuration
- Screen saver to protect monitor screen
- Import/export configuration between multiple NVRs
- Auto or manual firmware upgrade available
- NDAA/TAA compliant
- 5 year limited warranty
Downloads
Quick Start Guide
Digital-Watchdo-DW-VG41212T8P-Quick-Start-Guide-A1
User Manual
Digital-Watchdo-DW-VG41212T8P-User-Manual-A1
Compatible products
Video recorders will require additional parts in order to perform their function. CCTV Power supply, PoE Switches, hard drives, wireless mouse, recorder mount accessories and cables are just few to be mentioned. If you have any questions to complete your security camera system, please check with our sales team first. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.
Additional Information
|
4K Support:
|
4K Supported
|
|
Alarm Input:
|
4 Channel
|
|
Alarm Output:
|
1 Channel
|
|
Audio Input:
|
1x Channel
|
|
Audio Output:
|
1x Channel
|
|
Certifications:
|
CE
FCC
KCC
NDAA
|
|
Channel Capacity:
|
12 Channels
|
|
Color:
|
Black
|
|
Compatible Integration (API):
|
ONVIF Profile S
|
|
Compliance:
|
TAA (Trade Agreements Act)
NDAA Compliant
|
|
Compression:
|
H.264
H.265
|
|
Connection Type:
|
Wired
|
|
Dimensions:
|
380 x 268 x 45 mm (14.96 x 10.55 x 1.77 in)
|
|
Environmental:
|
Indoor
|
|
Hard Drive Ports:
|
2 SATA Ports
|
|
Max Power Consumption:
|
120 Watts
|
|
Max. FPS and Resolution:
|
30fps at 3840 x 2160 (4K)
|
|
Max. Recording Resolution:
|
8MP (4K)
|
|
Max. Storage Capacity:
|
32 TB
|
|
Mobile Apps:
|
DW Mobile Plus
DW Witness
|
|
Mounting:
|
Rack Mount
|
|
Network Interface:
|
1x RJ-45 1000 Mbps Port
|
|
Number of PoE Ports:
|
8 PoE Ports
|
|
PoE Standards:
|
IEEE 802.3at
|
|
Power Budget:
|
96 Watt
|
|
Power Supply:
|
48 VDC
|
|
Power for each port:
|
30W
|
|
Pre-Installed Storage:
|
12 TB
|
|
Product Series:
|
Digital Watchdog VMAX IP G4 Series
|
|
Recorder Technology:
|
Network Video Recorder (NVR)
|
|
Serial Interface:
|
1x RS485
|
|
Special Recorder Features:
|
S.M.A.R.T. Technology (Self-Monitoring Analysis and Reporting Technology for HDD)
|
|
USB Interface:
|
2x USB
|
|
Video Output:
|
1x VGA
1x HDMI
|
|
Warranty:
|
5-year Manufacturer Warranty
|
