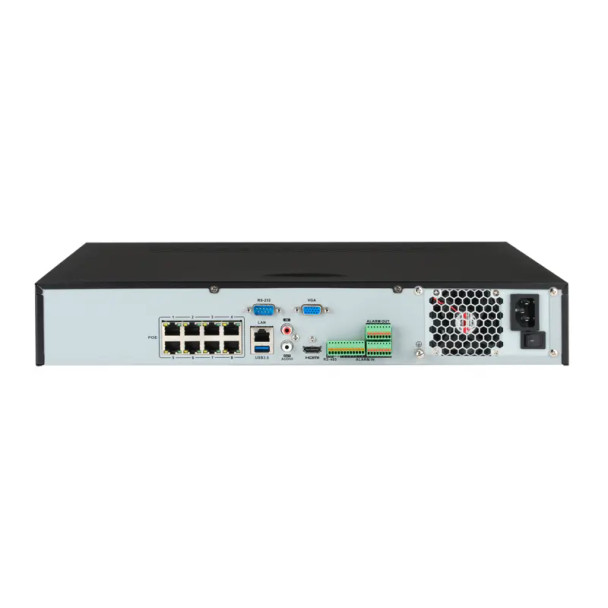

Digital Watchdog DW-VP126T8P 8 Channel PoE Network Video Recorder with 6TB HDD included

Part Number: DW-VP126T8P
Write a Review
  • Digital Watchdog DW-VP126T8P 8 Channel PoE Network Video Recorder with 6TB HDD included
  • Digital Watchdog DW-VP126T8P 8 Channel PoE Network Video Recorder with 6TB HDD included
  • Digital Watchdog DW-VP126T8P 8 Channel PoE Network Video Recorder with 6TB HDD included
$1,276.52
Free shipping over $300 Free Shipping
Technical Support Technical Support
5 Year Warranty 5 Year Warranty
  • Compression : H.264, H.265,
  • Pre-Installed Storage : 6 TB
  • Video Output : 1x HDMI 1x VGA
  • Max. Recording Resolution : 4K
  • Hard Drive Ports : 4 SATA Ports
  • Max. Storage Capacity : 32 TB Storage Capacity
  • Color : Black
  • Environmental : Indoor
  • Number of PoE Ports : 8 PoE Ports
  • Power Budget : 360 Watt

Description

Digital Watchdog DW-VP126T8P 8 Channel PoE Network Video Recorder

The VMAX® IP Plus™ is an easy to use PoE NVR that allows you to go from power up to monitoring in less than three minutes! Combine with the DW Witness™ app to turn the camera on a smartphone or tablet into a surveillance camera that can be viewed and recorded on the NVR. Available with 8 PoE ports (expandable to 12 cameras), the NVRs can record and manage single-sensor IP cameras up to 4K, with 80Mbps maximum throughput.

Key features:

  • Complete installation, setup and camera configuration in under three minutes!
  • CCIP™ system encryption protects your surveillance system from out of network attacks
  • Record and manage single-sensor IP cameras at real-time 30fps up to 4K (3840×2160), with 80Mbps maximum throughput
  • Local power for up to 8 IP cameras via resident PoE switch
  • myDW® Cloud Management Services
  • DW Witness™ turns a smartphone or tablet into an additional surveillance camera
  • PathFinder™ Peer-to-Peer (P2P) remote connection
  • Automatic device discovery
  • Control any ONVIF™ camera’s setup and features remotely
  • 9TB HDD included
  • Snapshot Notify™: programmable interval camera image verification sent to an email
  • Remote management with C3™ CMS software up to 288 channels
  • Event notifications via email, text and C3™ CMS and push notifications to mobile devices
  • Mobile Application for iOS® and Android® devices and Apple TV®
  • Dual-stream recording
  • Easy drag and drop camera management
  • Instant backup during playback
  • 4K output for local live and playback display
  • Complete analysis with real-time system, network and PoE monitoring
  • True HD and VGA simultaneous output support
  • 16 sensor inputs, 4 alarm relay outputs
  • Advanced H.265, H.264 Linux embedded NVR
  • NVR calculation and auto-recording configuration
  • Add public view monitors with Spot Monitoring Modules
  • Help menu on major functions
  • Auto or manual firmware upgrade available
  • Screen saver to protect monitor screen
  • Import/export configuration between multiple NVRs
  • USB mouse and GUI control
  • 5 year limited warranty
Compatible Accessories:
  • DW-VR19E 19in rack mount ears
  • DW-VP16RE 19in rack mount ears
  • DWSP-VACREMOTE Remote control for VMAX recorders
  • DW-KB100 System Control Keyboard
  • DW-POE896M PoE Switch 8 Channel Accessory
The entire system can be setup and configured in less than four minutes from power up. Using the user-friendly Startup Wizard, configure the NVR’s main functions, locate and register all your cameras and set them to record in less than four minutes and with no need for technical background!
The DW Witness™ app for iOS® and Android® KitKat instantly turns your smartphone or tablet into a video surveillance camera. Press the button on the app and start transmitting live video to your VMAX IP Plus™. It's a "black box" for personnel on patrol. (REQUIRES CURRENT VMAX IP PLUS™ FIRMWARE.)
Camera streams are protected when a user ID and password are used with an NVR. The additional CCIP™ (Closed Circuit IP) encryption is activated when the VMAX IP Plus™ system sends a request for an encrypted stream from the camera. The camera then encrypts its RTSP stream a second time, using the encryption's user ID and password. The result is a secured and encrypted RTSP stream that can be read only by the requesting VMAX IP Plus™ NVR.
Monitor your complete system, including the network, communication, CPU and performance locally on the NVR for real-time analysis of your NVR, cameras and complete surveillance solution.

MODEL #

SUPPORTED CAMERAS

STORAGE SIZE

DW-VP128P Up tp 12 IP cameras No local storage

DW-VP123T8P

Up to 12 IP cameras

3TB

DW-VP124T8P

Up to 12 IP cameras

4TB

DW-VP126T8P

Up to 12 IP cameras

6TB

DW-VP129T8P Up to 12  IP cameras 9TB
DW-VP1212T8P Up to 12 IP cameras 12TB
DW-VP1216T8P Up to 12 IP cameras 16TB
DW-VP1218T8P Up to 12 IP cameras 18TB
DW-VP1224T8P Up to 12 IP cameras 24TB
DW-VP1232T8P Up to 12 IP cameras 32TB



Compatible products

Video recorders will require additional parts in order to perform their function. CCTV Power supply, PoE Switches, hard drives, wireless mouse, recorder mount accessories and cables are just few to be mentioned. If you have any questions to complete your security camera system, please check with our sales team first. You can call us at (866) 441-2288 or email us at sales@a1securitycameras.com with any design questions.

Additional Information

4K Support:
4K Supported
Alarm Input:
16 Channel
Alternative SKUs:
DW-VP12xT8P
Audio Input:
1x Channel
Audio Output:
1x Channel
Certifications:
CE FCC RoHS KCC WEEE UL Listed
Channel Capacity:
12 Channels
Color:
Black
Compatible Integration (API):
ONVIF
Compression:
H.264 H.265
Connection Type:
Wired
Dimensions:
440x 397.8 x 70 mm (17.32 x 15.66 x 2.79 in)
Environmental:
Indoor
Hard Drive Ports:
4 SATA Ports
LED Indicator:
Status LED
Max. Recording Resolution:
4K
Max. Storage Capacity:
32 TB
Mobile Apps:
DW Mobile Plus DW Witness
Mounting:
Rack Mount
Network Interface:
1x RJ-45
Number of PoE Ports:
8 PoE Ports
Operating Humidity:
20% to 90% RH
Operating System:
Embedded LINUX
Operating Temperature:
5 °C to 40 °C (41 °F to 104 °F)
PoE Standards:
IEEE 802.3at
Power Budget:
360 Watt
Power Supply:
110 to 240 V AC
Power for each port:
30W
Pre-Installed Storage:
6 TB
Product Series:
Digital Watchdog VMAX IP Plus Series
Rack Unit (U):
1.5U
Recorder Technology:
Network Video Recorder (NVR)
Relay Output:
4 Channels
Serial Interface:
1x RS485 1x RS232
USB Interface:
1x USB 2.0 1x USB 3.0
Video Output:
1x HDMI 1x VGA
Warranty:
5-year Manufacturer Warranty
